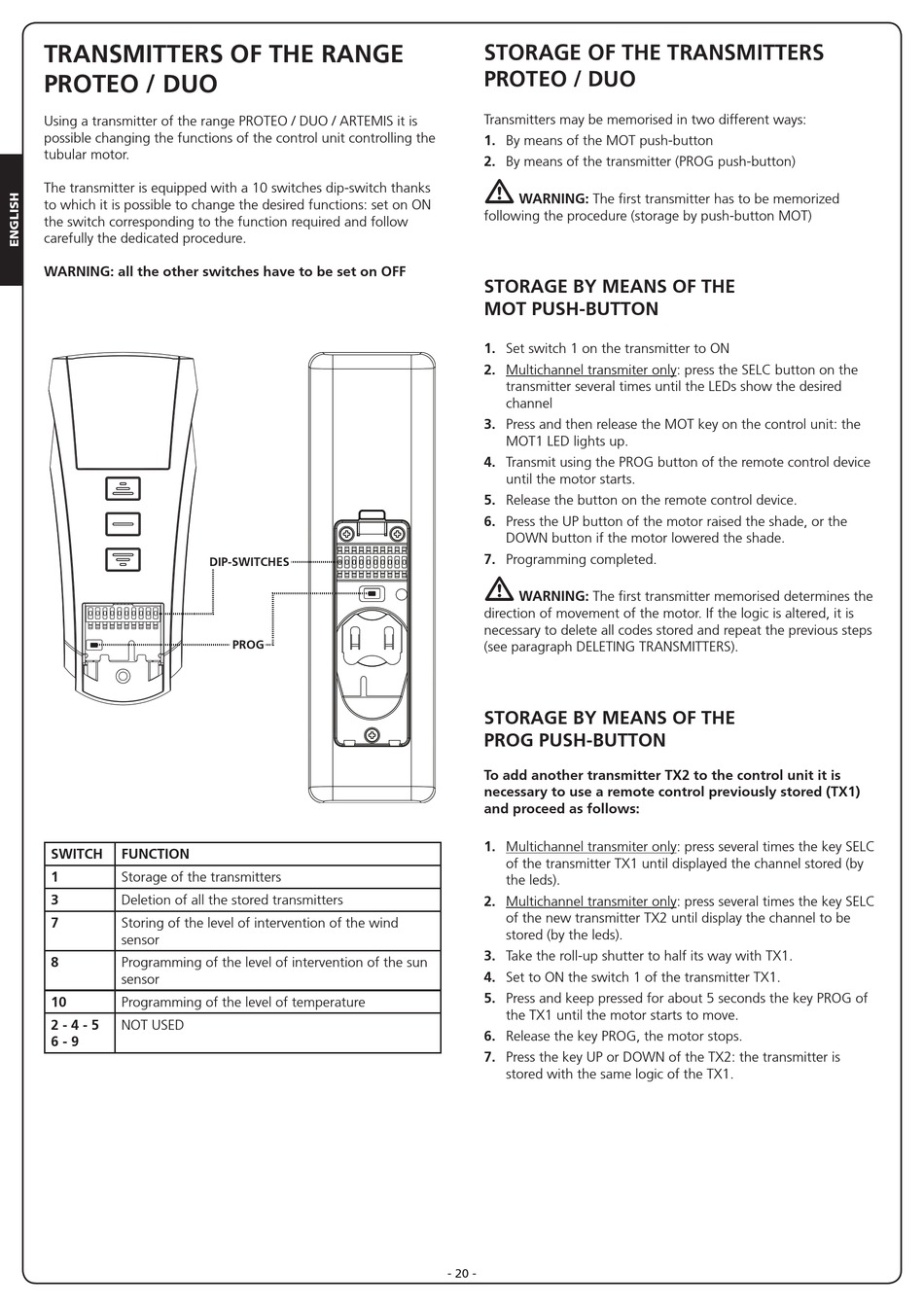

V2 CU5 Handbuch Seite 20

TRANSMITTERS OF THE RANGE
PROTEO / DUO
Using a transmitter of the range PROTEO / DUO / ARTEMIS it is
possible changing the functions of the control unit controlling the
tubular motor.
The transmitter is equipped with a 10 switches dip-switch thanks
to which it is possible to change the desired functions: set on ON
the switch corresponding to the function required and follow
carefully the dedicated procedure.
WARNING: all the other switches have to be set on OFF
DIP-SWITCHES
SWITCH FUNCTION
1
Storage of the transmitters
3 Deletion of all the stored transmitters
7
Storing of the level of intervention of the wind
sensor
8
Programming of the level of intervention of the sun
sensor
10 Programming of the level of temperature
2 - 4 - 5 NOT USED
6 - 9
PROG
STORAGE OF THE TRANSMITTERS
PROTEO / DUO
Transmitters may be memorised in two different ways:
1. By means of the MOT push-button
2. By means of the transmitter (PROG push-button)
m
WARNING: The first transmitter has to be memorized
following the procedure (storage by push-button MOT)
STORAGE BY MEANS OF THE
MOT PUSH-BUTTON
1. Set switch 1 on the transmitter to ON
2. Multichannel transmiter only: press the SELC button on the
transmitter several times until the LEDs show the desired
channel
3. Press and then release the MOT key on the control unit: the
MOT1 LED lights up.
4. Transmit using the PROG button of the remote control device
until the motor starts.
5. Release the button on the remote control device.
6. Press the UP button of the motor raised the shade, or the
DOWN button if the motor lowered the shade.
7. Programming completed.
m
WARNING: The first transmitter memorised determines the
direction of movement of the motor. If the logic is altered, it is
necessary to delete all codes stored and repeat the previous steps
(see paragraph DELETING TRANSMITTERS).
STORAGE BY MEANS OF THE
PROG PUSH-BUTTON
To add another transmitter TX2 to the control unit it is
necessary to use a remote control previously stored (TX1)
and proceed as follows:
1. Multichannel transmiter only: press several times the key SELC
of the transmitter TX1 until displayed the channel stored (by
the leds).
2. Multichannel transmiter only: press several times the key SELC
of the new transmitter TX2 until display the channel to be
stored (by the leds).
3. Take the roll-up shutter to half its way with TX1.
4. Set to ON the switch 1 of the transmitter TX1.
5. Press and keep pressed for about 5 seconds the key PROG of
the TX1 until the motor starts to move.
6. Release the key PROG, the motor stops.
7. Press the key UP or DOWN of the TX2: the transmitter is
stored with the same logic of the TX1.
- 20 -
