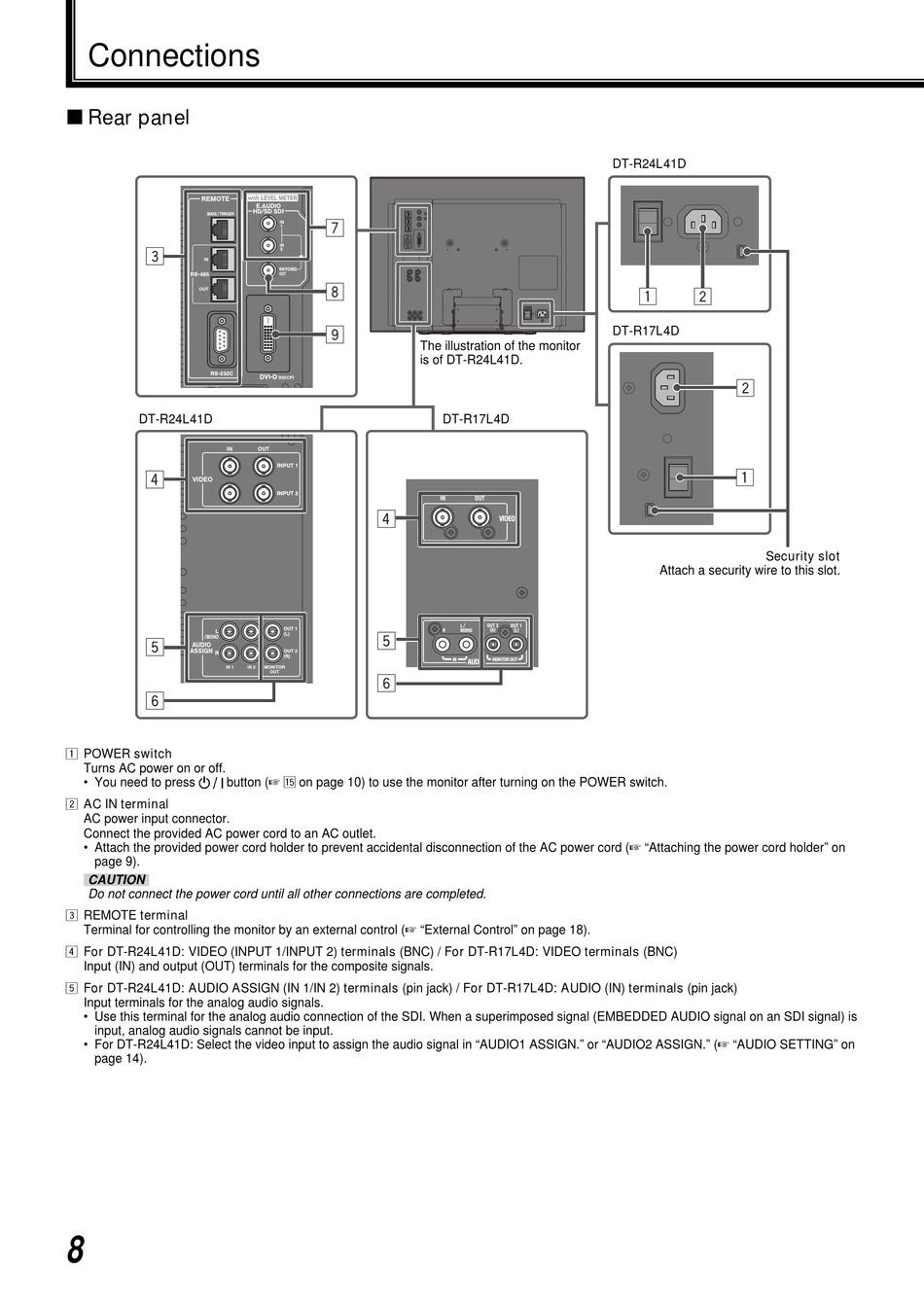

Connections

Rear panel

DT-R24L41D
1 POWER switch
Turns AC power on or off.
• You need to press button (☞ t on page 10) to use the monitor after turning on the POWER switch.
2 AC IN terminal
AC power input connector.
Connect the provided AC power cord to an AC outlet.
• Attach the provided power cord holder to prevent accidental disconnection of the AC power cord (☞ "Attaching the power cord holder" on
page 9).
CAUTION
Do not connect the power cord until all other connections are completed.
3 REMOTE terminal
Terminal for controlling the monitor by an external control (☞ "External Control" on page 18).
4 For DT-R24L41D: VIDEO (INPUT 1/INPUT 2) terminals (BNC) / For DT-R17L4D: VIDEO terminals (BNC)
Input (IN) and output (OUT) terminals for the composite signals.
5 For DT-R24L41D: AUDIO ASSIGN (IN 1/IN 2) terminals (pin jack) / For DT-R17L4D: AUDIO (IN) terminals (pin jack)
Input terminals for the analog audio signals.
• Use this terminal for the analog audio connection of the SDI. When a superimposed signal (EMBEDDED AUDIO signal on an SDI signal) is
input, analog audio signals cannot be input.
• For DT-R24L41D: Select the video input to assign the audio signal in "AUDIO1 ASSIGN." or "AUDIO2 ASSIGN." (☞ "AUDIO SETTING" on
page 14).
8
The illustration of the monitor
is of DT-R24L41D.
DT-R17L4D
DT-R24L41D
DT-R17L4D
Security slot
Attach a security wire to this slot.
