* Above electrical wiring diagram only for your reference, please subject machine posted the wiring diagram.

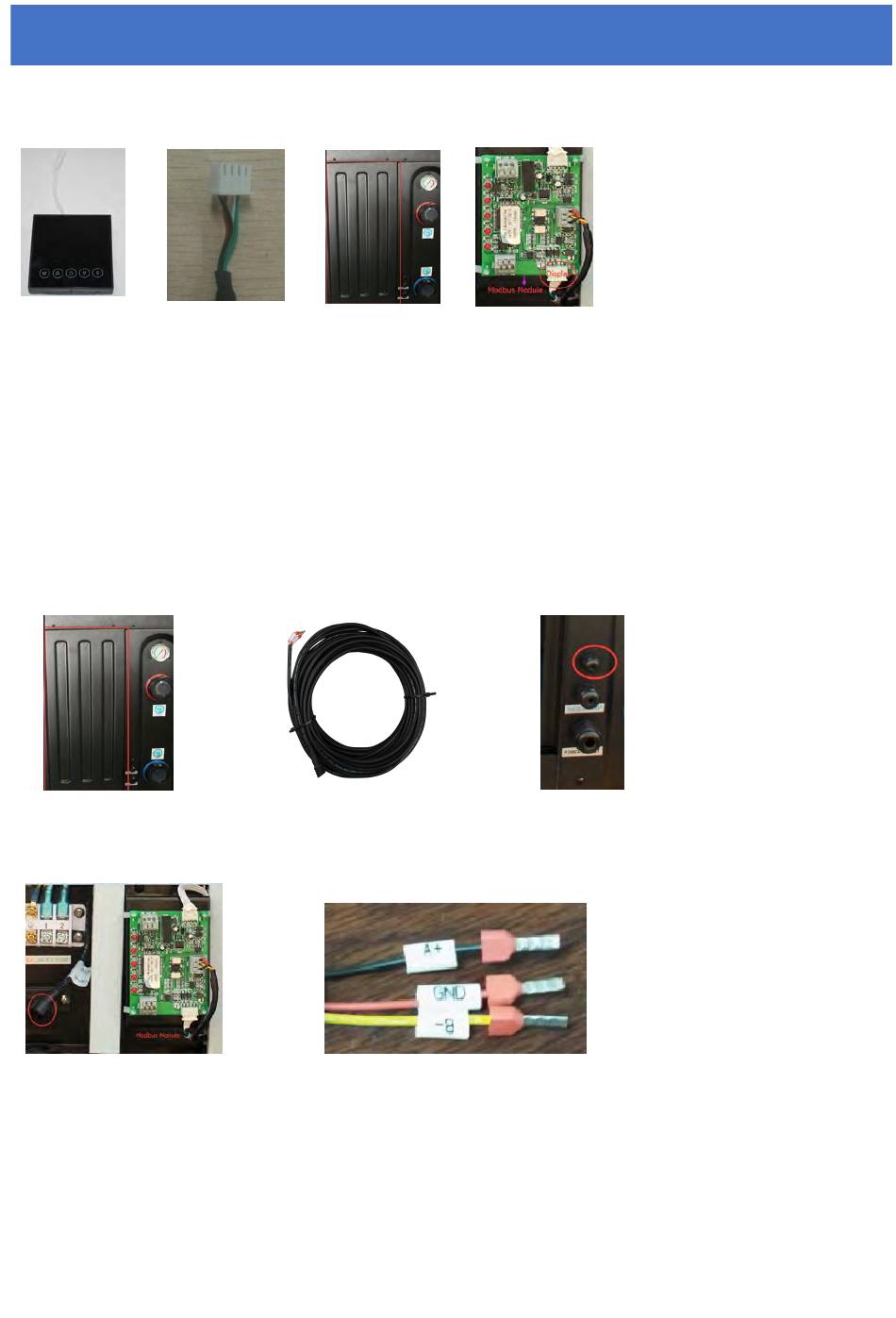

6.6 Installation of the remote display
Photo(1)
Photo(2)
- The side with plug connects with the control panel (photo1)
- The other side of the signal wire. (photo2)
- Open the cover of the terminal box and pass through it the cable of the remote screen. (photo3,)
- Insert the wiring into the designated position (upper right corner) on the Modbus Module. (photo4)
6.7 Installation of the Modbus Signal Wire
Photo(5)
Photo(8)
- Open the Back panel (photo5)
- Take the Modbus signal wire from the accessories (photo 6) and put the one end through the hole (Photo 7)
- Put the round end of the signal wire into the designated position. (photo 8)
- Three wire terminal :"A+" ,"B- ", "GND" (Photo 9)
6.
Electrical
Wiring
6.
6.
Electrical
Electrical
Wiring
Wiring
Photo(3)
Photo(6)
Photo(9)
- 27 -
Photo(4)
Photo(7)
