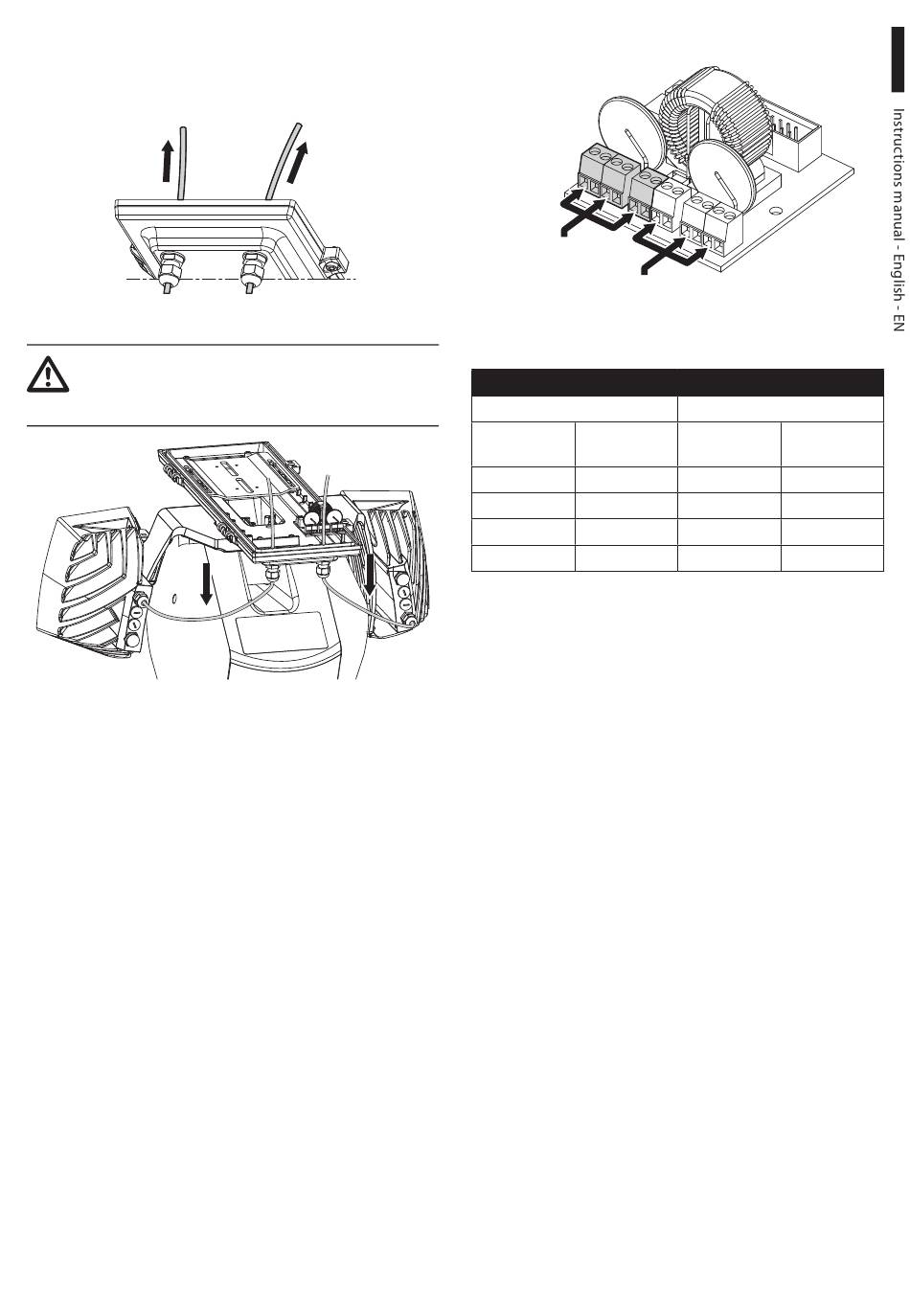

7.1.5 Connection of the LED infrared
illuminators.
Open the housing (Fig. 9, page 15).
25cm
Fig. 21
To ensure the safety and the correct
operation of the unit do not leave a surplus
of the cable externally.
Fig. 22
Connect the cables as shown in the figure.
25cm
Fig. 23

CONNECTION OF THE LED INFRARED ILLUMINATORS.

Left illuminator
Reference on
the board
WH
BK
A1
B1
Tab. 4
Left illuminator
Cable color
White
Black
Green
Red
Right illuminator
Right illuminator
Reference on Cable color
the board
WH White
BK Black
A2 Green
B2 Red
19
