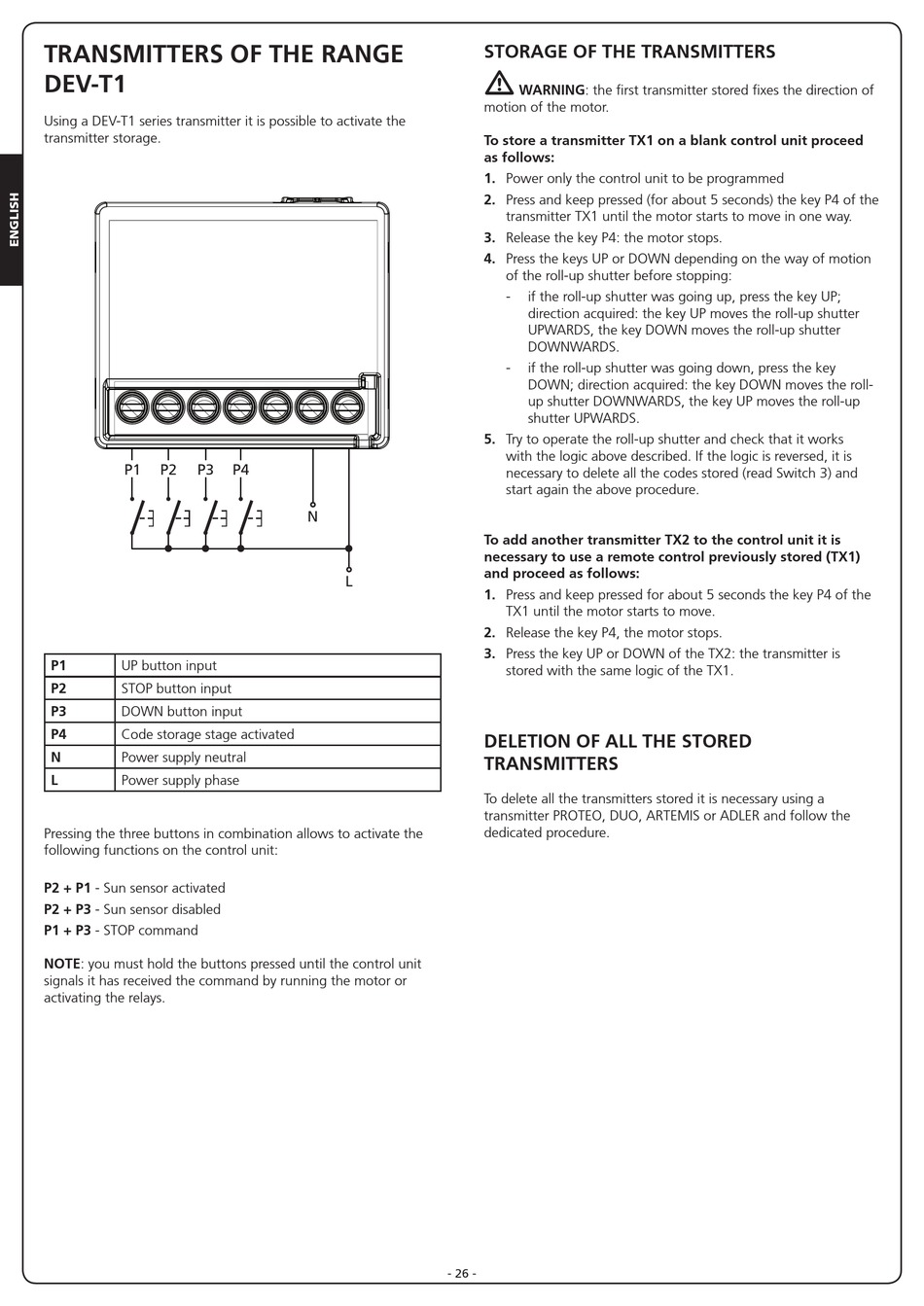

TRANSMITTERS OF THE RANGE
DEV-T1
Using a DEV-T1 series transmitter it is possible to activate the
transmitter storage.
P1 P2 P3
P1 UP button input
P2
STOP button input
P3 DOWN button input
P4
Code storage stage activated
N Power supply neutral
L Power supply phase
Pressing the three buttons in combination allows to activate the
following functions on the control unit:
P2 + P1 - Sun sensor activated
P2 + P3 - Sun sensor disabled
P1 + P3 - STOP command
NOTE: you must hold the buttons pressed until the control unit
signals it has received the command by running the motor or
activating the relays.
P4
N
L
STORAGE OF THE TRANSMITTERS
m
WARNING: the first transmitter stored fixes the direction of
motion of the motor.
To store a transmitter TX1 on a blank control unit proceed
as follows:
1. Power only the control unit to be programmed
2. Press and keep pressed (for about 5 seconds) the key P4 of the
transmitter TX1 until the motor starts to move in one way.
3. Release the key P4: the motor stops.
4. Press the keys UP or DOWN depending on the way of motion
of the roll-up shutter before stopping:
- if the roll-up shutter was going up, press the key UP;
direction acquired: the key UP moves the roll-up shutter
UPWARDS, the key DOWN moves the roll-up shutter
DOWNWARDS.
- if the roll-up shutter was going down, press the key
DOWN; direction acquired: the key DOWN moves the roll-
up shutter DOWNWARDS, the key UP moves the roll-up
shutter UPWARDS.
5. Try to operate the roll-up shutter and check that it works
with the logic above described. If the logic is reversed, it is
necessary to delete all the codes stored (read Switch 3) and
start again the above procedure.
To add another transmitter TX2 to the control unit it is
necessary to use a remote control previously stored (TX1)
and proceed as follows:
1. Press and keep pressed for about 5 seconds the key P4 of the
TX1 until the motor starts to move.
2. Release the key P4, the motor stops.
3. Press the key UP or DOWN of the TX2: the transmitter is
stored with the same logic of the TX1.
DELETION OF ALL THE STORED
TRANSMITTERS
To delete all the transmitters stored it is necessary using a
transmitter PROTEO, DUO, ARTEMIS or ADLER and follow the
dedicated procedure.
- 26 -
