System type Monitored is used for systems where there are
always personnel to monitor the sauna. No calendar program-
ming or delayed start can be used with this choice.
System type Private is used for private systems. Max. sauna
time is 6 hours. Delayed start can be used with this choice,
but not calendar programming.
NOTE! A door contact can be used for all system
types. The contact will detect if the sauna door is
opened after the last sauna has been taken. NB:
timer-controlled systems will require a check of the
sauna and confirmation on the control panel.
8. Enter Bathtime limit (maximum time depends on system
type).
9. Enter Door contact (Yes, No).
10. Enter Auto fill and empty (automatic water filling and empty-
ing - applies to the Expression heater).
The control panel in general
The control panel is automatically activated when you pass your
hand over it.
Use UP (see Figure 4Figure 6, Page 3 pos 6) and
DOWN(pos 9) to scroll through the menus.
Use UP and DOWN to increase/decrease a value when entering
data.
Confirm menu choices using OK (pos 8).
12
11
13 14 15
19
20

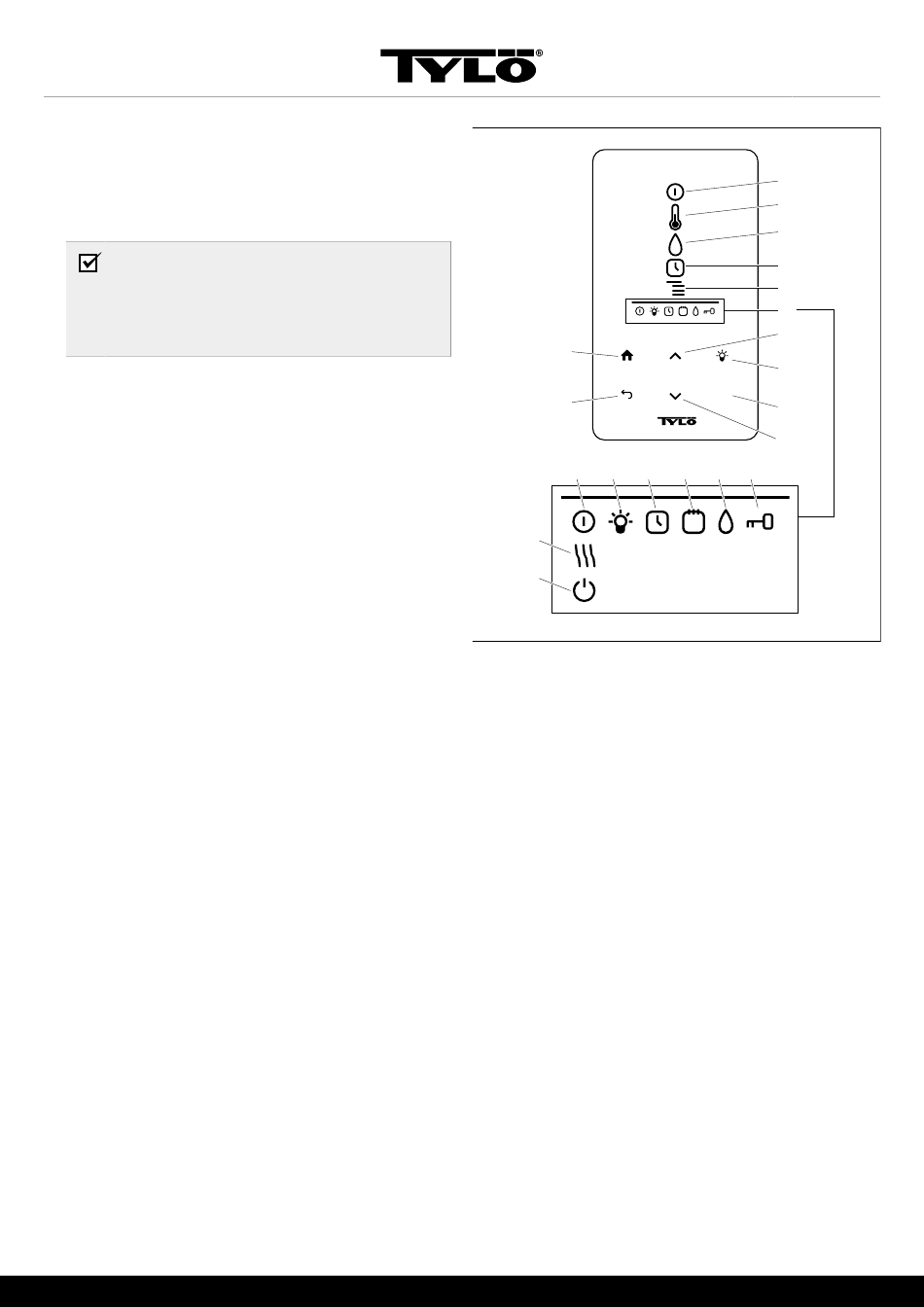

Figure 4: Main menu
1. ON/OFF
2. TEMPERATURE
3. HUMIDITY: Set humidity
4. TIMER: Program start time
5. SETTINGS
6. STATUS BAR: Shows the status of certain functions
(13-20)
7. UP: One step up in the menu or increase value when enter-
ing data
8. LIGHT
9. OK: Confirm choice
10. DOWN: One step down in the menu or decrease value
when entering data
11. BACK: Go one step back in the menu or when entering
data
12. HOME: Return to main menu
13. ON/OFF STATUS: Shows that the sauna/steam bath is on
14. LIGHT STATUS: Shows that the light is on
15. TIMER STATUS: Shows that the control panel is pro-
grammed for delayed start
16. CALENDAR STATUS: Shows that the system is calen-
dar-programmed
17. HUMIDITY STATUS: Shows approximate reservoir level
Full symbol = full reservoir, half-full symbol = half reservoir
and flashing empty symbol = empty reservoir. Only applies
to heaters with manual water filling.
18. LOCKED STATUS: Shows that the panel is locked
19. DRYING STATUS: Shows that the system is in Dryingset-
ting, replaces ON/OFF STATUS
20. STANDBY STATUS: Shows that the system is in Stand-
bysetting, replaces ON/OFF STATUS
1
2
3
4
5
6
7
8
OK
9
10
16 17 18
3
