SECTION 4—COMPRESSOR OPERATION
Compressor
Cylinder
Gauge
Cylinder
Cylinder
Gauge
NOTE: For
clarity, fillport
covers are not
shown.
Compressor
Cradle

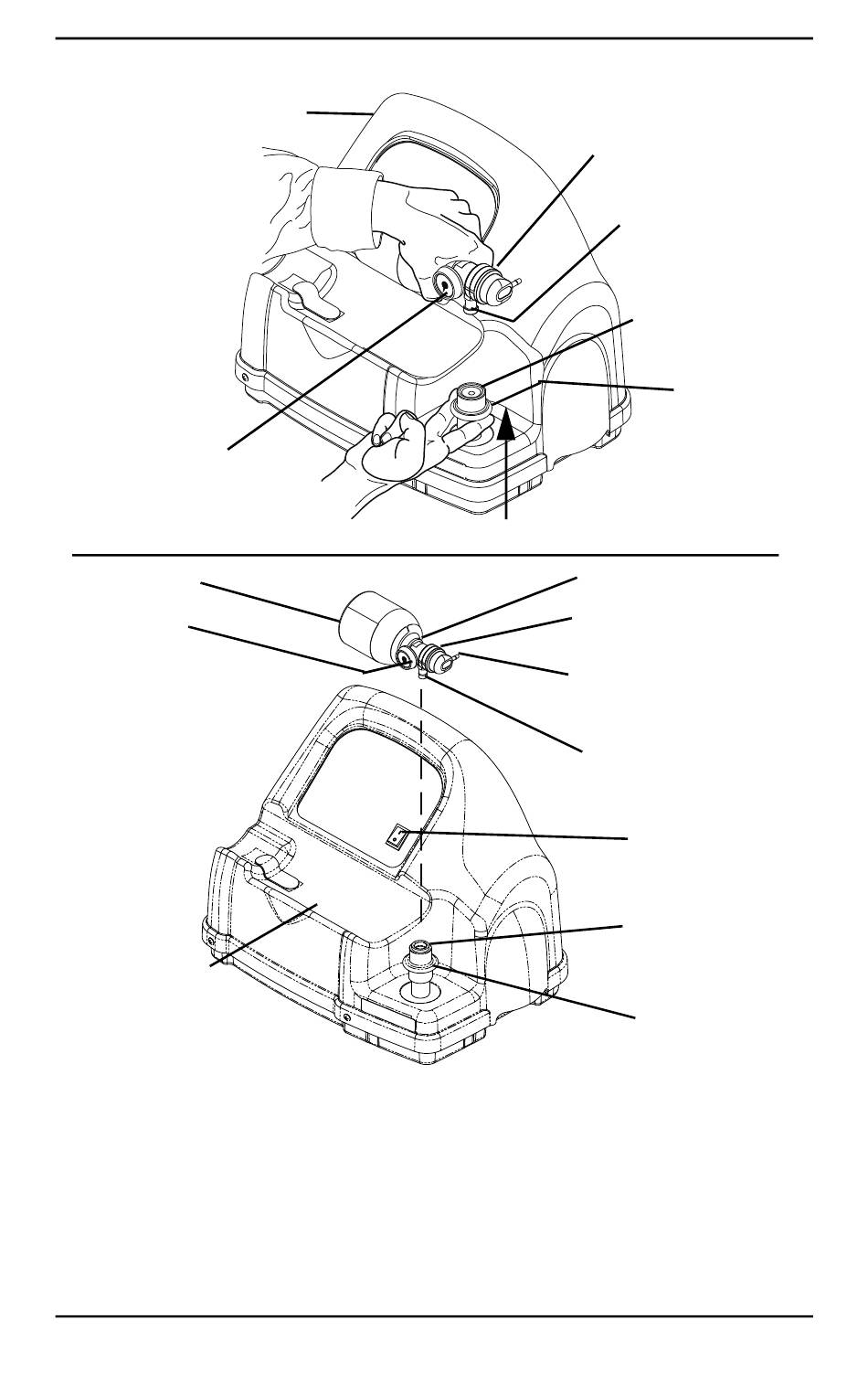

FIGURE 4.2 Connecting the Cylinder to the Compressor
HomeFill II Compressor
®
Cylinder/Regulator
PULL UP
Outlet (Cannula)
24
Assembly
Cylinder
Fillport
Connector
Fillport
Outer Ring
(Sleeve)
Regulator
Regulator Flow Dial
Connection
Cylinder Fillport
Power
Switch
Connector
Fillport
Outer Ring
(Sleeve)
Part No 1145804
