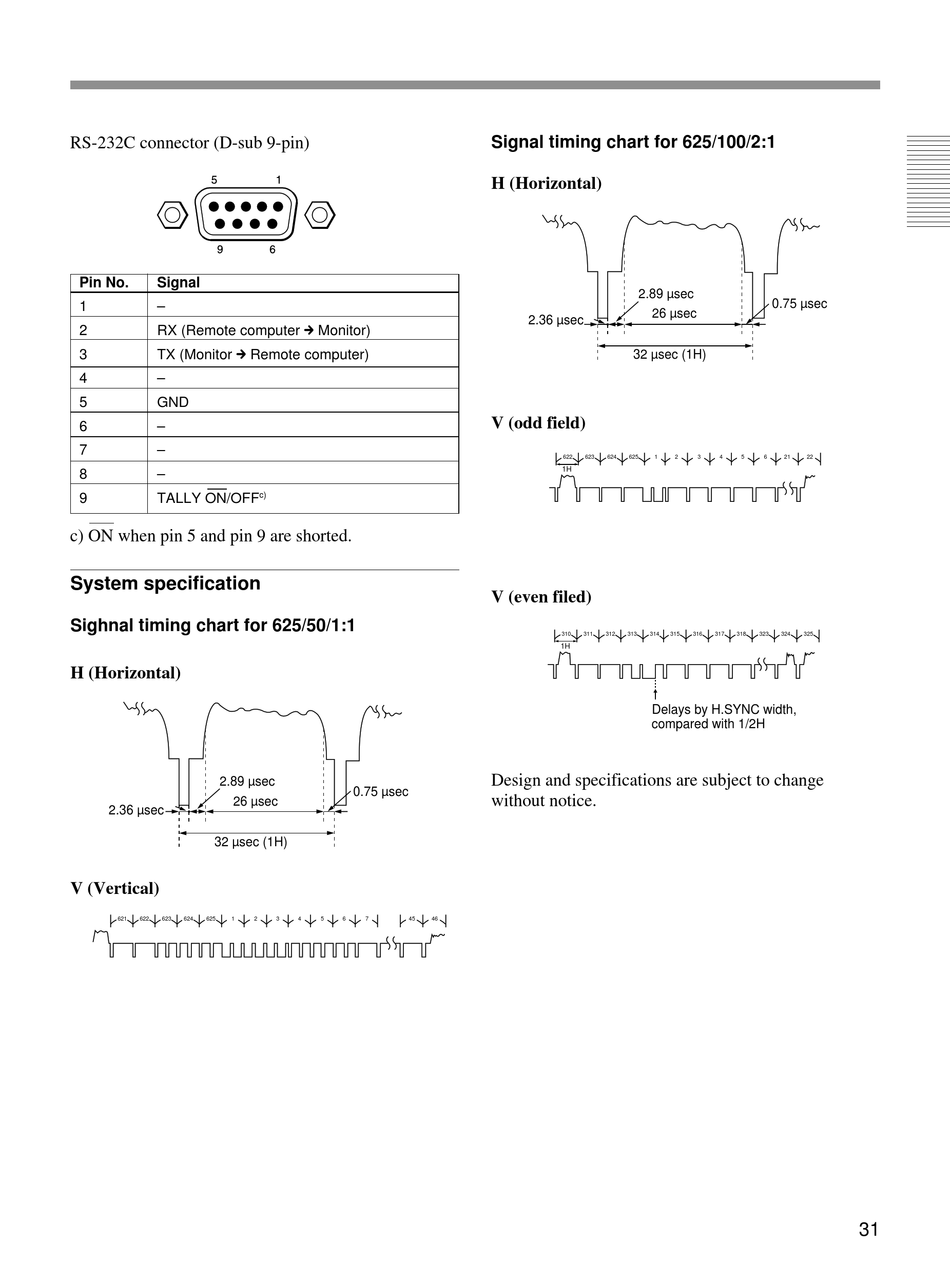

RS-232C connector (D-sub 9-pin)
Pin No. Signal
1 –
RX (Remote computer m Monitor)
2
3 TX (Monitor m Remote computer)
4 –
5 GND
6 –
7 –
8 –
9 TALLY ON/OFF
c) ON when pin 5 and pin 9 are shorted.

System specification

Sighnal timing chart for 625/50/1:1
H (Horizontal)
2.89 µsec
26 µsec
2.36 µsec
32 µsec (1H)
V (Vertical)
621 622 623 624 625 1
c)
0.75 µsec
2 3 4 5 6 7 45 46
Signal timing chart for 625/100/2:1
H (Horizontal)
2.89 µsec
26 µsec
2.36 µsec
32 µsec (1H)
V (odd field)
622 623 624 625 1
1H
V (even filed)
310 311 312 313 314 315
1H
Delays by H.SYNC width,
compared with 1/2H
Design and specifications are subject to change
without notice.
0.75 µsec
2 3 4 5 6 21 22
316 317 318 323 324 325
31
