7.5.1 Operator interface display

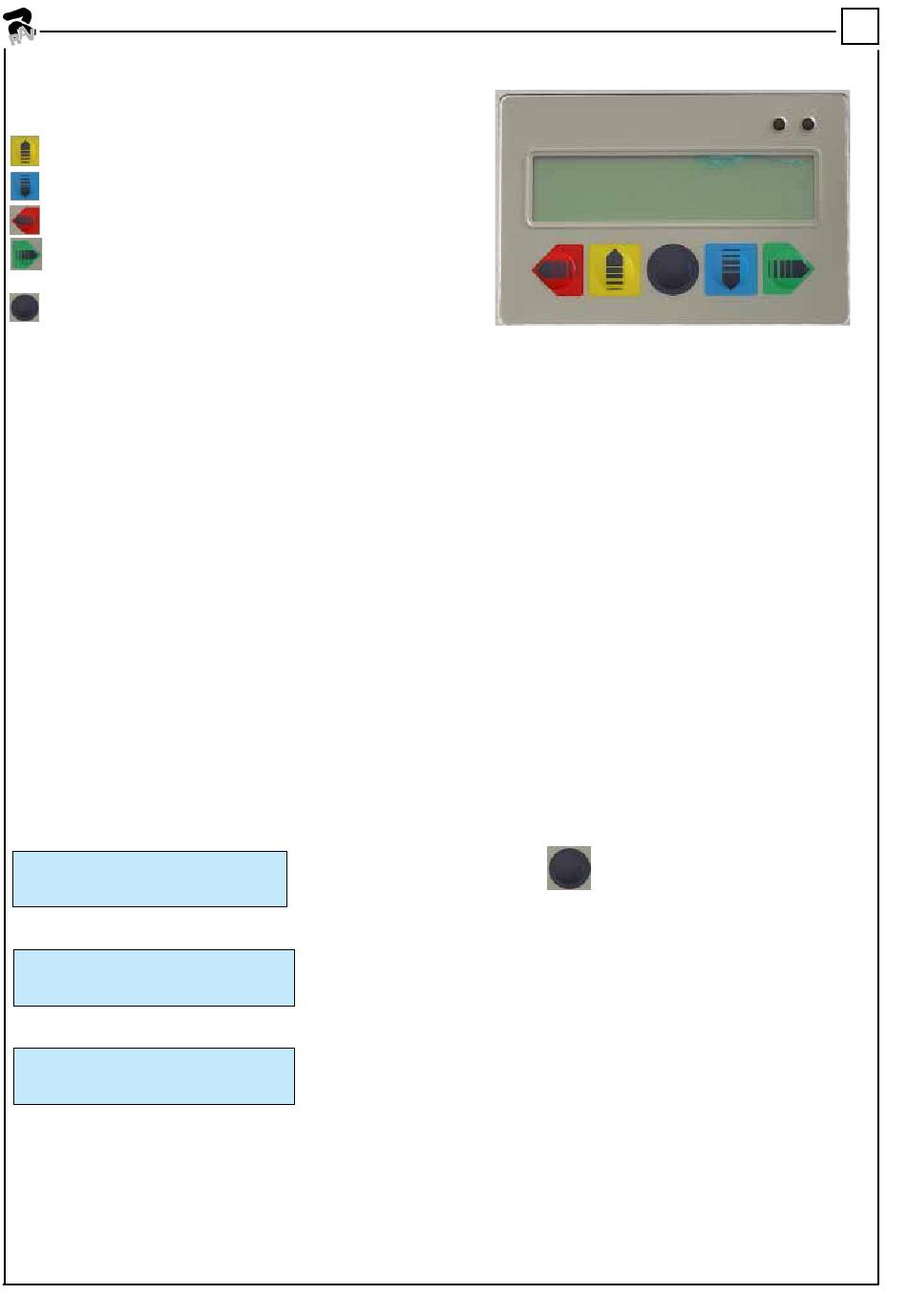

Identification of display controls:
D - Display
(yellow color) - Button for scrolling through the menu (UP)
(blue color) - Button for scrolling through the menu (DOWN)
(red color) - Button for quick scrolling through the sub-menu (UP)
(green color) - Button for quick scrolling through the sub-menu
(DOWN)
(black color) - "ENTER" button to confirm the changes made and
to enter and exit the MENU
Start-up
Put the master switch to 1.
When the power lift starts, the display shows the following menu in which you can navigate with the Yellow and Blue arrow keys
and confirm the selection with the black Enter key;
The symbols >> e << indicate the selected option.
Upon start-up, the system prompts the user to configure the work: configurations can be of two types:
- New configuration (NEW Config), in this case you will have to proceed with the new work configuration
- Configuration in use (OLD Config), the system runs a test to verify that the current conditions correspond to the conditions
relating to the old configuration.
On delivery, trucks may not be on the descent limit switch so it is recommend to select (OLD Config).
> > O L D C o n f i g
N E W C o n f i g
if
H e i g h t
G R O U N D
when
H e i g h t
G R O U N D
52
< <
confirm with the black "ENTER" key
1 1 1 1 mm
bring all trucks onto the descent limit switch by pressing the down button, if
A L L
necessary, press the individual button and then the descent button
0 0 0 0 mm
it is possible, proceed with (NEW Config).
A L L
0526M002-2
