Weller PYROPEN Betriebsanleitung Seite 18

press down.
4. As soon as the Pyropen is filled, gas will overfow.
5. Hold the tool firmly and see the windows to read LP gas volume inside.

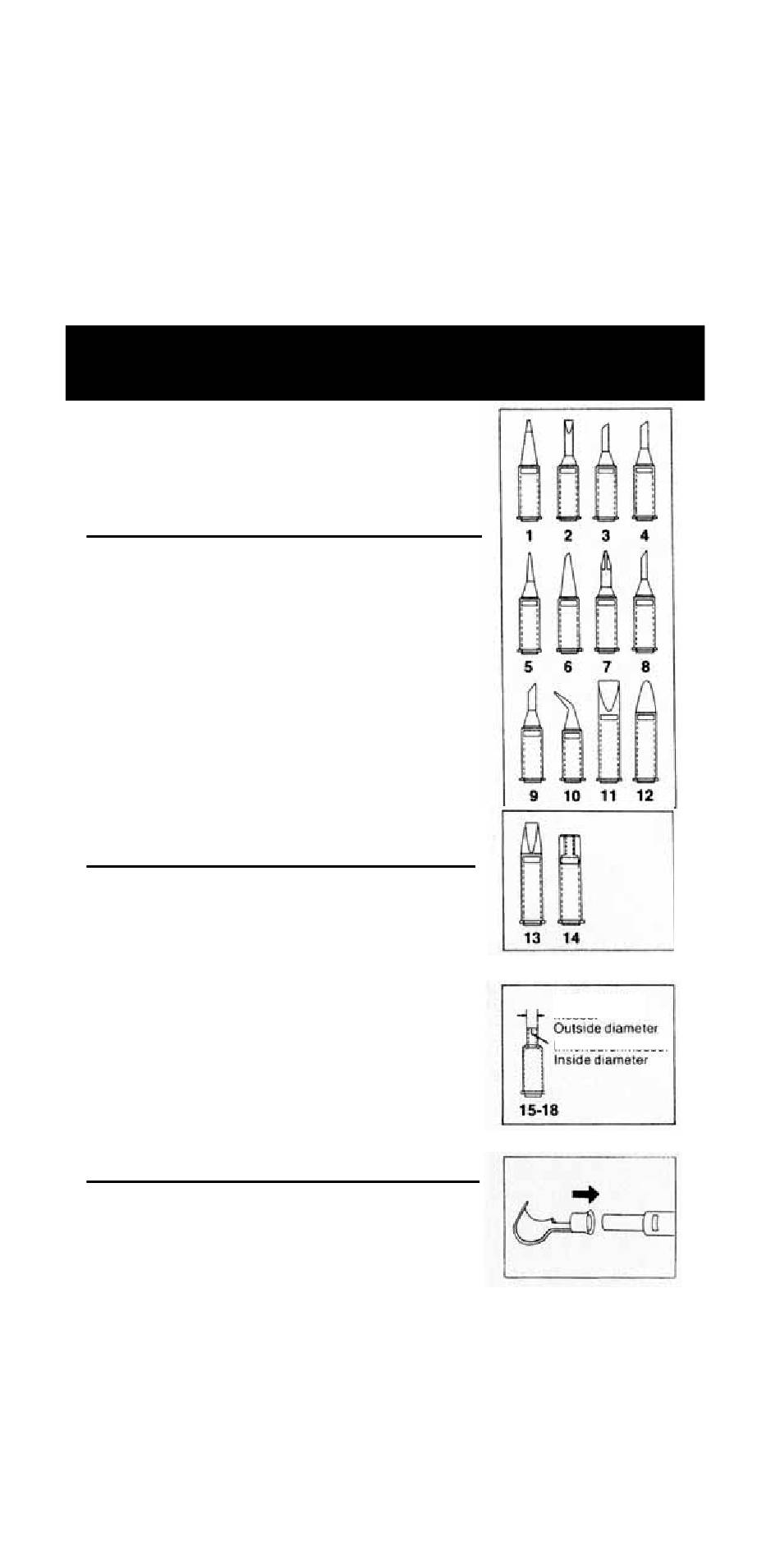

VARIOUS TYPES OF INTERCHANGEABLE TIPS
FOR VERSATILE APPLICATION
Please specify the Part Number
Soldering tips
Part No.
1 70-01-01
2 70-01-02
3 70-01-03
4 70-01-04
5 70-01-05
6 70-01-06
7 70-01-07
8 70-01-08
9 70-01-09
10 70-01-10
11 70-01-11
12 70-01-12
13 70-01-13
14 70-01-14
Hot blow tips
Part No.
15 70-01-50
16 70-01-51
17 70-01-52
18 70-01-53
70-01-54
Shrinking attachment, ø 8 mm
70-01-55
Shrinking attachment, ø 6 mm
17
Description
Tapered needle
Chisel
spade ø 2 mm
spade ø 3 mm
Tapered needle
Mirco spade
Taper pyramid
spade ø 2 mm 35°
spade ø 3 mm 35°
Offset tapered needle
High powered chisel,
8 mm width
High powered round head
needle, ø 3 mm
High powered long taper
chisel, 5 mm width
ø 8,4 mm Tip adapter
(with thread M4 e. g. for hot
knife)
O.D. (mm) I.D. (mm)
2.5 1.59
4.25 3.3
5.7 4.9
8.0 7.4
