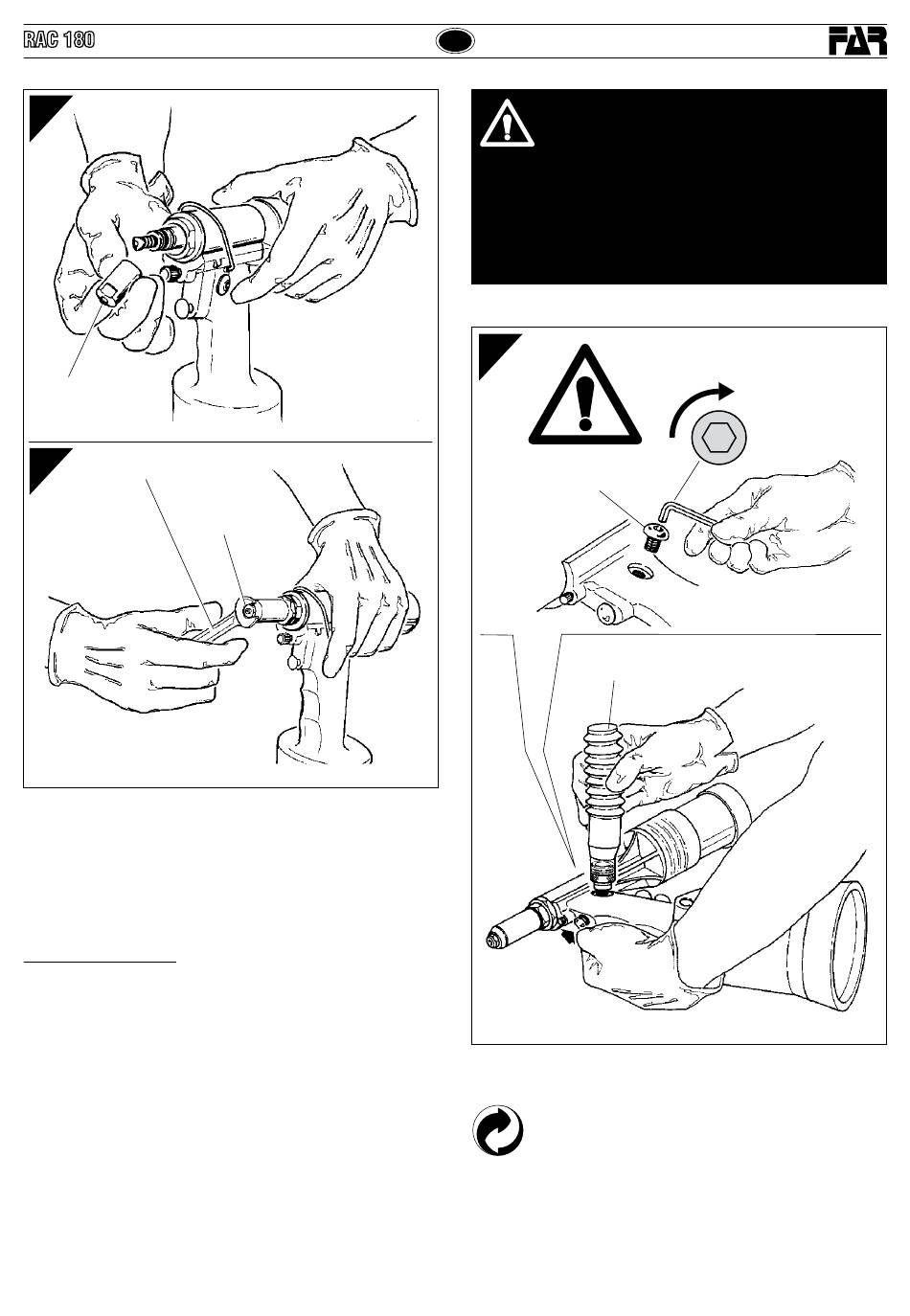

TOPPING UP THE OIL-DYNAMIC CIRCUIT (fig. f7)
You need to top up the oil-dynamic circuit after a long period of
work, when you note a power loss.
Put the riveting tool (DWELL AND NOT FED) in a horizontal position
and remove the plug (F), by means of a 5 mm Allen wrench
(equipped with the riveting tool); during this operation, check the
oil level in order to avoid any overflowing. Then, slowly pour the oil
PANOLIN HLP ISO 32 into the bellows container (M) which
shall be screwed to its seat on the plug (F). While keeping the
riveting tool in a horizontal position and starting air feeding,
push the tensile strength button and make the riveting tool
carry out some cycles until air bubbles inside the container
(M) stop coming out. This condition indicates that the topping
up of the oil has fully been achieved. At this point stop the air
feeding and, while keeping the riveting tool in a horizontal
position, unscrew and close up the container (M) and
the plug (F).
WARNING: it is very important to follow the about mentioned
instructions and use gloves. If you need to empty fully the
hydraulic circuit, you must put the oil in a suitable container and
contact a Company that is authorized to discharge any waste.
Revisione - 12
A
GB
ATTENTION!
Before disconnecting the compressed air hose,
make sure that it is not under pressure!
ATTENTION: Make sure that the oil filler cap ( F )
is tightened at a torque corresponding to Min. 5
Nm ÷ Max. 8 Nm.
We recommend to use oil PANOLIN HLP ISO 32
DIN 51524-2/HLP or similars.
f7

DISPOSAL OF THE RIVETING TOOL

Follow the prescriptions of the national laws for
disposing of the riveting tool.
After disconnecting the tool from the pneumatic
system, disassemble and split all the components
according to the material: steel, aluminium, plastic
material, etc.
Then proceed to scrap the materials in accordance
with current laws.
Date 01-2013
min. 5 Nm
max. 8 Nm
