circumstances if the monitor will not be used
for a long period of time, if the power supply
cable or plug/connector is damaged or if the
monitor housing is damaged or broken.
CAUTION: Do not attempt to dismantle this
product. Any attempt to dismantle or remove the
covers from this product will invalidate the warranty
and may also result in serious injury.

Introduction

This manual explains how to correctly install,
operate and get the best performance from your
monitor. Please read this user manual carefully
before installing your monitor then keep it near your
monitor for quick reference.
First, please check that the contents of the box
correspond with the following checklist:
LCD monitor
Power cord
AC adaptor
User manual
If any item is missing or damaged, please contact
your dealer. Please keep the box and packing
materials so that you may properly store or
transport your monitor.

Features

The convenient and user-friendly on-screen
display allows for easy and accurate
adjustments of screen size, position and screen
color.
The monitor complies with the VESA Display
Data Channel (DDC) specification for Plug and
Play compatibility. Advanced microcircuitry
makes setup and configuration fast and
effortless.
The monitor features Advanced Color Controls
for fine-tuning to meet your own personal tastes
or application requirements. Use the on-screen
controls to adjust the color temperature,
Press the Menu button and activate the Self-
Diagnosis menu to determine whether your
monitor is functioning normally, not receiving a
signal or is receiving a signal that is out of
scanning range.
EN 2

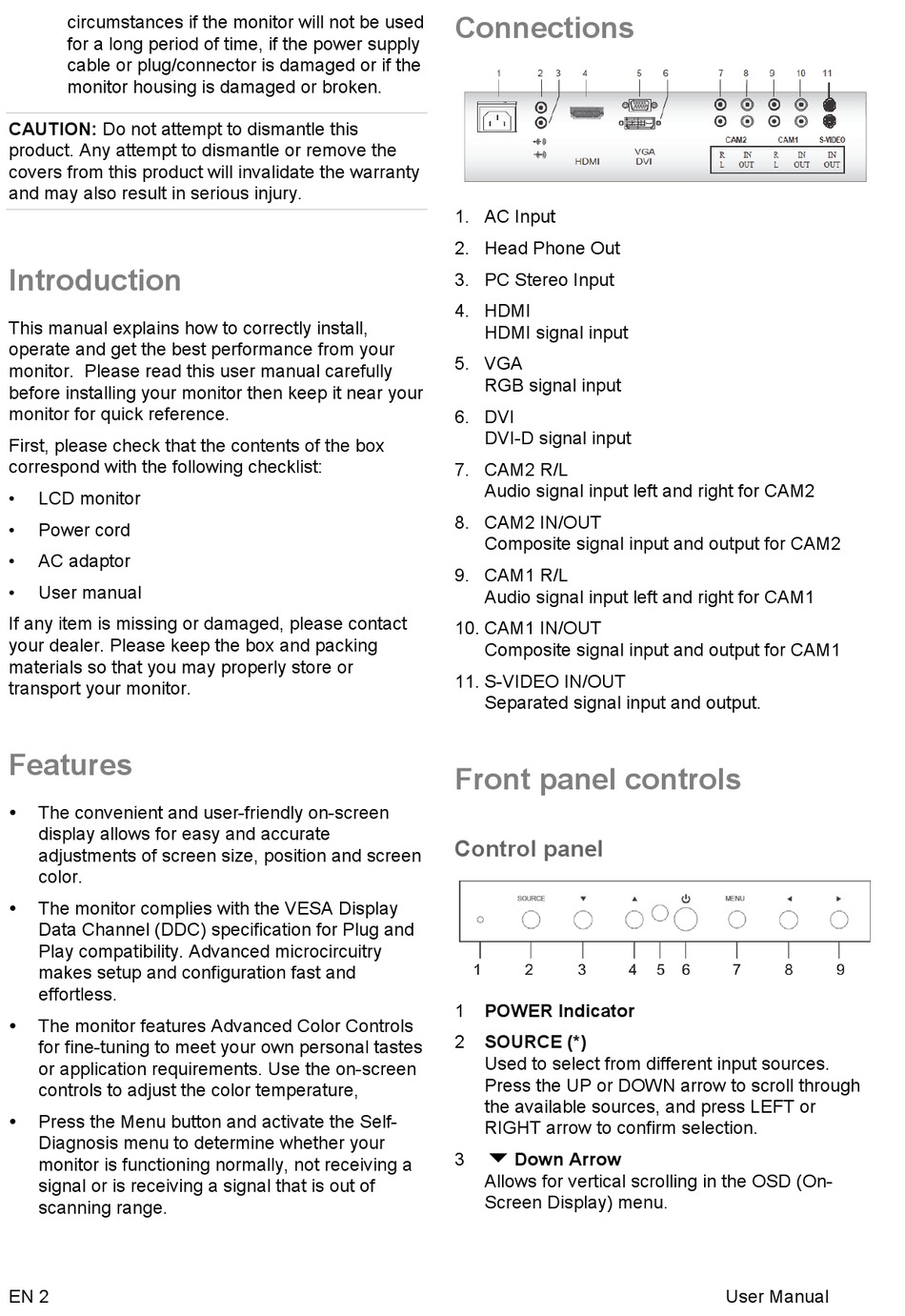

Connections

1. AC Input
2. Head Phone Out
3. PC Stereo Input
4. HDMI
HDMI signal input
5. VGA
RGB signal input
6. DVI
DVI-D signal input
7. CAM2 R/L
Audio signal input left and right for CAM2
8. CAM2 IN/OUT
Composite signal input and output for CAM2
9. CAM1 R/L
Audio signal input left and right for CAM1
10. CAM1 IN/OUT
Composite signal input and output for CAM1
11. S-VIDEO IN/OUT
Separated signal input and output.

Front panel controls

Control panel

1
POWER Indicator
2
SOURCE (*)
Used to select from different input sources.
Press the UP or DOWN arrow to scroll through
the available sources, and press LEFT or
RIGHT arrow to confirm selection.
3
Down Arrow
Allows for vertical scrolling in the OSD (On-
Screen Display) menu.
User Manual
