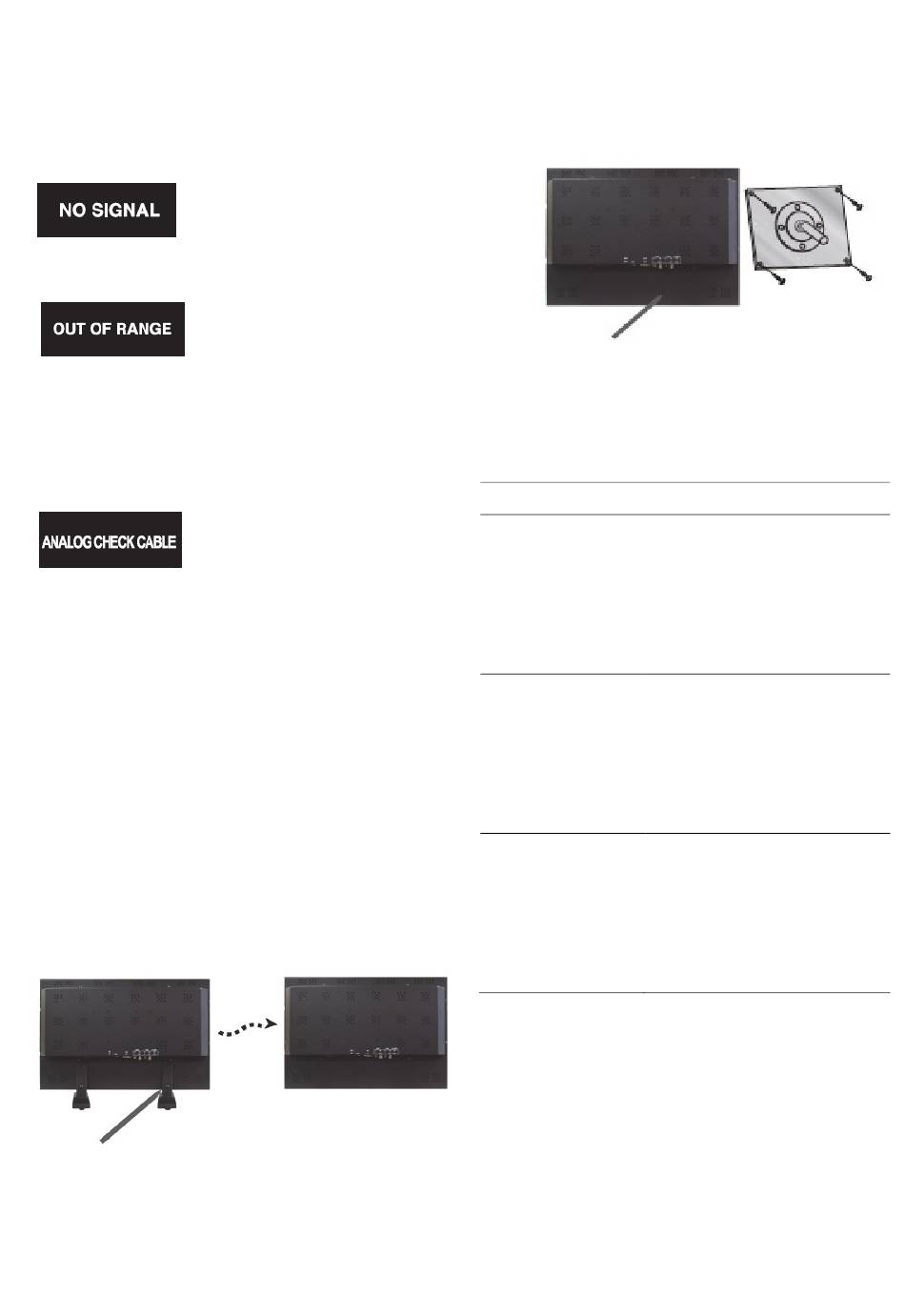

Self-diagnosis

If there is no image, the Self-Diagnosis screen will
be displayed. The self-diagnosis function checks if
the status of the monitor screen is No Signal, Out
of range or None support.
No Signal screen is displayed
when the D- Sub signal
connector is connected but
the status of the monitor is on
DPMS mode.
Out of Range screen is
displayed when the applied
frequency is under or over
normal range.
Normal range (Non-interlaced
mode only):
H: 30 to 80 kHz
V: 56 to 77 Hz
Check that the cable screen
is displayed when the analog
signal cable is disconnected.
Removing the monitor stand
(all models)
1. Turn off the monitor and unplug the power
cable.
2. Place a cushion or a soft cloth on the floor and
put the monitor on it with the front of the monitor
facing the floor.
3. Detach the rear cover of the monitor stand with
a screwdriver.
4. Remove the six screws connecting the stand
and monitor body.
Screws (x4)
User Manual

Attaching the monitor stand

Tighten the screws at the locations indicated by
arrows shown in the figures above. See pictures
below.
Monitor stand attached
here
The monitor's installation surface is compatible with
other types of VESA standard stands.
VESA mount specifications:
Model
UVM-2600
UVM-3200
UVM-4200
Face of monitor
stand arm
Specifications
VESA standard: 100 x
100 mm and 200 x 100 mm
(3.94 x 3.94 in. and 7.87 x
3.94 in.)
Screw thread: M4 screw
Length: 8.0 mm
VESA standard: 200 x
200 mm and 400 x 200 mm
(7.87 x 7.87 in. and 15.75 x
7.87 in.)
Screw thread: M5 screw
Length: 10.0 mm
VESA standard: 200 x
200 mm and 400 x 200 mm
(7.87 x 7.87 in. and 15.75 x
7.87 in.)
Screw thread: M5 screw
Length: 10.0 mm
9 EN
