Exsys EX-6410 Anleitung

JUMPER SETTING & CONNECTORS:
J1-J3:
9 pin Firewire 1394B port:
Pin Signal Pin
1 TPB- 4
9 8 7 6 5
2 TPB+ 5
3 TPA- 6
The Port J2 & J3 are shared so you can always only con-
nect one device at one of the ports
1 2 3 4
Attention!!!:
Please make sure that you connect the cable in the right
order like shown in the list above. If you connect the cable
wrong it can destroy your hardware! The labelling & marks
on the cable must match with the ones on our card.
HARDWARE INSTALLATION :
If you are ready with the jumper settings for the EX-6410, please proceed with the following
installation instructions. Because the designs of computers are different, only general installa-
tion instructions are given. Please refer your computer's reference manual whenever in doubt.
1. Turn off the power to your computer and any other connected peripherals.
2. Remove the mounting screws located at the rear and/or sides panels of your Computer
and gently slide the cover off.
3. If necessary please install now the external power supply to the card like shown at JP1 &
J6 above.
4. Locate an available & correct expansion slot ( see compatibility at technical information
above) and remove its covers from the rear panel of your computer.
5. Align the EX-6410 / 6411 with the expansion slot, and then gently but firmly, insert the
card. Make sure the card is seated and oriented correctly.
6. Then connect the card with a screw to the rear panel of the computer.
7. Gently replace your computer's cover and the mounting screws.
DRIVER INSTALLATION :
Windows ME
The drivers are already integrated in Windows and the EX-6410 will be installed automatically.
CHECK INSTALLED DRIVER:
Open the >Device manager< . Now you should see at "IEEE1394 Devices" the following new
entrys: <Texas Instruments OHCI conform IEEE1394 Hostcontroller>.
If you see this or a similar information the EX-6410 is installed correctly.
Windows 2000 XP and Server2003
The drivers are already integrated in Windows and the EX-6410 will be installed automatically.
CHECK INSTALLED DRIVER:
Open the >Device manager< . Now you should see at "IEEE1394 Devices" the following new
entrys: <Texas Instruments OHCI conform IEEE1394 Hostcontroller>.
If you see this or a similar information the EX-6410 is installed correctly.
Windows Vista/ 7/ 8/ 8.1/ 10
The drivers are already integrated in Windows and the EX-6410 will be installed automatically.
If you want to use the full performance of the IEEE1394B bus please install Windows Vista
service pack1 it provides the newest IEEE1394B drivers.
CHECK INSTALLED DRIVER:
Open the >Device manager< . Now you should see at "IEEE1394 Devices" the following new
entrys: <Texas Instruments OHCI conform IEEE1394 Hostcontroller>.
If you see this or a similar information the EX-6410 is installed correctly.
5
DRIVER INSTALLATION :
MAC:
The drivers are already integrated in MAC OS and the EX-6410 will be installed automatically.
Only MAC OS 8.6 do need a update before the card can be used. You can download the
update on the MAC OS homepage (e.g. FireWire Support 2.8.x). If you want to use the full
Signal Pin Signal
performance of the IEEE1394B bus please install MAC OS X it is supplied with new IEE-
TPA+ 7 SC
E1394B drivers. In doubt please refer to the installation manual from your MAC OS version !
TPA (R) 8 POWER
LINUX:
GND 9 TPB (R)
Because each individual distribution and kernel version of Linux is different, sadly we cant
provide a installation instruction here. Please refer to the installation manual for IEEE1394
ports from your Linux version!
J1
1 x Externe 9 Pin
1394B - Buchse
J3
1 x Externe 9 Pin
1394B - Buchse
J4
1 x Externe 6 Pin
1394A - Buchse
Die EX-6410 ist eine Firewire 1394B PCI-X Karte. Sie ist mit 3 externen ausgestattet. Sie
unterstützt den PCI-X Bus mit 64-Bit und 3,3 Volt. Der serielle PCI-X Bus unterstützt optimal
die Leistung des schnellen Texas Instruments Chips. Die EX-6410 gewährleistet so eine
sichere Datenübertragung und exzellente Performance von bis zu 800Mbit pro Sekunde! Es ist
nicht möglich die I/O Adressen und Interrupts manuell einzustellen, da die Einstellungen der
Karte vom System (BIOS) und beim Installieren des Betriebssystems automatisch vorgenom-
men werden. Mit der EX-6410 wird ein Low Profile Bügel mitgeliefert für schmale PC Gehäuse
bis 8cm Bauhöhe.
Kompatibilität:
Betriebssysteme:
Anschlüsse:
Lieferumfang:
Zertifikate:
JP1:
J6:
J4:
6
Anleitung
Vers. 2.3 / 18.08.15

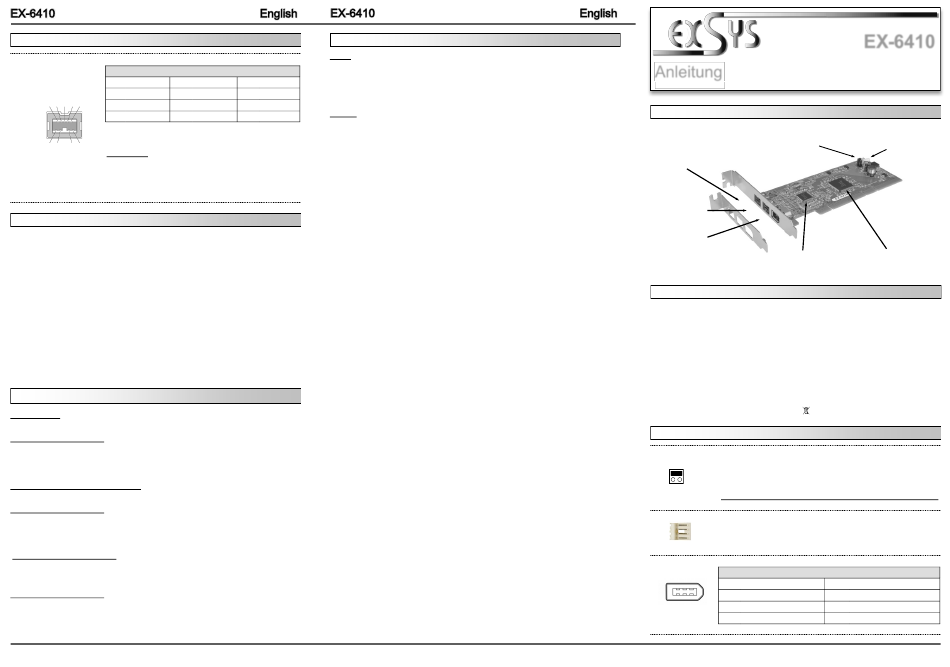

AUFBAU :
JP1
Stromquelle wählen
PCI oder AUX
TI Chipset
BESCHREIBUNG & TECHNISCHE DATEN :
PCI-X 64Bit 3,3 Volt
Win ME/ 2000/ XP/ Server 2003/ Vista/ 7/ 8/ 8.1/ 10, MAC/ Linux
2 x 9 Pin IEEE1394b Buchse , 1 x 6 Pin IEEE1394a Buchse
EX-6410, Low Profile Bügel, Treiber CD, Anleitung
CE / FCC / RoHS / WEEE DE97424562 / WHQL
JUMPER EINSTELLUNG & ANSCHLÜSSE:
PCI = Strom vom PCI-X BUS (Werkseinstellung)
AUX = Strom vom PC-Netzteil des Rechners
PCI
(Zur Entlastung des Mainboards und zur stabilen Stromversorgung bei
AUX
Verwendung von Endgeräten mit hohem Stromverbrauch).
Anschluss J6 muss dann mit dem PC-Netzteil verbunden werden!
1 +5V
Wenn JP1 auf AUX gestellt ist muss J6 mit dem Stromanschluss vom
2 GND
PC Netzteil verbunden werden! Bitte auf die richtige Polarität achten!
3 GND
Achtung! Stecker nie bei eingeschaltetem PC ein oder ausstecken!
4 +12V
6 Pin Firewire 1394A Buchse:
1 3 5
Pin Signal Pin
1 Power
2 4 6
2 GND
3 TPB-
1
EX-6410
J6
Anschluss für Stecker
vom PC-Netzteil
TI Chipset PCI-X Bridge
Signal
4 TPB+
5 TPA-
6 TPA+
