Appendix D

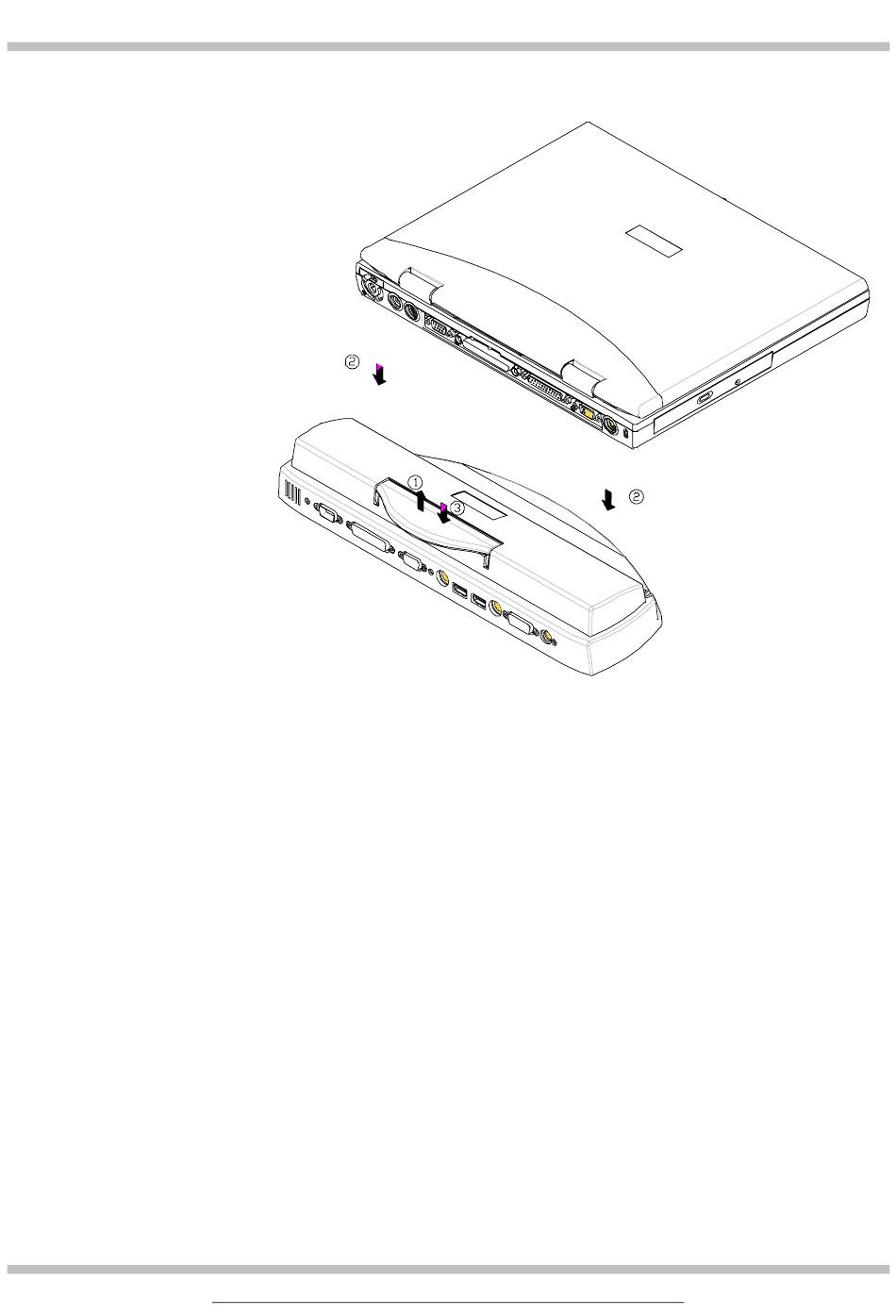

Follow the steps below to engage the Port Replicator:
•
Lift up the handle as shown by arrow 1.
•
Put the notebook system down as shown by arrow 2. Make sure the 2 pins are
pegged into the pin holes that are located on the chassis of the system unit.
•
Press the handle down as shown by arrow 3.
Reverse the steps above to disengage the Port Replicator.
Page D-2
