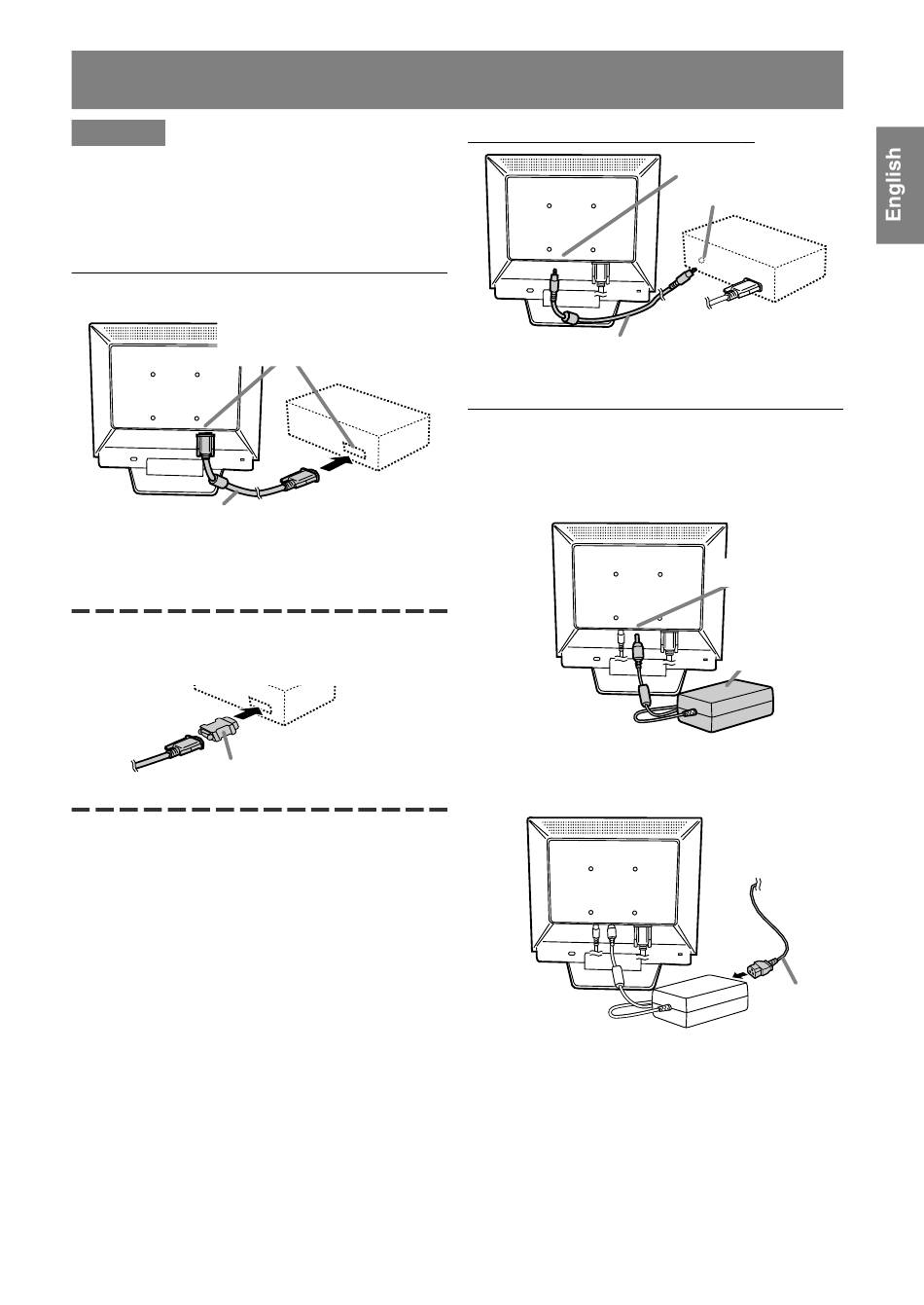

Connecting the monitor and turning the monitor on and off

CAUTION!
- When connecting, ensure that both the monitor
and computer are switched off.
- Be careful not to overly bend the cable or add
extension cords as this could lead to a
malfunction.

Connecting the monitor to a computer

Analog RGB terminal
(Mini D-Sub 15 pin, 3 row)
Analog signal cable
- Paying attention to connector direction, firmly
insert the signal cable to terminal, and then
tighten the screws at both sides.
If connecting to a D-sub 15 pin 2 row Apple Power
Macintosh, attach a Macintosh conversion adapter
(commercially available) to the analog signal cable.
Macintosh conversion adapter
Note:
- When connecting to a notebook, if the notebook
computer's screen is set so that it is displaying at
the same time, the MS-DOS screen may not be
able to display properly. In this case, change the
settings so that only the monitor is displaying.
Connect the accessory audio cable
Audio cable

Connecting the monitor to a power source

1.Connect the AC adapter to the monitor's power
terminal.
2.Attach the power cord to the AC adapter and
place the power plug into the AC outlet.
11
Audio input terminal
Audio output terminal
Power terminal
AC adapter
AC outlet
Power cord
