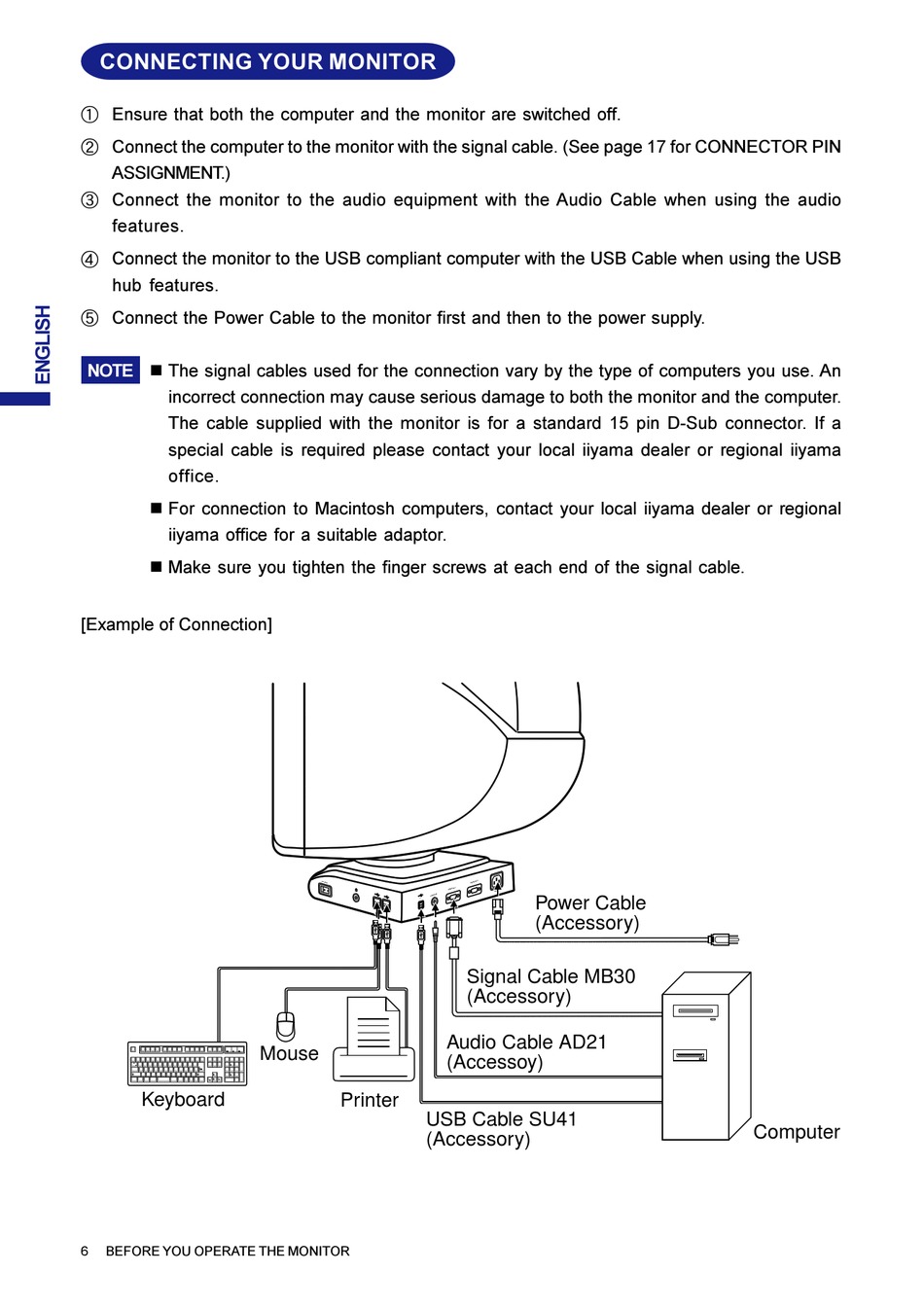

CONNECTING YOUR MONITOR

A Ensure that both the computer and the monitor are switched off.
B Connect the computer to the monitor with the signal cable. (See page 17 for CONNECTOR PIN
ASSIGNMENT.)
C Connect the monitor to the audio equipment with the Audio Cable when using the audio
features.
D Connect the monitor to the USB compliant computer with the USB Cable when using the USB
hub features.
E Connect the Power Cable to the monitor first and then to the power supply.
n The signal cables used for the connection vary by the type of computers you use. An
NOTE
incorrect connection may cause serious damage to both the monitor and the computer.
The cable supplied with the monitor is for a standard 15 pin D-Sub connector. If a
special cable is required please contact your local iiyama dealer or regional iiyama
office.
n For connection to Macintosh computers, contact your local iiyama dealer or regional
iiyama office for a suitable adaptor.
n Make sure you tighten the finger screws at each end of the signal cable.
[Example of Connection]
Keyboard
6 BEFORE YOU OPERATE THE MONITOR
Mouse
Printer
USB Cable SU41
(Accessory)
Power Cable
(Accessory)
Signal Cable MB30
(Accessory)
Audio Cable AD21
(Accessoy)
Computer
