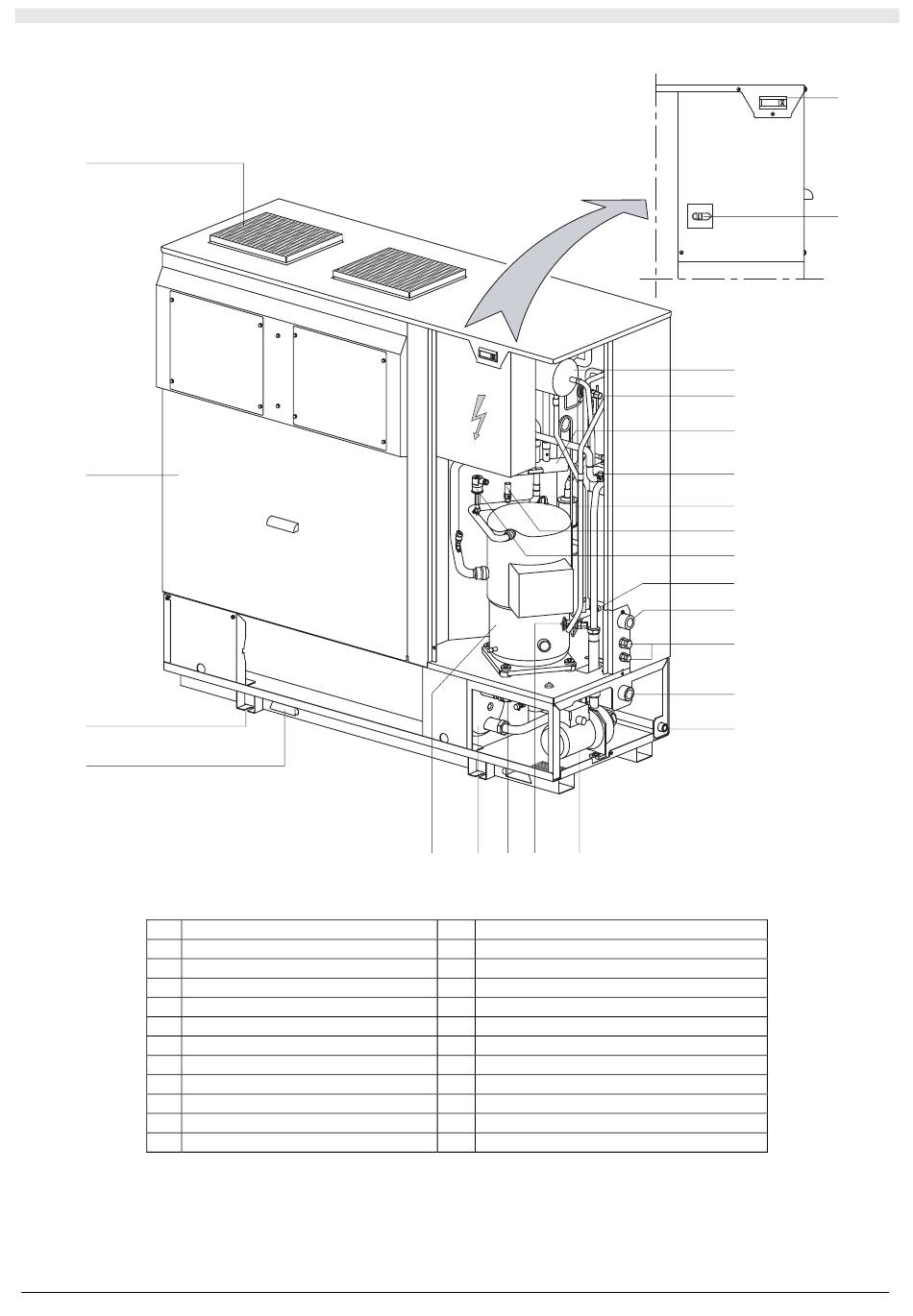

A1 PART IDENTIFICATION (SPECIFIC TO THCE)
23
22
21
20
Key:
1
2
3
4
5
6
7
8
9
10
11
12
Control board
Main switch
Liquid receiver
Winter thermostatic expansion valve
4-way valve
Air bleed cock
Drier filter
Bleed valve
Safety pressure switch
Water drain
Water outlet
Supply and control cable inlet
18 17 16 15
19
13 Water inlet
14 Discharge
15 Circulation pump
16 Summer thermostatic expansion valve
17 Safety valve
18 Tank
19 Scroll compressor
20 Lifting sling slots
21 Unit floor-fixture slots
22 Inspection panel
23 Fan outlet mouths
