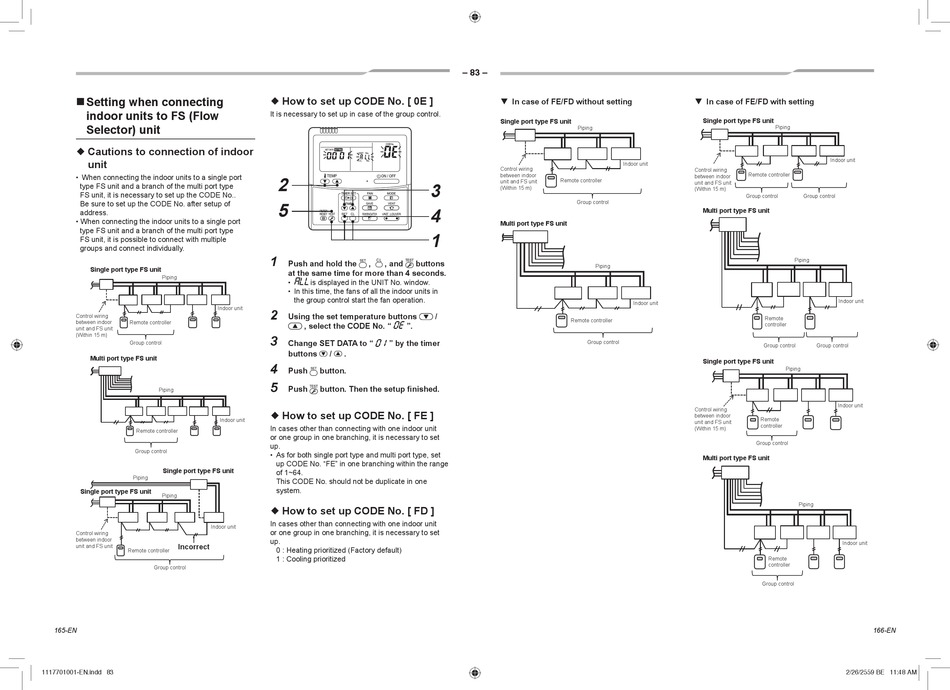

Setting when connecting
indoor units to FS (Flow
Selector) unit
¿ Cautions to connection of indoor
unit
• When connecting the indoor units to a single port
type FS unit and a branch of the multi port type
FS unit, it is necessary to set up the CODE No..
Be sure to set up the CODE No. after setup of
address.
• When connecting the indoor units to a single port
type FS unit and a branch of the multi port type
FS unit, it is possible to connect with multiple
groups and connect individually.
Single port type FS unit
Piping
Indoor unit
Control wiring
between indoor Remote controller
unit and FS unit
(Within 15 m)
Group control
Multi port type FS unit
Piping
Indoor unit
Remote controller
Group control
Single port type FS unit
Piping
Single port type FS unit
Piping
Indoor unit
Control wiring
between indoor
Incorrect
unit and FS unit
Remote controller
Group control
165-EN
1117701001-EN.indd 83 1117701001-EN.indd 83
¿ How to set up CODE No. [ 0E ]
It is necessary to set up in case of the group control.
.
2
3
5
4
1
1
Push and hold the , , and buttons
at the same time for more than 4 seconds.
• is displayed in the UNIT No. window.
• In this time, the fans of all the indoor units in
the group control start the fan operation.
2
Using the set temperature buttons /
, select the CODE No. " ".
3
Change SET DATA to " " by the timer
buttons / .
4
Push button.
5
Push button. Then the setup finished.
¿ How to set up CODE No. [ FE ]
In cases other than connecting with one indoor unit
or one group in one branching, it is necessary to set
up.
• As for both single port type and multi port type, set
up CODE No. "FE" in one branching within the range
of 1~64.
This CODE No. should not be duplicate in one
system.
¿ How to set up CODE No. [ FD ]
In cases other than connecting with one indoor unit
or one group in one branching, it is necessary to set
up.
0 : Heating prioritized (Factory default)
1 : Cooling prioritized
– 83 –
q In case of FE/FD without setting
Single port type FS unit
Piping
Indoor unit
Control wiring
between indoor
Remote controller
unit and FS unit
(Within 15 m)
Group control
Multi port type FS unit
Piping
Indoor unit
Remote controller
Group control
q In case of FE/FD with setting
Single port type FS unit
Piping
Indoor unit
Control wiring
Remote controller
between indoor
unit and FS unit
(Within 15 m)
Group control Group control
Multi port type FS unit
Piping
Indoor unit
Remote
controller
Group control Group control
Single port type FS unit
Piping
Indoor unit
Control wiring
between indoor
Remote
unit and FS unit
controller
(Within 15 m)
Group control
Multi port type FS unit
Piping
Indoor unit
Remote
controller
Group control
