Installation Instructions
1
3
(A) x2
1
(B) X4
3
Install Brackets

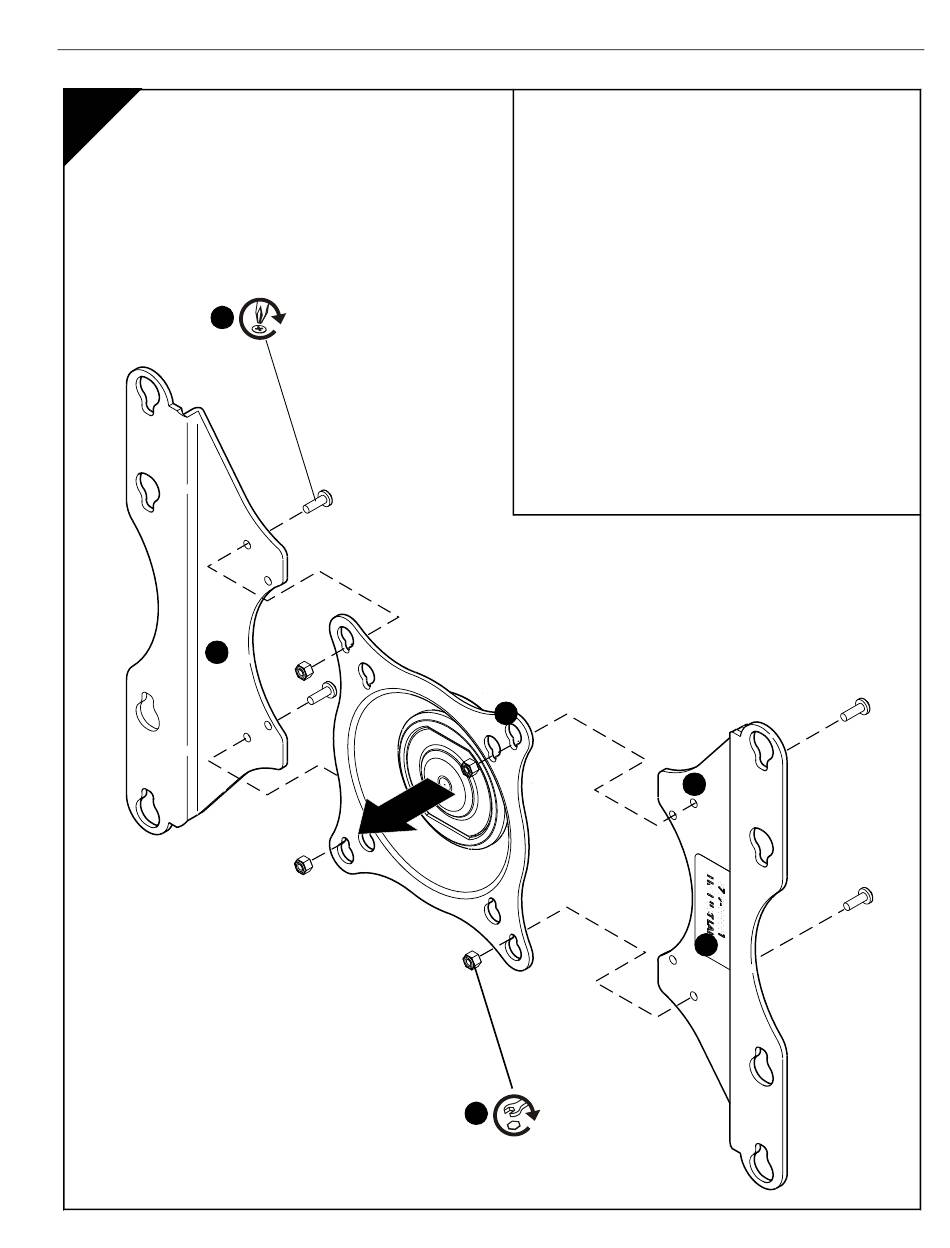

1. Orient VESA brackets (A) as shown in Figure at
left.
2. Align outer mounting holes in VESA brackets with
top teardrop mounting holes in Centris head.
3. Secure VESA brackets to Centris head using four
Phillips head machine screws (B) and four Nylock
nuts (C).
2
(C) X4
iCSPAC1
2
1
(A) x2
