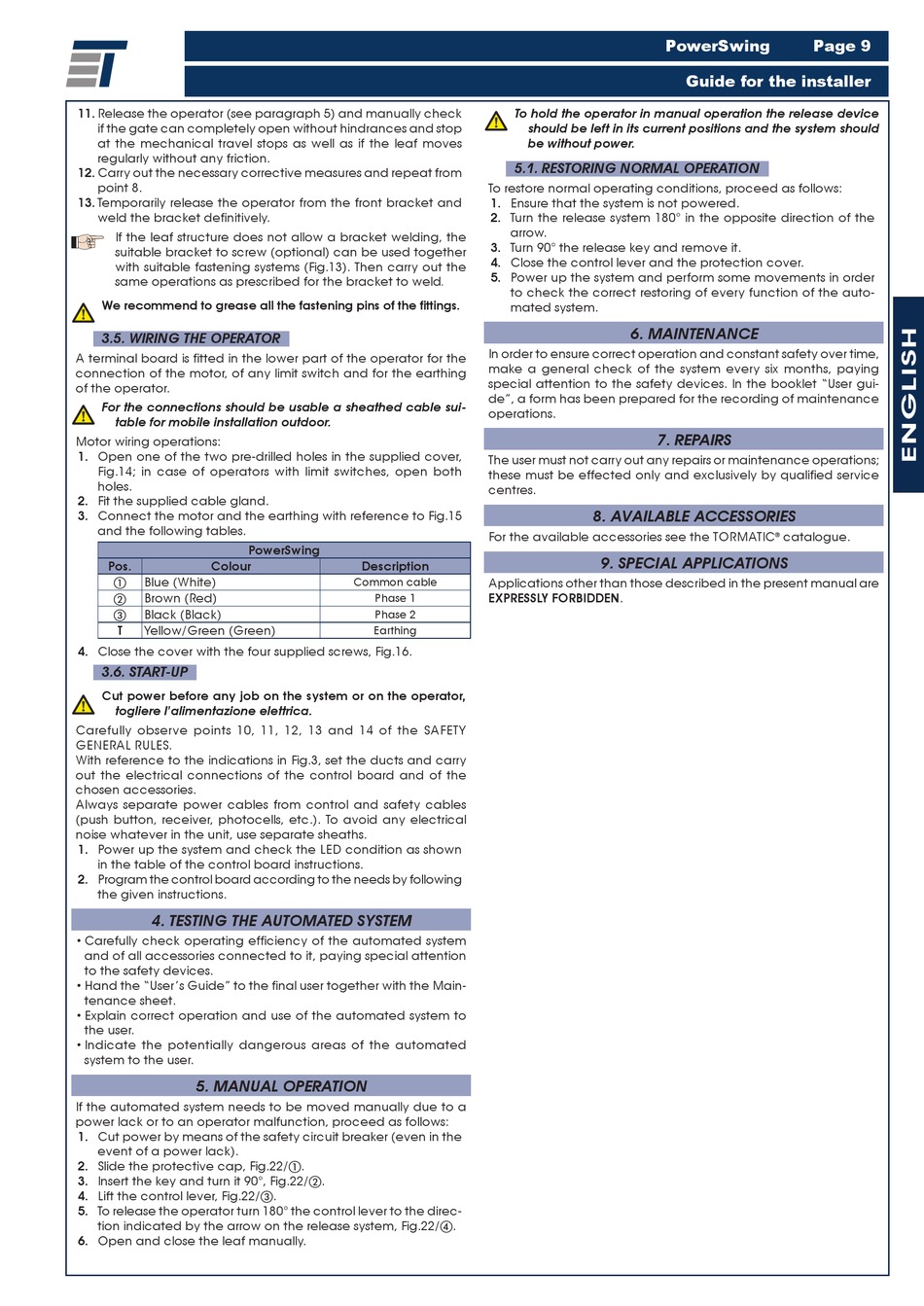

11. Release the operator (see paragraph 5) and manually check
if the gate can completely open without hindrances and stop
at the mechanical travel stops as well as if the leaf moves
regularly without any friction.
12. Carry out the necessary corrective measures and repeat from
point 8.
13. Temporarily release the operator from the front bracket and
weld the bracket definitively.
If the leaf structure does not allow a bracket welding, the
suitable bracket to screw (optional) can be used together
with suitable fastening systems (Fig.13). Then carry out the
same operations as prescribed for the bracket to weld.
We recommend to grease all the fastening pins of the fittings.
3.5. WIRING THE OPERATOR
A terminal board is fitted in the lower part of the operator for the
connection of the motor, of any limit switch and for the earthing
of the operator.
For the connections should be usable a sheathed cable sui-
table for mobile installation outdoor.
Motor wiring operations:
1. Open one of the two pre-drilled holes in the supplied cover,
Fig.14; in case of operators with limit switches, open both
holes.
2. Fit the supplied cable gland.
3. Connect the motor and the earthing with reference to Fig.15
and the following tables.
PowerSwing
Pos. Colour
Blue (White)
a
Brown (Red)
b
Black (Black)
c
Yellow/Green (Green)
T
4. Close the cover with the four supplied screws, Fig.16.
3.6. START-UP
Cut power before any job on the system or on the operator,
togliere l'alimentazione elettrica.
Carefully observe points 10, 11, 12, 13 and 14 of the SAFETY
GENERAL RULES.
With reference to the indications in Fig.3, set the ducts and carry
out the electrical connections of the control board and of the
chosen accessories.
Always separate power cables from control and safety cables
(push button, receiver, photocells, etc.). To avoid any electrical
noise whatever in the unit, use separate sheaths.
1. Power up the system and check the LED condition as shown
in the table of the control board instructions.
2. Program the control board according to the needs by following
the given instructions.
4. TESTING THE AUTOMATED SYSTEM
• Carefully check operating efficiency of the automated system
and of all accessories connected to it, paying special attention
to the safety devices.
• Hand the "User's Guide" to the final user together with the Main-
tenance sheet.
• Explain correct operation and use of the automated system to
the user.
• Indicate the potentially dangerous areas of the automated
system to the user.
5. MANUAL OPERATION
If the automated system needs to be moved manually due to a
power lack or to an operator malfunction, proceed as follows:
1. Cut power by means of the safety circuit breaker (even in the
event of a power lack).
2. Slide the protective cap, Fig.22/a.
3. Insert the key and turn it 90°, Fig.22/b.
4. Lift the control lever, Fig.22/c.
5. To release the operator turn 180° the control lever to the direc-
tion indicated by the arrow on the release system, Fig.22/d.
6. Open and close the leaf manually.
To hold the operator in manual operation the release device
should be left in its current positions and the system should
be without power.
5.1. RESTORING NORMAL OPERATION
To restore normal operating conditions, proceed as follows:
1. Ensure that the system is not powered.
2. Turn the release system 180° in the opposite direction of the
arrow.
3. Turn 90° the release key and remove it.
4. Close the control lever and the protection cover.
5. Power up the system and perform some movements in order
to check the correct restoring of every function of the auto-
mated system.
In order to ensure correct operation and constant safety over time,
make a general check of the system every six months, paying
special attention to the safety devices. In the booklet "User gui-
de", a form has been prepared for the recording of maintenance
operations.
The user must not carry out any repairs or maintenance operations;
these must be effected only and exclusively by qualified service
centres.
For the available accessories see the TORMATIC
Description
Common cable Applications other than those described in the present manual are
EXPRESSLY FORBIDDEN.
Phase 1
Phase 2
Earthing
PowerSwing
Guide for the installer

6. MAINTENANCE

7. REPAIRS
8. AVAILABLE ACCESSORIES
9. SPECIAL APPLICATIONS
Page 9
catalogue.
®
