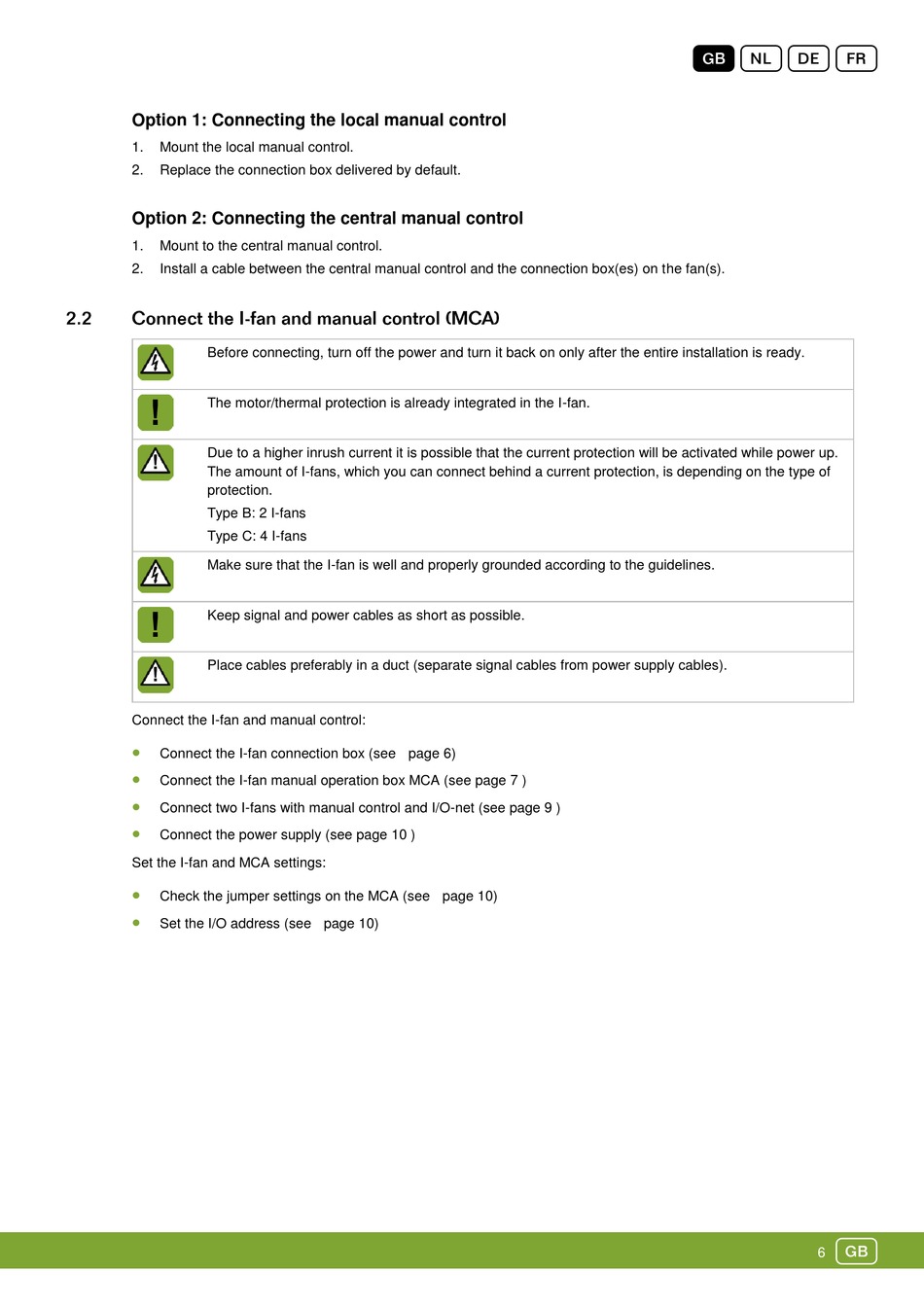

Option 1: Connecting the local manual control
1. Mount the local manual control.
2. Replace the connection box delivered by default.
Option 2: Connecting the central manual control
1. Mount to the central manual control.
2. Install a cable between the central manual control and the connection box(es) on the fan(s).
Before connecting, turn off the power and turn it back on only after the entire installation is ready.
The motor/thermal protection is already integrated in the I-fan.
Due to a higher inrush current it is possible that the current protection will be activated while power up.
The amount of I-fans, which you can connect behind a current protection, is depending on the type of
protection.
Type B: 2 I-fans
Type C: 4 I-fans
Make sure that the I-fan is well and properly grounded according to the guidelines.
Keep signal and power cables as short as possible.
Place cables preferably in a duct (separate signal cables from power supply cables).
Connect the I-fan and manual control:

Connect the I-fan connection box (see page 6)

Connect the I-fan manual operation box MCA (see page 7 )

Connect two I-fans with manual control and I/O-net (see page 9 )

Connect the power supply (see page 10 )
Set the I-fan and MCA settings:

Check the jumper settings on the MCA (see page 10)

Set the I/O address (see page 10)
