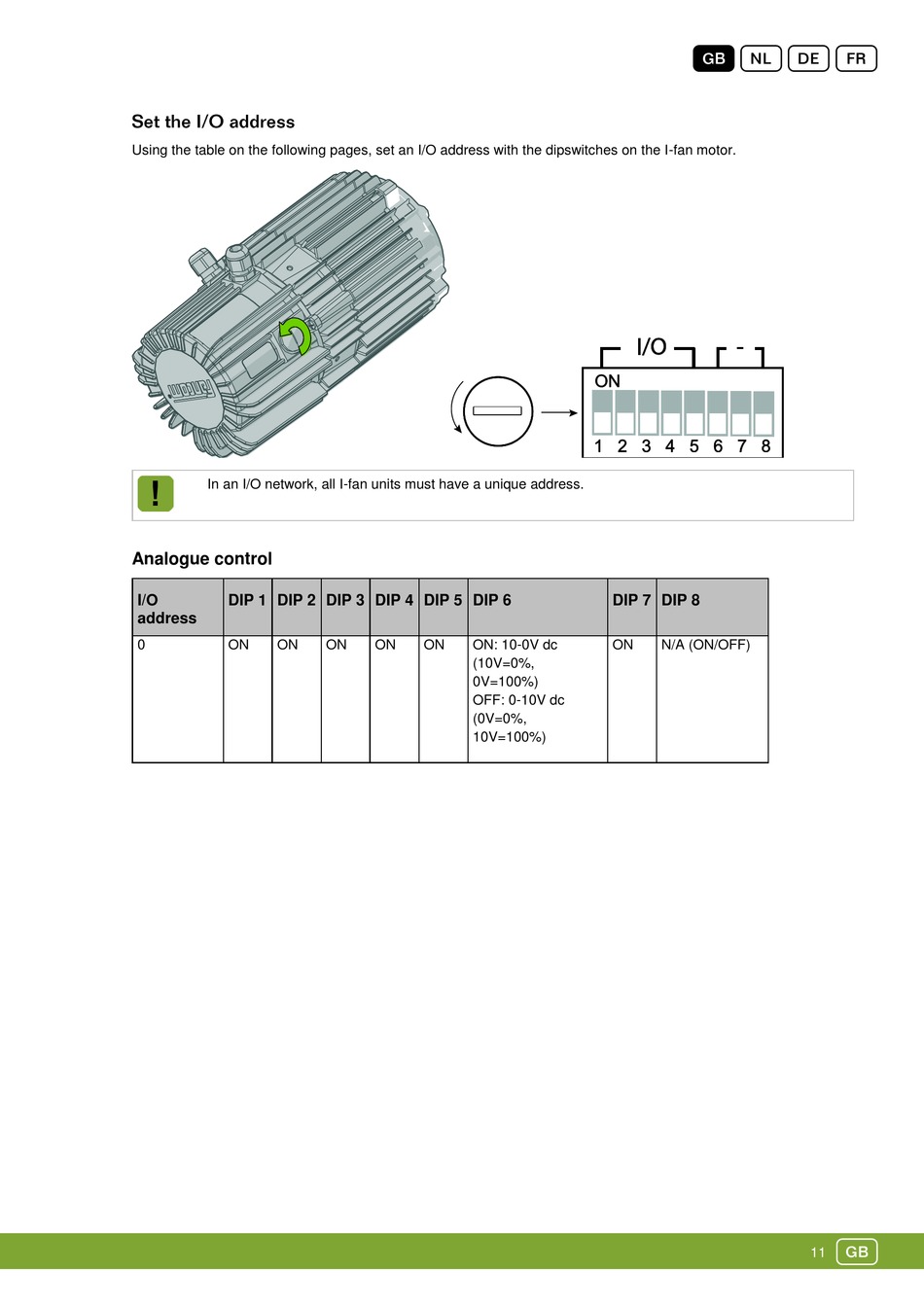

Using the table on the following pages, set an I/O address with the dipswitches on the I-fan motor.
In an I/O network, all I-fan units must have a unique address.
Analogue control
I/O
DIP 1 DIP 2 DIP 3 DIP 4 DIP 5 DIP 6
address
0
ON
ON
ON
ON
ON
ON: 10-0V dc
(10V=0%,
0V=100%)
OFF: 0-10V dc
(0V=0%,
10V=100%)
Gndf
DIP 7 DIP 8
ON
N/A (ON/OFF)
g
11
