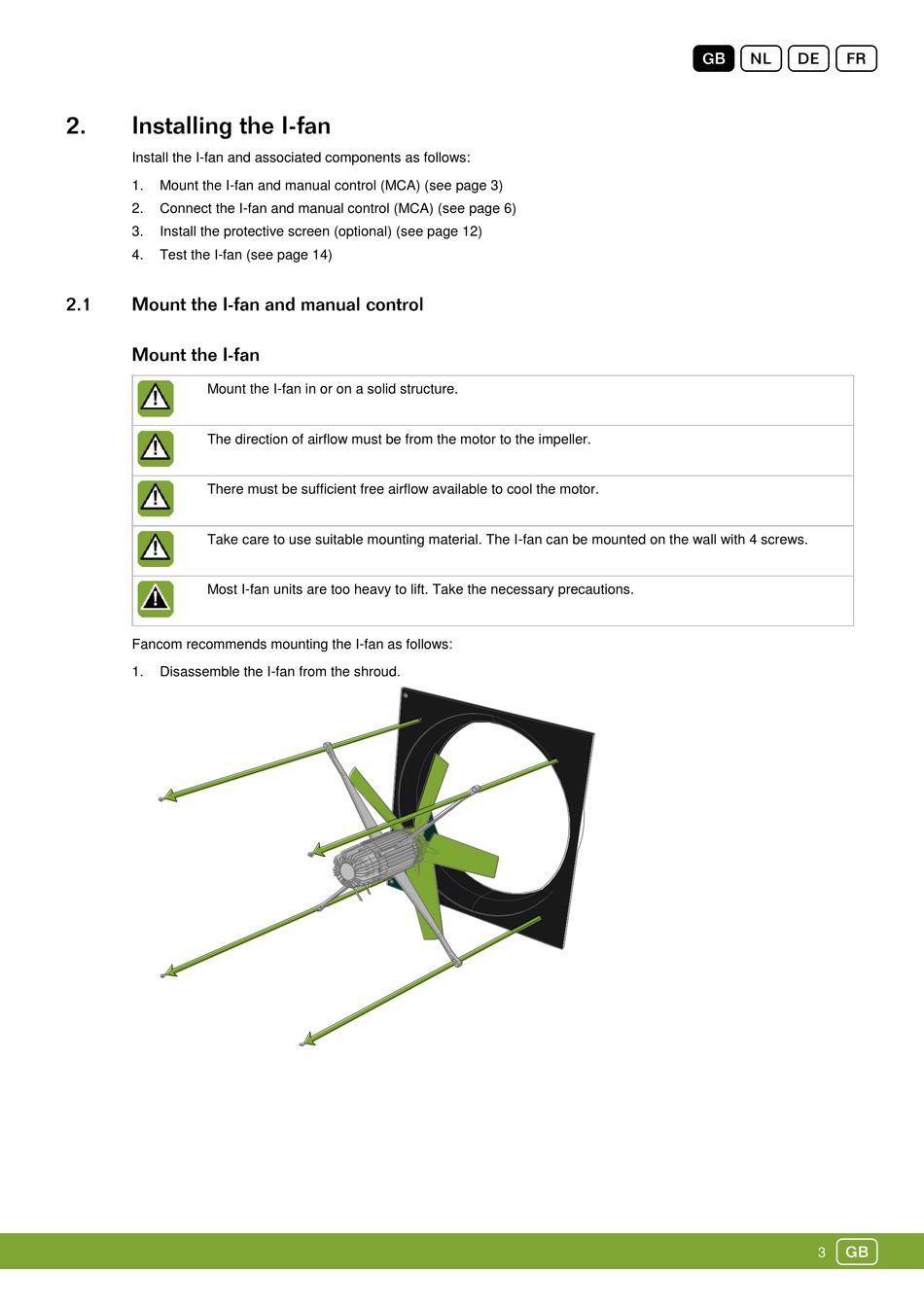

Install the I-fan and associated components as follows:
1.
Mount the I-fan and manual control (MCA) (see page 3)
2.
Connect the I-fan and manual control (MCA) (see page 6)
3.
Install the protective screen (optional) (see page 12)
4.
Test the I-fan (see page 14)
Mount the I-fan in or on a solid structure.
The direction of airflow must be from the motor to the impeller.
There must be sufficient free airflow available to cool the motor.
Take care to use suitable mounting material. The I-fan can be mounted on the wall with 4 screws.
Most I-fan units are too heavy to lift. Take the necessary precautions.
Fancom recommends mounting the I-fan as follows:
1.
Disassemble the I-fan from the shroud.
Gndf
g
3
