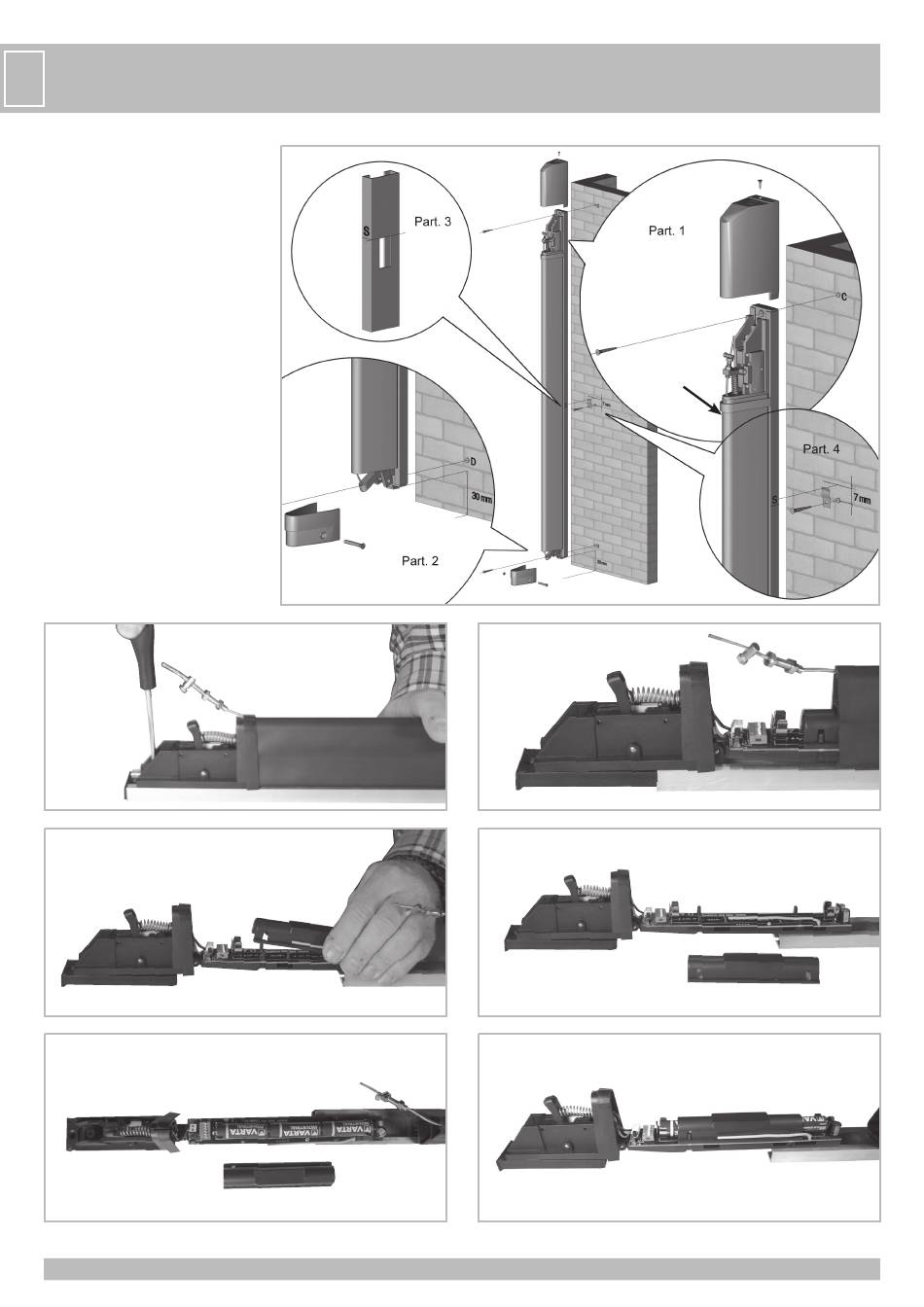

1 - Unscrew fastening screws of upper cover and
remove it (fig. 2 - part. 1).
- Unscrew gland bolts from upper part (fig. 3).
- Remove upper part complete with the adjacent
electronic board(fig. 4).
- Remove plastic guide from notches (fig. 5-6).
- Insert 3 alkaline type AA with batteries 1.5V
and pay attention to the polarities (fig. 7).
- Insert plastic guide into notches fig. 8).
- Identify and memorize electronic board as
indicated below.
- Insert electronic card with mechanical
assembly into rubber profile (fig. 9-10-11).
- Insert steel cable into appropriate slot on
mechanical assembly (fig. 12).
- Lock mechanical assembly to aluminum profile
using screws loosened previously (fig. 13).
- Insert steel cable into slot located on lever (fig.
14).
* Once the safety edge is fixed, make sure
there are no gaps in between the parts
indicated.The rubber profile and the parts
above it, must perfectly adhere to avoid the
passage of rain or insects.
