Electrical connection

3.1 Inner fitting – outer fitting connection

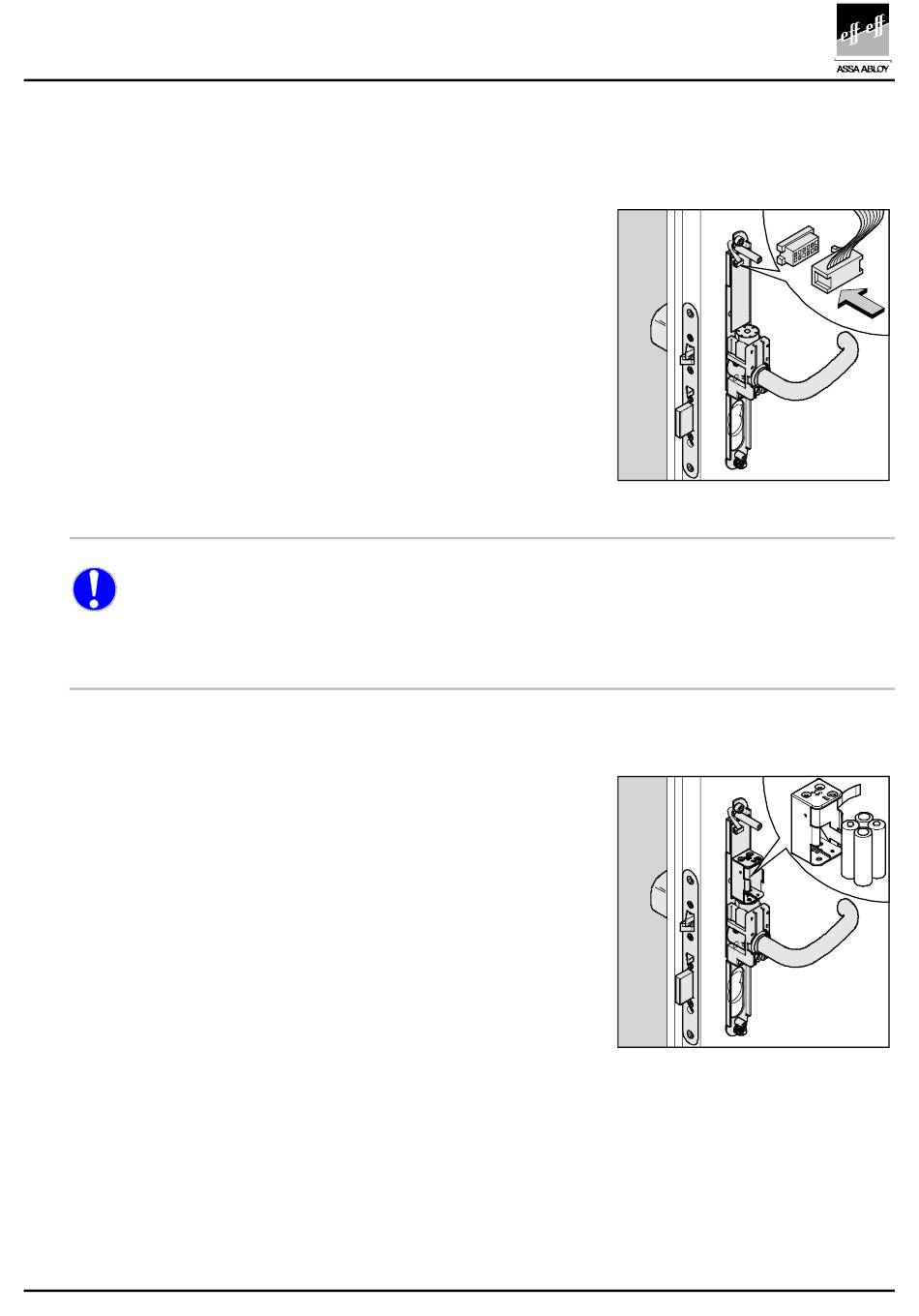

Inserting the ribbon cable
 Insert the ribbon cable.
The keyway on the plug must point to the right.

Inserting batteries

Caution
Unintentional locking of the door
Once the batteries are inserted, the fitting is deactivated immediately. The door can then only be opened
from the outside with the valid mastercode or via the locking cylinder.
If you close the door from the outside:
Ensure that you have the suitable key with you or that you know the mastercode.
You will need 4 new type AA (mignon) batteries.
We recommend: Alkaline batteries e.g. DURACELL
 Insert the 4 batteries in the battery compartment.
 The door fitting is deactivated.
 The door fitting is operational.
D00396
01
Electrical connection
® ULTRA M3, DURACELL ® PROCELL or Energizer ® Ultimate.
