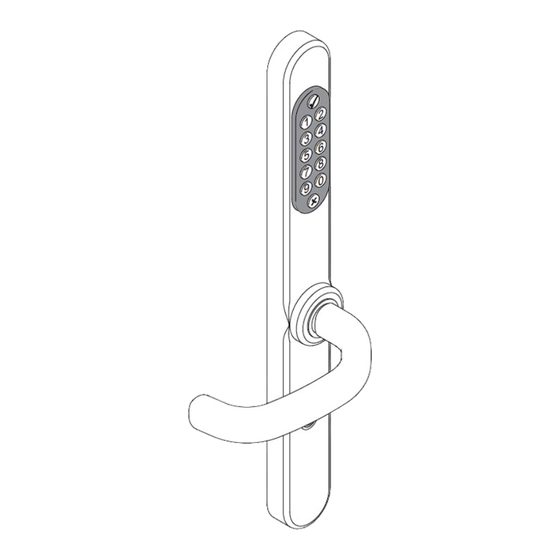

Assa Abloy ANYKEY Code Montageanleitung
  1. Anleitungen
  2. Marken
  3. Assa Abloy Anleitungen
  4. Sicherheitsgeräte
  5. ANYKEY Code
  6. Montageanleitung

Assa Abloy ANYKEY Code Montageanleitung

Vorschau ausblenden
Inhaltsverzeichnis

Werbung

Quicklinks

Diese Anleitung herunterladen

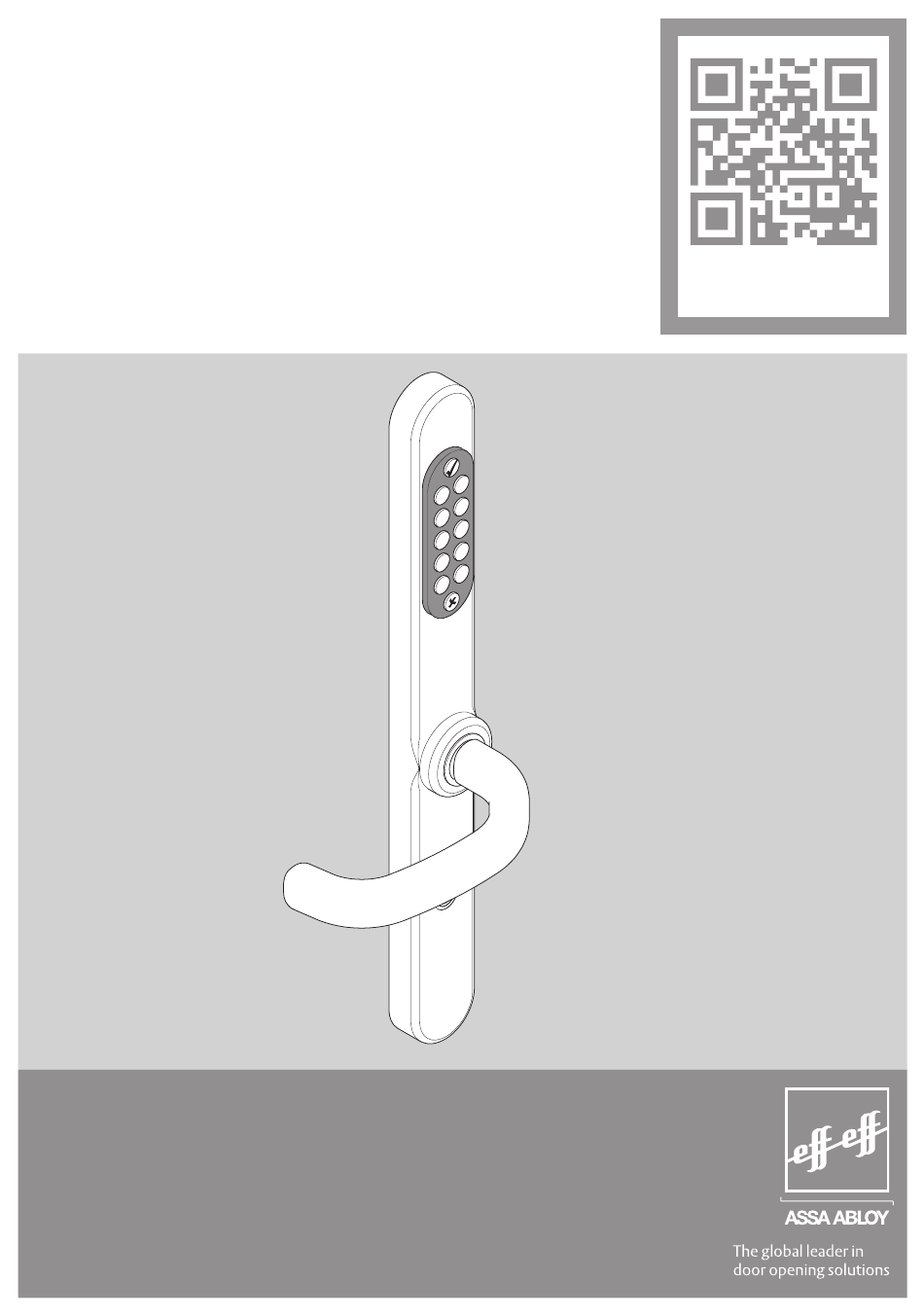

Zutrittskontrolle
ANYKEY
Code
®
Montageanleitung
Mounting Instructions
D00396
01
2
1
4
3
6
5
8
7
0
9
www.assaabloy.de

Werbung

Inhaltsverzeichnis
loading

Verwandte Anleitungen für Assa Abloy ANYKEY Code

Inhaltszusammenfassung für Assa Abloy ANYKEY Code

  • Seite 1 Zutrittskontrolle www.assaabloy.de ANYKEY Code ® Montageanleitung Mounting Instructions D00396...
  • Seite 2 Dokumentennummer, -datum D0039601 08.2015 Copyright © 2015, ASSA ABLOY Sicherheitstechnik GmbH Diese Dokumentation einschließlich aller ihrer Teile ist urheberrechtlich geschützt. Jede Verwertung bzw. Veränderung außerhalb der engen Grenzen des Urheberrechtsgesetzes ist ohne Zustimmung von ASSA ABLOY Sicherheitstechnik GmbH unzulässig und strafbar.

  • Seite 5: Spezifikationen

    Spezifikationen    ...
  • Seite 6 Dekoplatte 496-1080050--35 optional Dekoplatte 496-1080050--35 optional (3x) Schloss 309X (2x) nicht im Lieferumfang (2x) (2x)
  • Seite 9    ...

  • Seite 10: Vorbereitung

    Vorbereitung    Flachbandkabel durchführen  ...

  • Seite 11: Distanzmuttern Montieren

     Distanzmuttern montieren    + ¼    = 0,2 mm...

  • Seite 12: Innenbeschlag Montieren

       ¼  = 0,2 mm  ¼ = 0,2 mm Innenbeschlag montieren         ...
  • Seite 13   Beschläge ausrichten   Fertigmontage ...

  • Seite 14: Funktionsprüfung

    Funktionsprüfung   + ¼  = 0,2 mm...
  • Seite 15 Flachbandkabel einstecken  Batterien einbauen   ...

  • Seite 16: Gehäuse Schließen

    Gehäuse schließen   ...
  • Seite 18 08.2015 Copyright © 2015, ASSA ABLOY Sicherheitstechnik GmbH This document and all its parts are copyrighted. Any use or changes outside the strict limits of the copy- right are prohibited and liable to prosecution if no prior consent is obtained from ASSA ABLOY Sicherheitstechnik GmbH.

  • Seite 19: Inhaltsverzeichnis

    Content Introduction General description Scope of delivery Mounting and installation Wiring diagram Installation dimensions Optional: Door lock – example: effeff 309X Security fitting Electrical connection Inner fitting – outer fitting connection Technical specifications D00396 Page 17...

  • Seite 20: Access Control

    Access Control Page 18 D00396...

  • Seite 21: Introduction

    Introduction Introduction 1.1 General description The security fitting with integrated access control is a battery-operated access control system. It is integrated as a stand-alone device in a fitting system. Identification takes place by entering a 4-digit code. The security fitting is suitable for high security requirements.

  • Seite 22: Scope Of Delivery

    Access Control 1.2 Scope of delivery Decorative plate set 496-1080050--35 optional Decorative plate set 496-1080050--35 optional (3x) Lock 309X (2x) not included (2x) (2x) Fig. 1: Scope of delivery and overview Lock 309X, not included in scope of delivery Outer fitting Hexagonal nut Inner fitting Sleeve nut...

  • Seite 23: Mounting And Installation

    Mounting and installation Mounting and installation Note You will need 4 new AA batteries (mignon) for commissioning later. 2.1 Wiring diagram Fig. 2: Wiring diagram Lock Outer fitting Inner fitting Battery holder Ribbon cable D00396 Page 21...

  • Seite 24: Installation Dimensions

    Access Control 2.2 Installation dimensions Fig. 3: Fitting dimensions and drilling diagram Page 22 D00396...

  • Seite 25: Optional: Door Lock - Example: Effeff 309X

    Mounting and installation 2.3 Optional: Door lock – example: effeff 309X Information In these instructions, we describe the following as examples: 1. Door lock 309X 2. Door DIN left 3. Wooden and steel doors Caution The door may be locked unintentionally during assembly The lock locks automatically when the door is closed.

  • Seite 26: Security Fitting

    Access Control 2.5 Security fitting Preparation  On the outer fitting: Screw the 3 threaded pins fully into the screw sockets.  Drill all holes as shown in Fig. 3.  Optional: Mount the decorative plate. Feeding through the ribbon cable ...
  • Seite 27 Mounting and installation  Pull the insertion tool off again. Mounting spacer nuts  Place the outer fitting on the door leaf.  Hold the outer fitting.  Press the outer fitting against the door leaf.  Screw a hexagonal nut on the central stud bolt. + ¼...
  • Seite 28 Access Control  Hold the outer fitting.  Press the outer fitting against the door leaf. ¼  Screw a hexagonal nut on the central stud bolt. = 0,2 mm  Tighten the hexagonal nut until it disappears completely into the hole and lies flush with the surface of the door leaf.

  • Seite 29: Final Assembly

    Mounting and installation  Hold the outer fitting.  Press the outer fitting against the door leaf. Caution Damage to the thread due to incorrectly positioned sleeve nuts. Screw the sleeve nut onto the center threaded pin by hand. The sleeve nut must not tilt. It must be easy to screw in. Only use a hexagon wrench to tighten the sleeve nuts Aligning the door fittings ...

  • Seite 30: Function Check

    Access Control Function check  Now check that the door handles move smoothly. If the door handles catch or are stiff:  Remove the inner fitting again. + ¼  Check that the spacer nuts are mounted correctly (see also P. 8). = 0,2 mm Page 28 D00396...

  • Seite 31: Electrical Connection

    Electrical connection Electrical connection 3.1 Inner fitting – outer fitting connection Inserting the ribbon cable  Insert the ribbon cable. The keyway on the plug must point to the right. Inserting batteries Caution Unintentional locking of the door Once the batteries are inserted, the fitting is deactivated immediately. The door can then only be opened from the outside with the valid mastercode or via the locking cylinder.

  • Seite 32: Closing The Housing

    Access Control Closing the housing Caution Damage to the ribbon cable. The ribbon cable may become trapped and damaged when the housing is being mounted. Position the ribbon cable carefully. When mounting the housing: Ensure that the ribbon cable is not trapped. Scratches on the door handle.

  • Seite 33: Technical Specifications

    Technical specifications Technical specifications Data Value Nominal input supply voltage 6 V DC from battery, 4 x AA
Recom m ended bat Alkaline batteries e.g. DURACELL ® ULTRA M3, ® ® DURACELL PROCELL or Energizer Ultimate. Data preservation in power cut Up to 10 years Operating temperature range 0 °C to +60 °C...
  • Seite 34 Access Control Page 32 D00396...
  • Seite 36 ASSA ABLOY is the global leader in door opening solutions, dedicated to satisfying end-user needs for security, safety and convenience ASSA ABLOY Sicherheitstechnik GmbH Bildstockstraße 20 72458 Albstadt DEUTSCHLAND albstadt @ assaabloy.com Tel. + 497431 123-0 Fax + 497431 123-240...
