Access Control

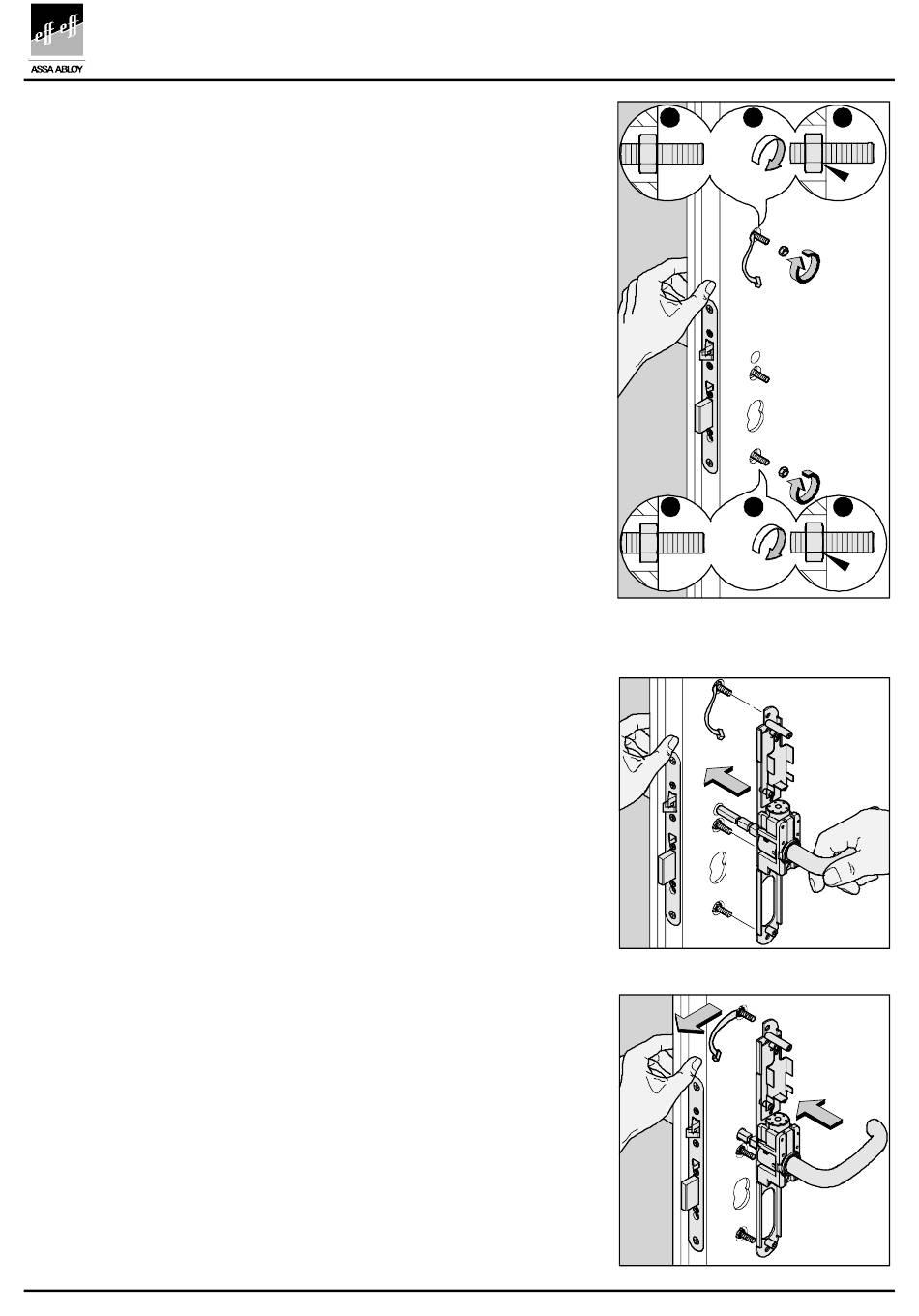

Hold the outer fitting.
Press the outer fitting against the door leaf.
Screw a hexagonal nut on the central stud bolt.
Tighten the hexagonal nut until it disappears completely into the hole
and lies flush with the surface of the door leaf.
Screw the hexagonal nut further in for exactly one quarter-turn.
The hexagonal nut is now exactly 0.2 mm below the surface of the
door leaf.
Mounting the inner fitting
Hold the outer fitting.
Press the outer fitting against the door leaf.
Place the lock square of the inner fitting in the follower.
Hold the outer fitting.
Press the outer fitting against the door leaf.
Feed the connection cable through the cylinder cutout.
Move the ribbon cable away to the left.
Hold the outer fitting.
Push on the inner fitting.
Page 26
1
2
3
¼
+
= 0,2 mm
1
2
3
¼
+
= 0,2 mm
D00396
01
