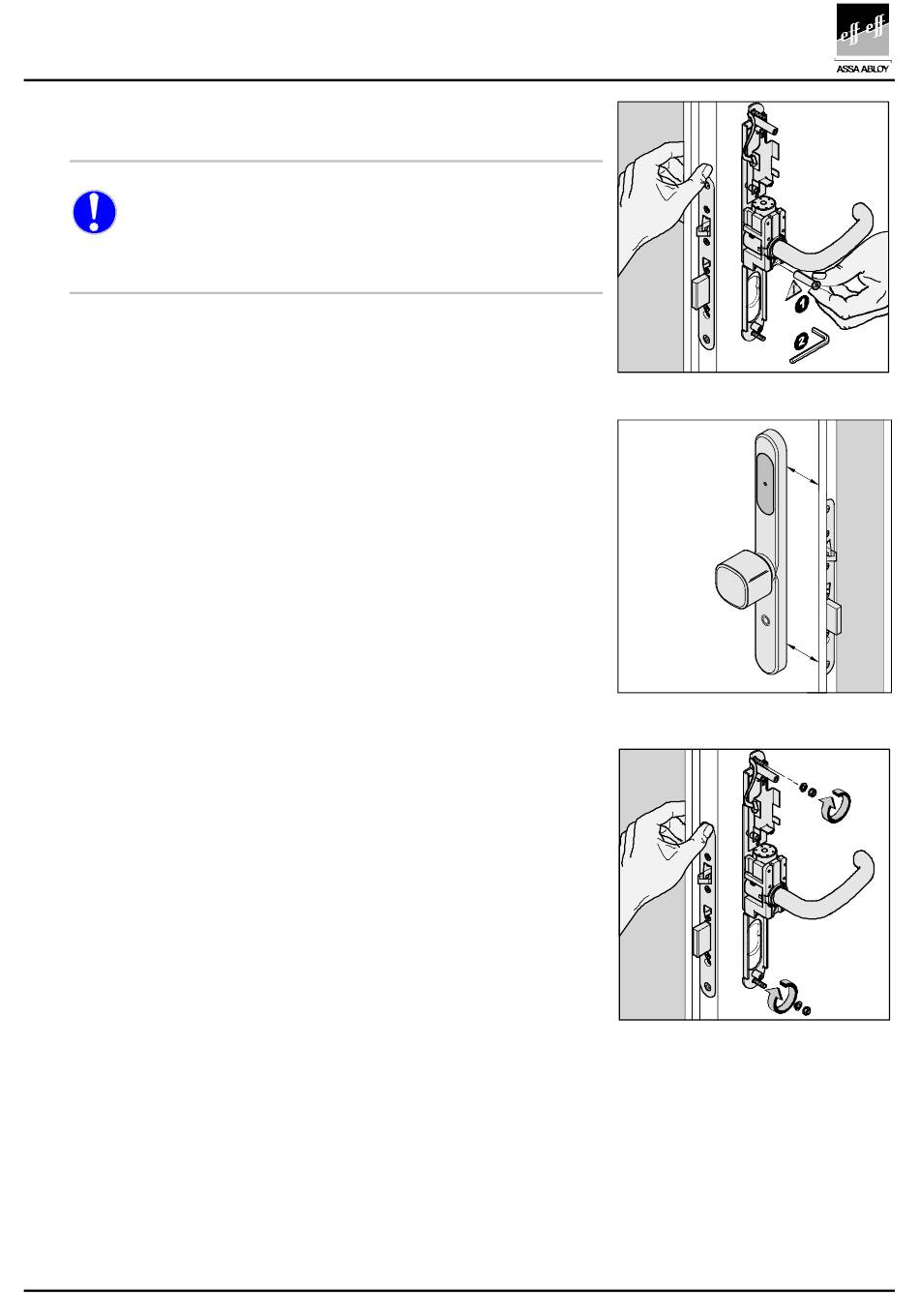

Hold the outer fitting.
Press the outer fitting against the door leaf.
Caution
Damage to the thread due to incorrectly positioned sleeve nuts.
Screw the sleeve nut onto the center threaded pin by hand.
The sleeve nut must not tilt. It must be easy to screw in.
Only use a hexagon wrench to tighten the sleeve nuts
Aligning the door fittings
Align the outer and inner fittings.
Tighten the sleeve nuts.
Final assembly
Fix the inner fitting in place with a spring washer and a hexagonal nut.
D00396
01
Mounting and installation
Page 27
