Pull the insertion tool off again.

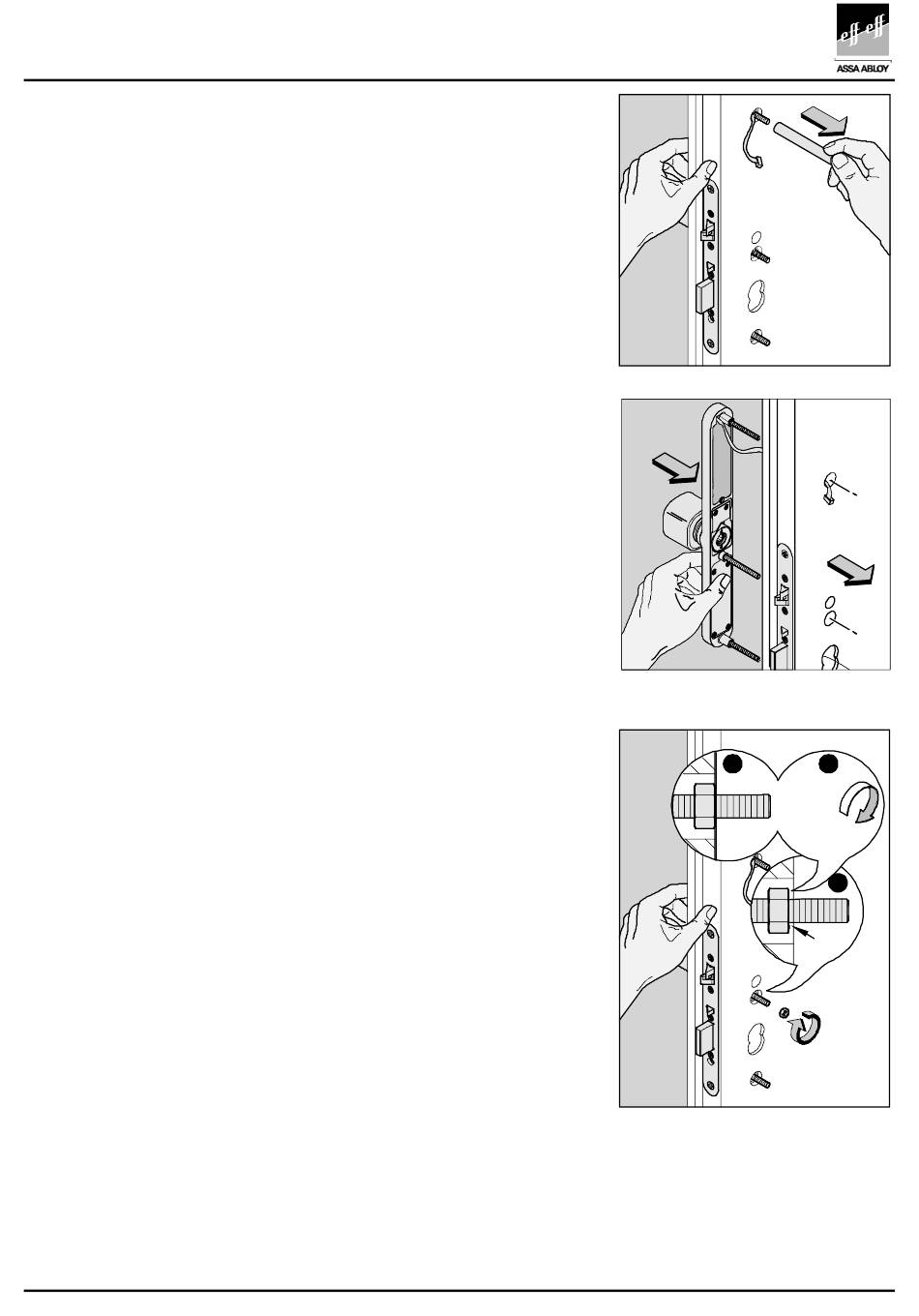

Mounting spacer nuts
Place the outer fitting on the door leaf.
Hold the outer fitting.
Press the outer fitting against the door leaf.
Screw a hexagonal nut on the central stud bolt.
Tighten the hexagonal nut until it disappears completely into the hole
and lies flush with the surface of the door leaf.
Screw the hexagonal nut further in for exactly one quarter-turn.
The hexagonal nut is now exactly 0.2 mm below the surface of the
door leaf.
D00396
01
Mounting and installation
1
2
+ ¼
3
= 0,2 mm
