USER INFORMATION / FUNCTIONS
ATTENTION! Do not underestimate the weight of the
speaker (max. 50 kg); in particular secure the
loaded expandable rod with rail 11, or with fixed handle
during height adjustment.

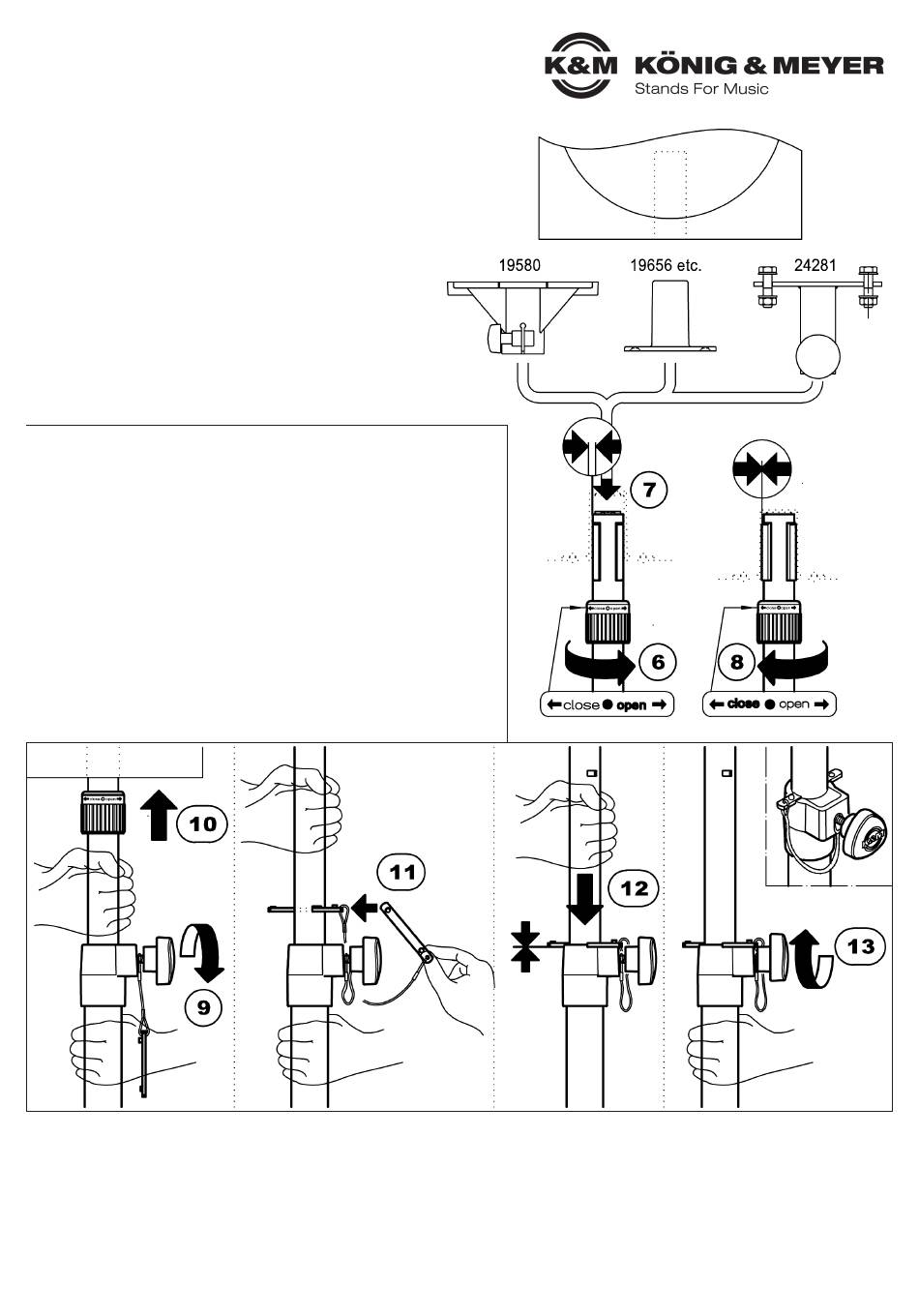

AFFIX THE SPEAKER TO THE STAND
6 Turn the expanding mandrel system - ring lock to the
6 right (direction OPEN) to the smallest diameter.
7 Place the speaker on the expanding mandrel system.
8 Now turn the ring lock to the left
8 (direction CLOSE) until the splints fit tightly.
ADJUST THE DIRECTION OF THE SPEAKER
Open ring lock 6 and adjust the speaker in the desired
direction.
Re-tighten the ring lock 8 (direction CLOSE).
EXTEND / RETRACT SPEAKER
ROLES
First person (F.P.): - holds the stand, operates the security rail and
First person (F.P.): - clamping screw;
Second person (S.P.): - operates the expandable rod and extends or
Second person (S.P.): retracts the speaker
9 F.P.: hold the basic rod and loosens the clamping screw of the
(8) clamping bracket
10 S.P.: extend the speaker to the desired height
11 F.P.: place the rail through the slot (Pins UPPER)
12 S.P.: lower the expandable rod carefully until the rail sets on the
S.P.: bracket
13 F.P.: tighten the clamping screw (Manual strength is sufficient)
The retraction of the speaker takes place in the opposite order.
IMPORTANT: ensure that the F.P. immediately tightens the clamping screw
13, in the event the expandable rod cannot be held securely byn the S.P..
INSPECTION, MAINTENANCE, CLEANING
- Careful handling of the stand maintains the ability to extend and retract the stand, the loadability and the safety of the installation.
- Look for possible dangers/risks (pinching, colision, tipping) during maintenance work. Maintenance is always to be performed when
- the system is not under strain.
- For cleaning and maintenance purposes it is best to utilize a damp cloth and a non-abrasive cleaning solvent.
ERROR IDENTIFICATION (E) and CORRECTION (C)
(E): Stand rocks (C): Remove surface unevenness/ Place legs in the maximum extended position and tighten the clamping screw
(E): Expandable rod rocks or retracts due to the load (C): Install the security rail, tighten the clamping screw
(E): Speaker teeters on the expanding mandrel system (C): Re-tighten the ring lock / check speaker mounting adapter (maximum ø 37 mm)
(F): Speaker is difficult to adjust (B): Lift the speaker up a bit during the adjustment. / Loosen ring lock 6 a little more.
