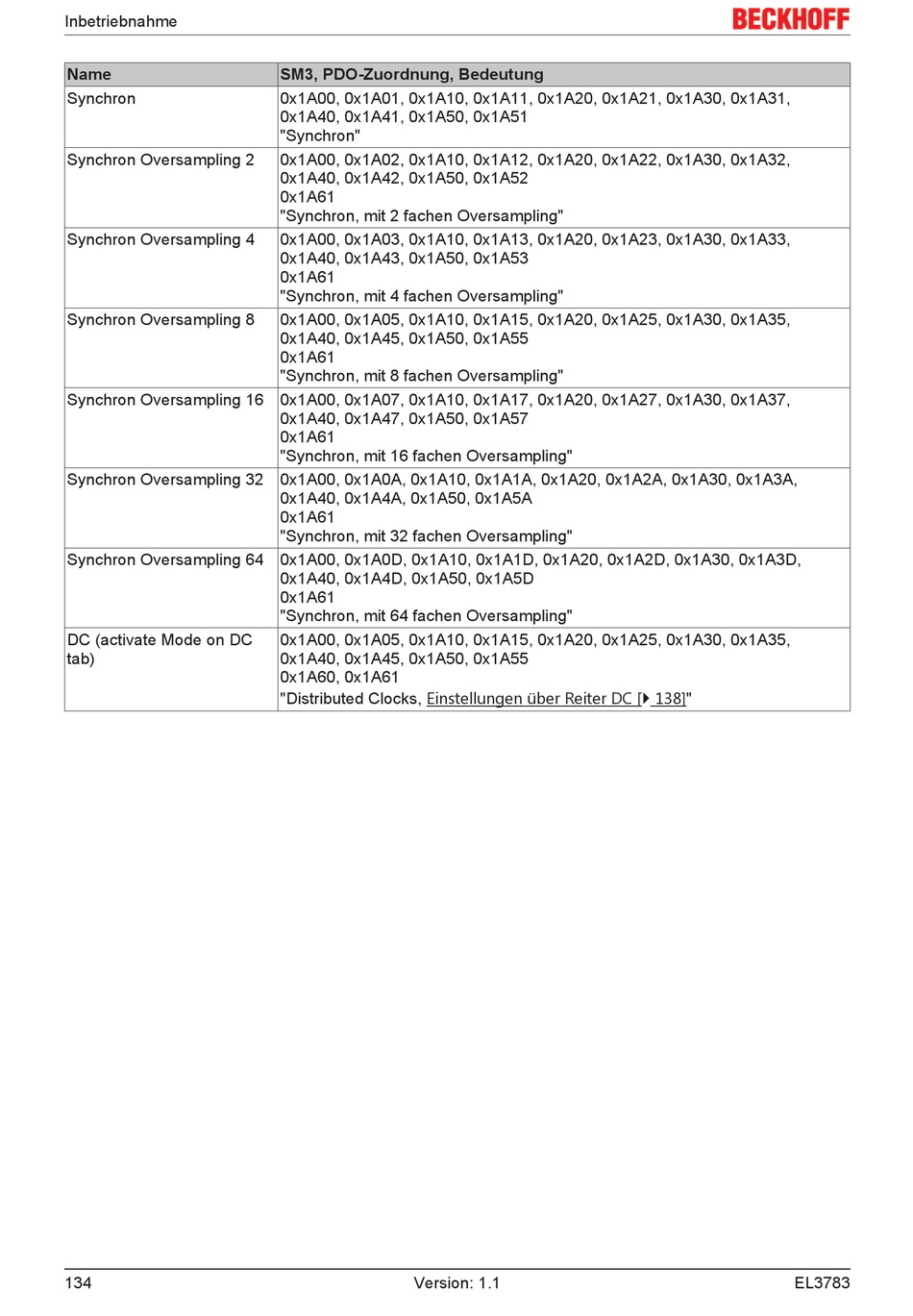

Beckhoff EL3783 Dokumentation Seite 134

Inbetriebnahme
Name
Synchron
Synchron Oversampling 2
Synchron Oversampling 4
Synchron Oversampling 8
Synchron Oversampling 16 0x1A00, 0x1A07, 0x1A10, 0x1A17, 0x1A20, 0x1A27, 0x1A30, 0x1A37,
Synchron Oversampling 32 0x1A00, 0x1A0A, 0x1A10, 0x1A1A, 0x1A20, 0x1A2A, 0x1A30, 0x1A3A,
Synchron Oversampling 64 0x1A00, 0x1A0D, 0x1A10, 0x1A1D, 0x1A20, 0x1A2D, 0x1A30, 0x1A3D,
DC (activate Mode on DC
tab)
134
SM3, PDO-Zuordnung, Bedeutung
0x1A00, 0x1A01, 0x1A10, 0x1A11, 0x1A20, 0x1A21, 0x1A30, 0x1A31,
0x1A40, 0x1A41, 0x1A50, 0x1A51
"Synchron"
0x1A00, 0x1A02, 0x1A10, 0x1A12, 0x1A20, 0x1A22, 0x1A30, 0x1A32,
0x1A40, 0x1A42, 0x1A50, 0x1A52
0x1A61
"Synchron, mit 2 fachen Oversampling"
0x1A00, 0x1A03, 0x1A10, 0x1A13, 0x1A20, 0x1A23, 0x1A30, 0x1A33,
0x1A40, 0x1A43, 0x1A50, 0x1A53
0x1A61
"Synchron, mit 4 fachen Oversampling"
0x1A00, 0x1A05, 0x1A10, 0x1A15, 0x1A20, 0x1A25, 0x1A30, 0x1A35,
0x1A40, 0x1A45, 0x1A50, 0x1A55
0x1A61
"Synchron, mit 8 fachen Oversampling"
0x1A40, 0x1A47, 0x1A50, 0x1A57
0x1A61
"Synchron, mit 16 fachen Oversampling"
0x1A40, 0x1A4A, 0x1A50, 0x1A5A
0x1A61
"Synchron, mit 32 fachen Oversampling"
0x1A40, 0x1A4D, 0x1A50, 0x1A5D
0x1A61
"Synchron, mit 64 fachen Oversampling"
0x1A00, 0x1A05, 0x1A10, 0x1A15, 0x1A20, 0x1A25, 0x1A30, 0x1A35,
0x1A40, 0x1A45, 0x1A50, 0x1A55
0x1A60, 0x1A61
"Distributed Clocks, Einstellungen über Reiter DC [} 138]"
