Connection

Before connecting or disconnecting the cables, the
supply lines to the battery and mains supply must be
disconnected!
Make sure that all plugs have clicked in place.

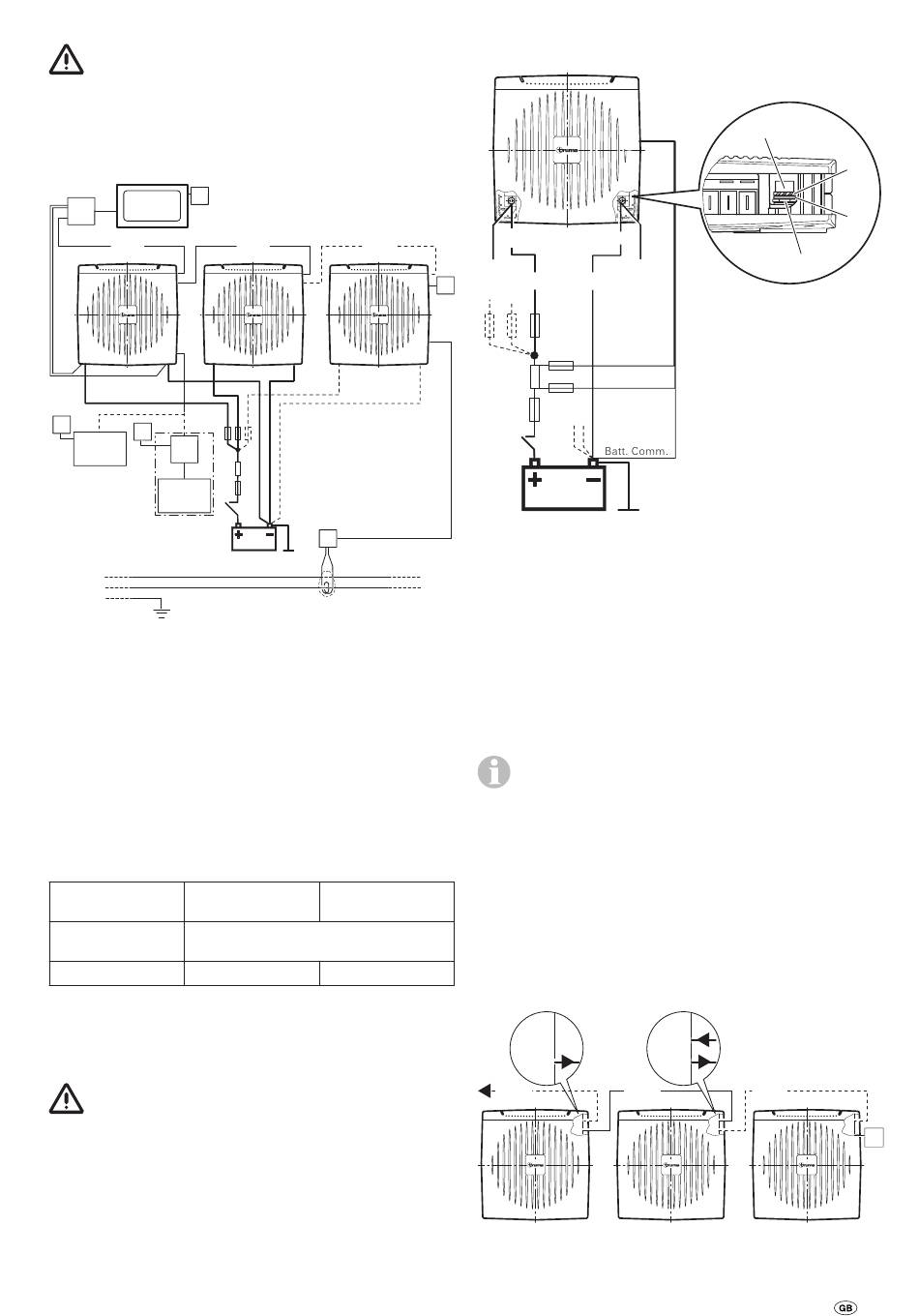

Connecting diagram

R
TP
Y
CAN
PM
PM
F
T
A
Truma
Combi
AVI
...
Rs
Alde
Compact
3010
L
230 V ~ N
PE
TP Vicon 2 Touch Panel
PM Powermodul
AVI Alde-Vicon-Interface
A Alde room temperature sensor
CAN CAN-BUS
F Fuse
R Terminating resistor 120 Ω
Rs Shunt
Y Y-Adapter
T Truma room temperature sensor
Tr Toroidal transformer
Ü Adapter (overload protector)

Cable length and cross-section

Cable Cable
length
Must be specified depending on the
W1
vehicle / configuration.
CAN
Energy source connection
Connect the device with the energy source (e.g. battery,
generator or automatic charger). Pay attention to correct
connection of the pole.
Fuses must be attached near to the source of energy
(e.g. battery, generator or automatic charger). Only
use the stipulated cable cross-sections (see table) and fuse
ratings!
CAN CAN
...
PM
F
S
Ü
12 V
Tr
Cable
cross-section
– 25 m ≥ 0,22 mm²

Wiring diagram 12 V voltage supply

Example: 12 V voltage supply for a Power Module.
+ 12 V
+Y
W1 W1
R
F
S5
F
Rs F
F
S
12 V
1 M 5 x 10 hexagon socket, max. torque 2.2 Nm
2 Serrated washer for M5
3 Washer
4 12 V connection using eyelet connector (M5) max. 16 mm²
F Fuse
Rs Shunt
S Main switch
Y Y-adapter 12 V connection using eyelet connector
Automatic Charger Truma BC 630 IU
connection
The Automatic Charger Truma BC 630 IU must be con-
nected using a LKL adapter (part no. C30000-00500).
Power Module – Power Module connection
The COM1 and COM2 connections can be used both as an
input or output.
– Connect the (PM) modules with each other. Connect
the COM2 connection with the COM1 connection of the
following module.
– It is compulsory to connect the COM2 connector of the last
module with a terminating resistor (part no. C30000-00300)
COM1
COM2
CAN
COM1
COM2
PM
Strain relief for the cable is provided by the cover.
1 ≤ 2.2 Nm
S3
–
-Y
Curr. Mon.-
Curr. Mon.+
COM1
COM2
CAN CAN
COM1
COM2
PM PM
2
3
4
COM1
COM2
R
