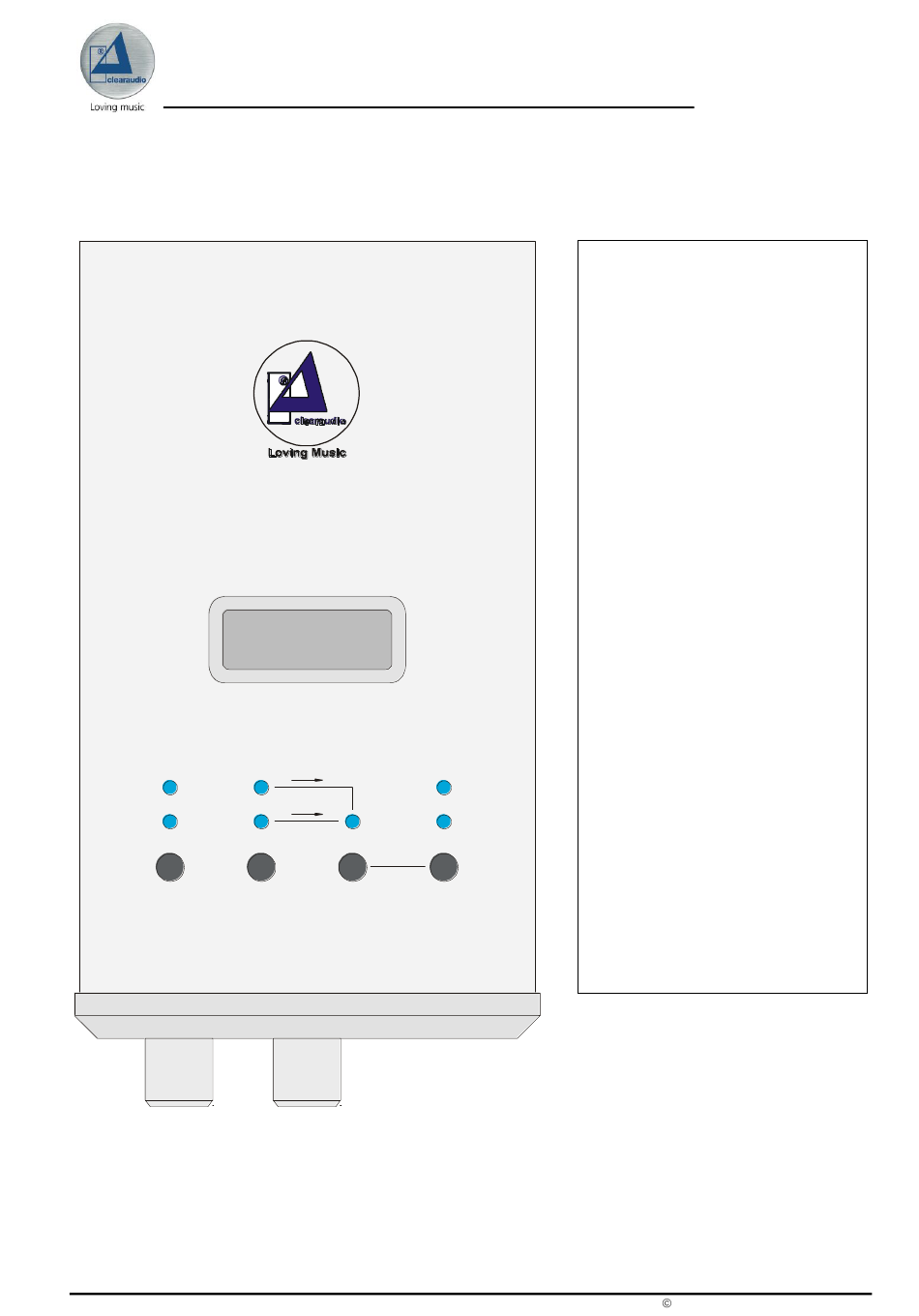

3. Operating elements

azimuth optimizer
MC R
MM L
MM / MC
0dB-adjustment
Page / Seite 5
R L
L R
CT
AZIMUTH
L / R CROSSTALK / dB LEVEL / mV
headphone-volume control
Azimuth Optimizer
Button MM/MC: Switches the
input sensitivity / amplification.
Position MM = 40dB,
Position MC = 60dB
Input impedance/Capacity:
MM = 47kOhm/220pF
MC = 400Ohm/220pF,
(the input impedance is
adjusted automatically).
Button L/R: Switches to the
signal-carrying channel of the
test-record
Button Crosstalk: Activates
the operation mode „Crosstalk"
Button „Level": pushing the
button 'Level' will in
combination with the test-
record show the output voltage
of your cartridge in the display
in mV.
Pushing both buttons 'Level'
and 'Crosstalk'
simultaneously, the main
operation mode switches
between "Phono" and
AZIMUTH
"Measurement".
PHONO
In the measurement-operation
mode the LED "Azimuth" glows
blue
