6.2 Bracket fastening

- Once you have fastened the tail bracket [14] following the measurements indicated on page
26, fasten the head bracket [15] to the gate.
NOTE: shorten the tail bracket [14] by following the instructions on page 26.

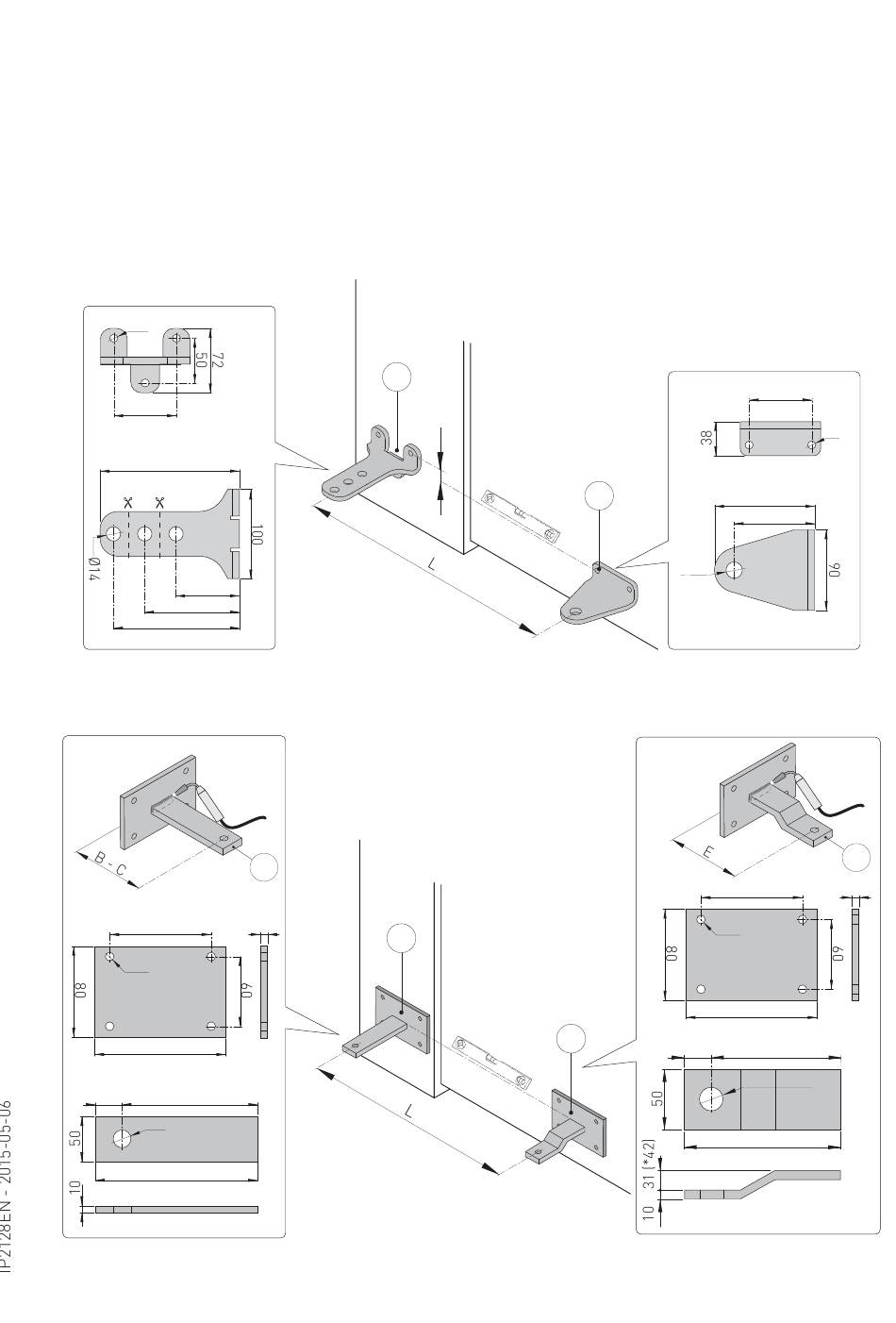

- When the gate is completely closed, place the head bracket [15] near the piston attachment
complying with measurements [E] and [L]. Make sure that the head brackets [15] and tail
brackets [14] are perfectly level as shown in the following figures and fasten the head bracket
[15] to the gate.
LUXO3BH
Ø9
70
152
82 (B - C)
112 (B - C)
142 (B - C)
LUXO3B-LUXO4BH-LUXO5B-LUXO5BH-LUXO5VBH
90
Ø9
115
15 165
Ø14
180
14
32
14
6
14
15
15
27
70
112
90
Ø18
90
Ø9
115
20 115
Ø18 (*22)
135
* LUXO5VBH
Ø9
15
6
