Connecting the monitor and turning the monitor on and off

CAUTION!
- When connecting, ensure that both the monitor
and computer are switched off.
- Be careful not to overly bend the cable or add
extension cords as this could lead to a
malfunction.

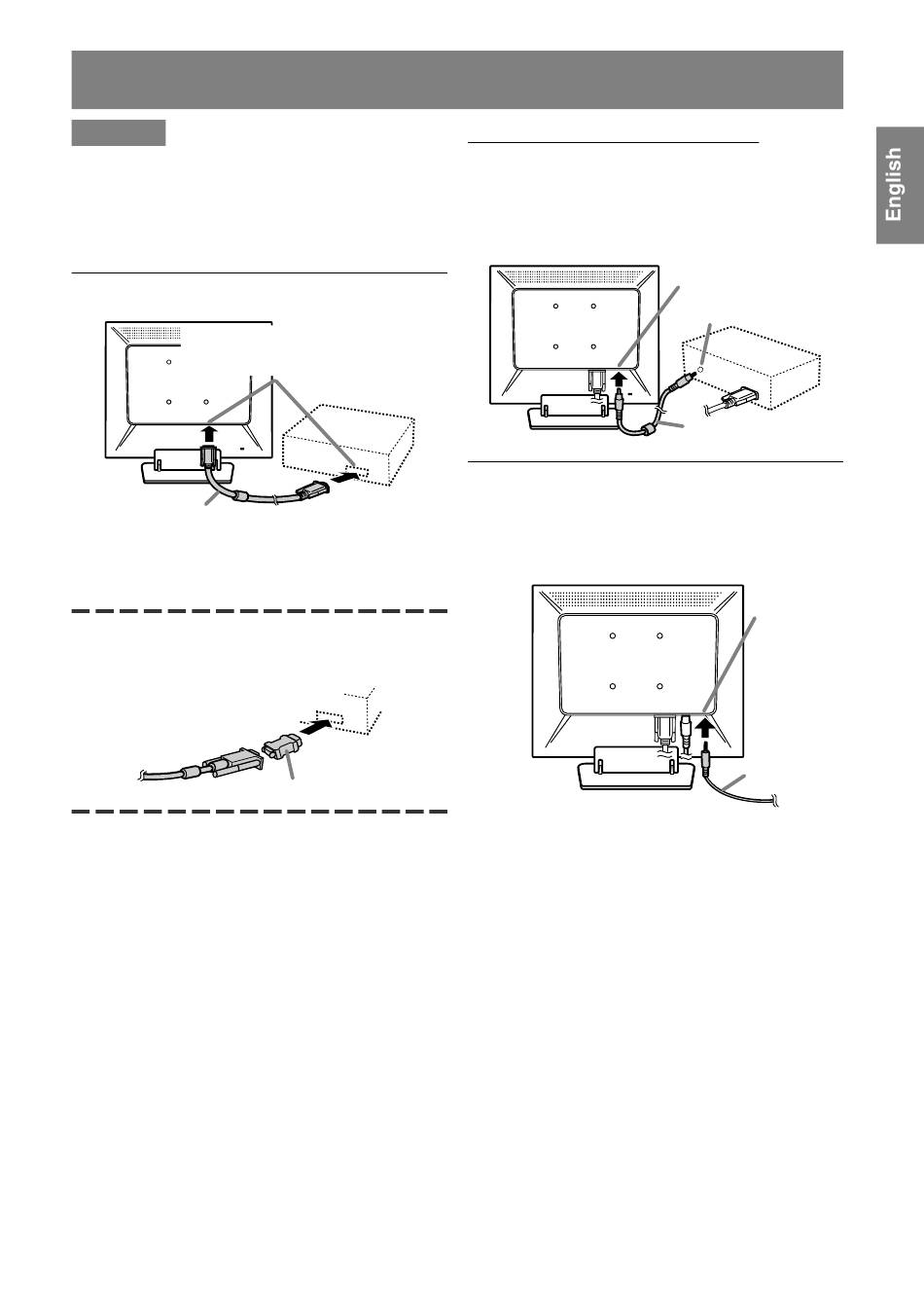

Connecting the monitor to a computer

Analog RGB terminal
(Mini D-Sub15 pin, 3 row)
Analog signal cable
- Paying attention to connector direction, firmly
insert the signal cable to terminal, and then
tighten the screws at both sides.
If connecting to a D-sub15 pin 2 row Apple Power
Macintosh, attach a Macintosh conversion adapter
(commercially available) to the analog signal cable.
Macintosh conversion adapter
Note:
- When connecting to a notebook, if the notebook
computer's screen is set to display at the same
time, the MS-DOS screen may not be able to
display properly. In this case, change the settings
to display only on the monitor.
Connect the accessory audio cable
When the accessory audio cable is connected to the
audio output terminal of the computer, the sound of
the connected computer is output from the monitor
speakers. You can also use the headphone jack of
the display.
Connection of headphones
(commercially available)
Headphones (commercially available) can be
connected.
Note:
- When the headphones are connected, no sound
can be heard from the monitor speakers.
11
Audio input
terminal
Audio output terminal
Audio cable
Headphone
terminal
Head-
phones
