PROGRAMMING THE GATE TRAVEL STROKE AND PAUSE TIME
The control unit autolearns the working and pause times during the programming procedure.
The programming procedure involves repeated operation of the P/P control (10, fig. L), or otherwise the P/P control (terminal
19, fig. M) or the remote control (if memorised) can be used.
Important notes before programming:
A. Power up the control unit and check that the control inputs are operating correctly by checking the relative LEDs (the LEDs
of the NC contacts must be on).
B. Remove all obstacles from the gate's operating zone.
C. The limit switch LEDs (1, fig. L) must be on when the gate is half-open. When the gate is moved to the closed travel limit
position, one of the LEDs (e.g. LD2) must go out; the other LED (e.g. LD3) must go out when it reaches the open travel limit
position.
For precise stopping on the limit switch positions, activate the deceleration function.

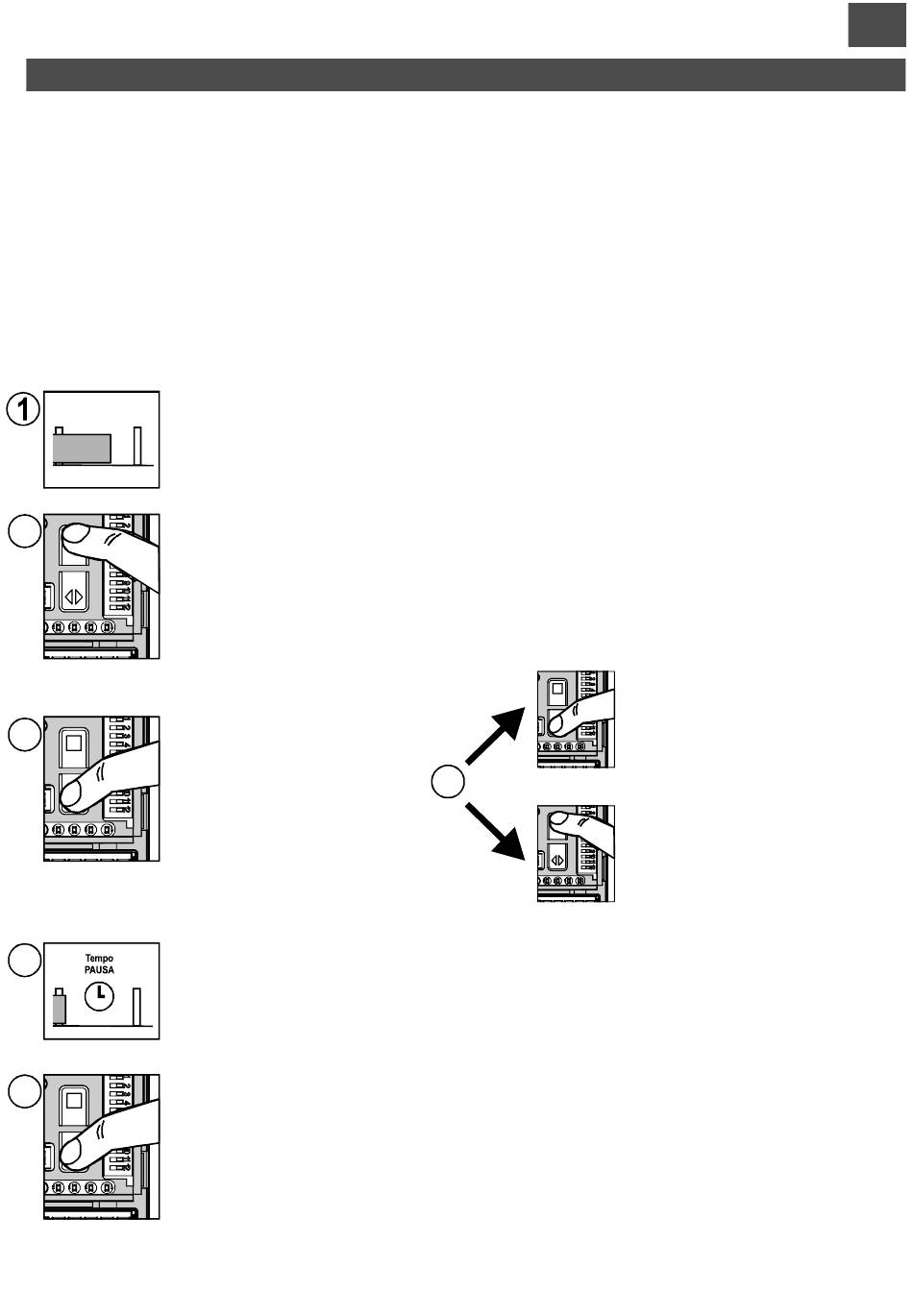

Programming:
Place the gate manually in mid-travel position.
Press the PROG button (6, fig. L) and hold it down for about 3 seconds, until LED LD1 (5, fig. L)
2
remains constantly on.
The control unit is now in programming mode.
Press the P/P button (10, fig. L).
3
The gate will move for a few
seconds.
The gate reaches the closed position and automatically starts to open again, stopping on the open
5
travel limit position.
The control unit now starts to memorise the pause time.
After the pause time required, press the P/P button. The gate closes again, stopping on the closed
6
travel limit position. LED LD1 goes out to indicate the end of the programming procedure.
4
- If it is travelling in the closing
direction, press the P/P button again.
- If it is travelling in the opening
direction, press the PROG button (6,
fig. L) to close the gate.
