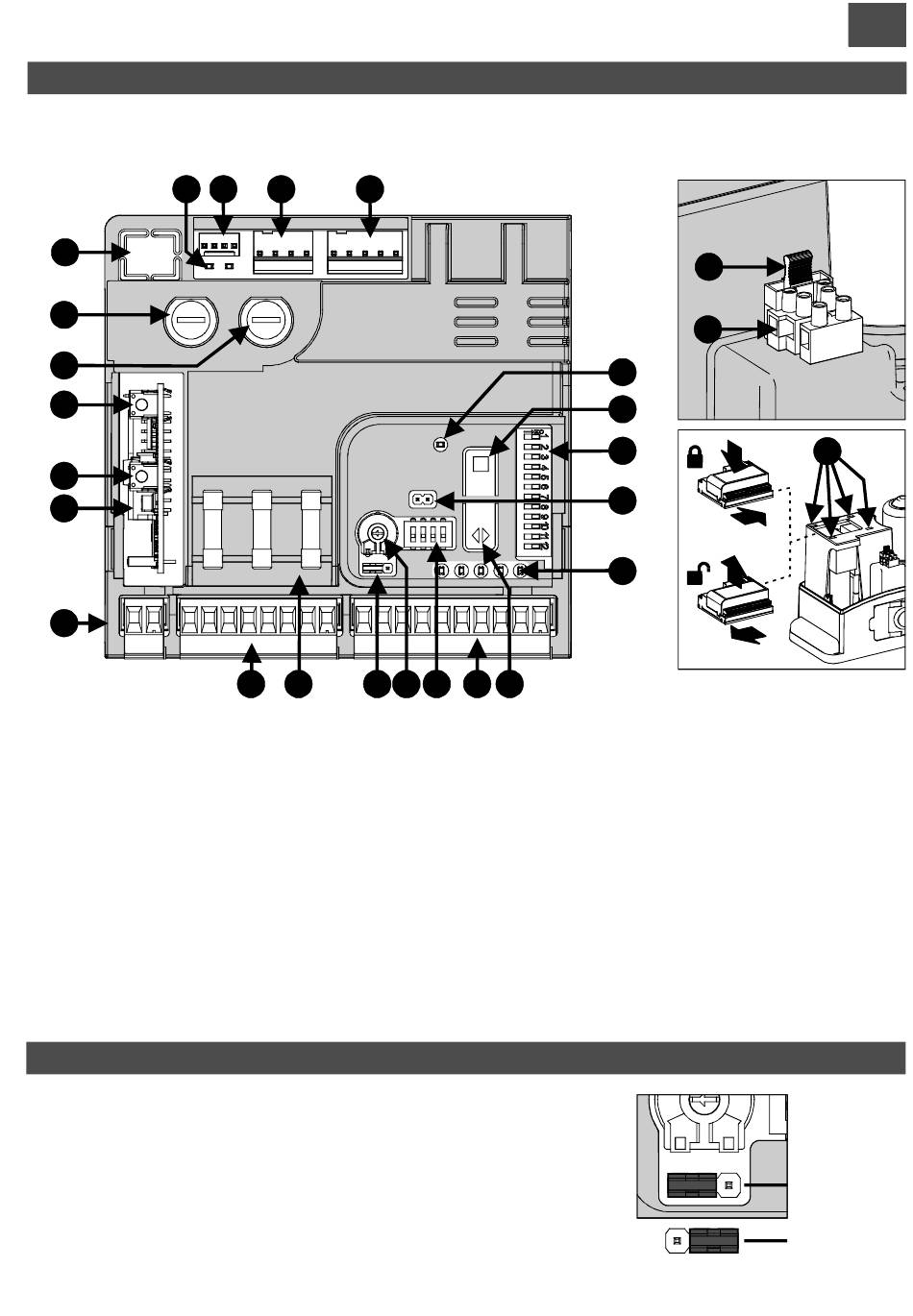

CONTROL UNIT - DESCRIPTION OF PARTS
Fig. L
1
23
22
21
20
19
18
17
1) Limit switch sensor LED
2) Magnetic limit switch sensor connector
3) 24V power supply connector
4) Motor + encoder connector
5) Programming LED (LD1)
6) Programming and Stop button
7) Function dip-switches
8) ECU reset. Short-circuiting the 2 pins for a moment is
equivalent to cutting off and restoring the power supply.
9) Input LEDs (on = input closed)
10) Step-by-step operation button
11) Input terminal board
12) Safety device disabling dip-switches
13) Motor force adjustment trimmer
24V OUTPUT OPERATION JP1 (terminals 5 and 6)
Before making the connections, decide whether to fit JP1, which modifies operation
of the 24V output (terminals 5 and 6).
- With JP1 fitted in the ON position, the output is always active and can be used to
power auxiliary devices and/or photocells.
- With JP1 fitted in the Standby position the photocells powered using this output
are switched off at the end of a complete cycle. This set-up reduces the power
drawdown and considerably extends the working life of the infrared transmitter.
2 3 4
16 15 14 13
ON
1 2 3 4
12 11 10
14) Photocell manual power supply activation jumper JP1
15) Spare fuses
16) Output terminal board
17) Radio antenna input terminal board
18) OC2 receiver connector
19) OC2 programming key 2 (optional)
20) OC2 programming key 1 (P/P "step-by-step")
(optional)
21) Motor fuse (16A fast)
22) Auxiliary devices and ECU power supply fuse (2A fast)
23) Programmer connection
24) 230V mains power fuse (T 2A)
25) 230V mains power terminal board
26) Snap connection for ECU
24
25
5
6
7 I
8
II
II
9
I
JP1
ON
GB
26
Stand-by
