3.2.2 Mounting the Holder for Shaking Flasks

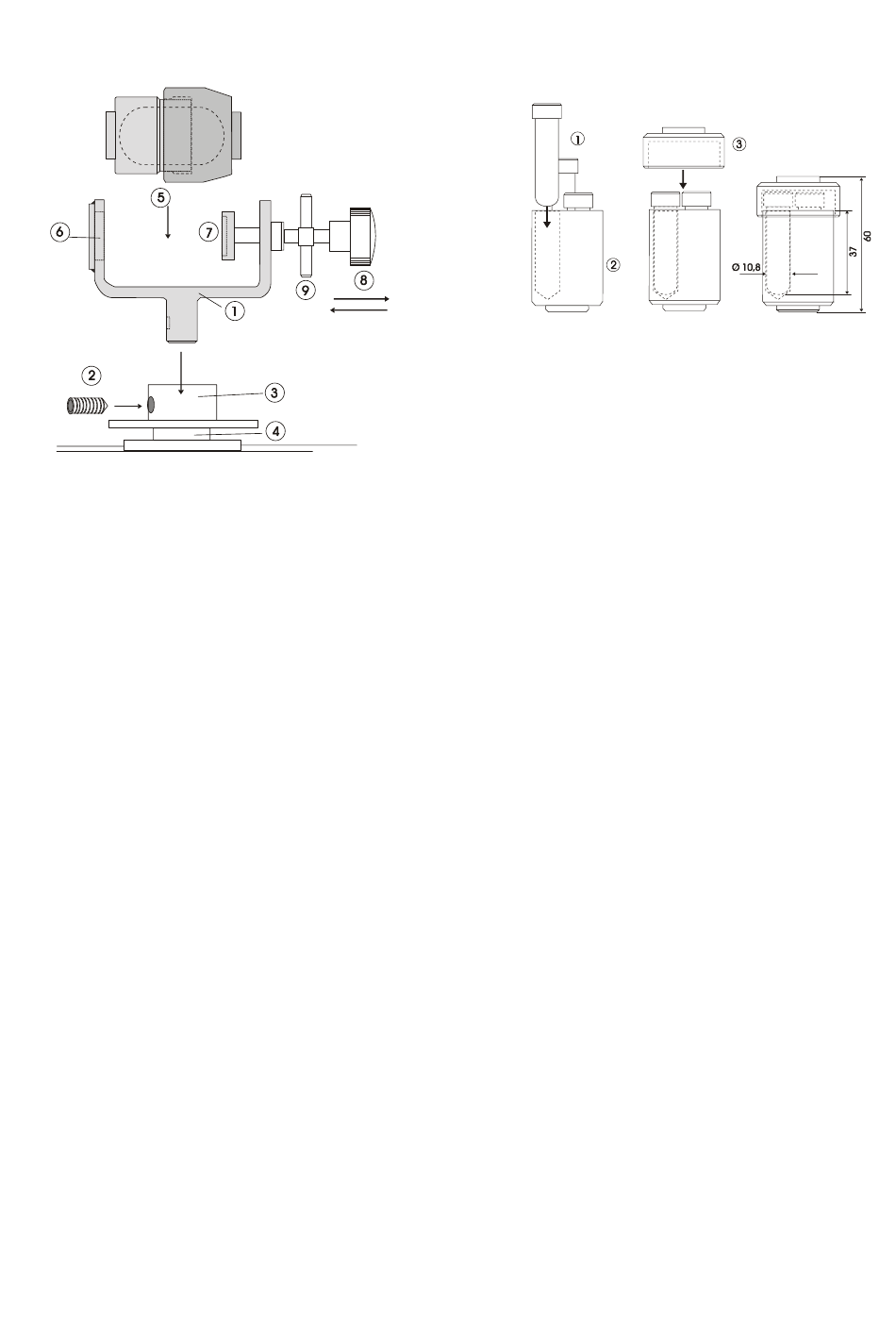

Fig. 3: Mounting the holder
(1) Holder for shaking flasks
(2) Socket head screw
(3) Cover of connector
(4) Connector
(5) Shaking flask
(6) Locating hole
(7) Locating disc
(8) Head clamp bolt
(9) Locking nut or thumb screw
•
For PTFE- and stainless steel flasks of 3 ... 7 ml you can
use the holder delivered with the homogenizer.
•
For the PTFE flask of 20 ml, for the container for
disposable test tubes, for the reaction vials with
standing rim and for the cryo tubes, you will need to
use the holder cat.-no. 8531897.
•
For micro well plates use the tray cat.-no. 8531900
(see next page).
1. Unscrew socket head screw of the connector (4) and
insert the holder for shaking flasks (1). Lock holder with
socket head screw (2).
2. Unscrew the locking nut or thumb screw (9) of the
holder (5) and turn the head clamp bolt anticlockwise
until the flask or container can be inserted.
3. Insert the shaking flask into the holder, with its bottom
part directed to the locating hole of the holder. Turn
head clamp bolt clockwise to locate the flask. Tighten
the bolt hand-tight.
4. Lock the head clamp screw with the locking nut or
thumb screw

3.2.3 Using Disposable Test Tubes

Fig. 4: Container with disposable test tubes
(1) Disposable test tubes
(2) Receptacle for test tubes
(3) Cap
•
For disposable test tubes, the shaking container cat.-no.
8531889 will be used together with the special holder,
cat.-no. 8531897
1. Mount special holder into the connector as shown for
the holder of standard flasks, see 3.2.2
2. Fill sample and process materials into the disposable test
tubes. Close test tubes. Refrigerate, if necessary.
3. Place test tubes into the container. Close container with
cap.
4. Mount container into the holder and start the unit,
see 3.2.2
•
If the container for cryo test tubes cat.-no. 8531960 or
for reaction vials 2.0 ml with standing rim cat.-no.
8531944 are to be applied you can proceed in the same
way.
