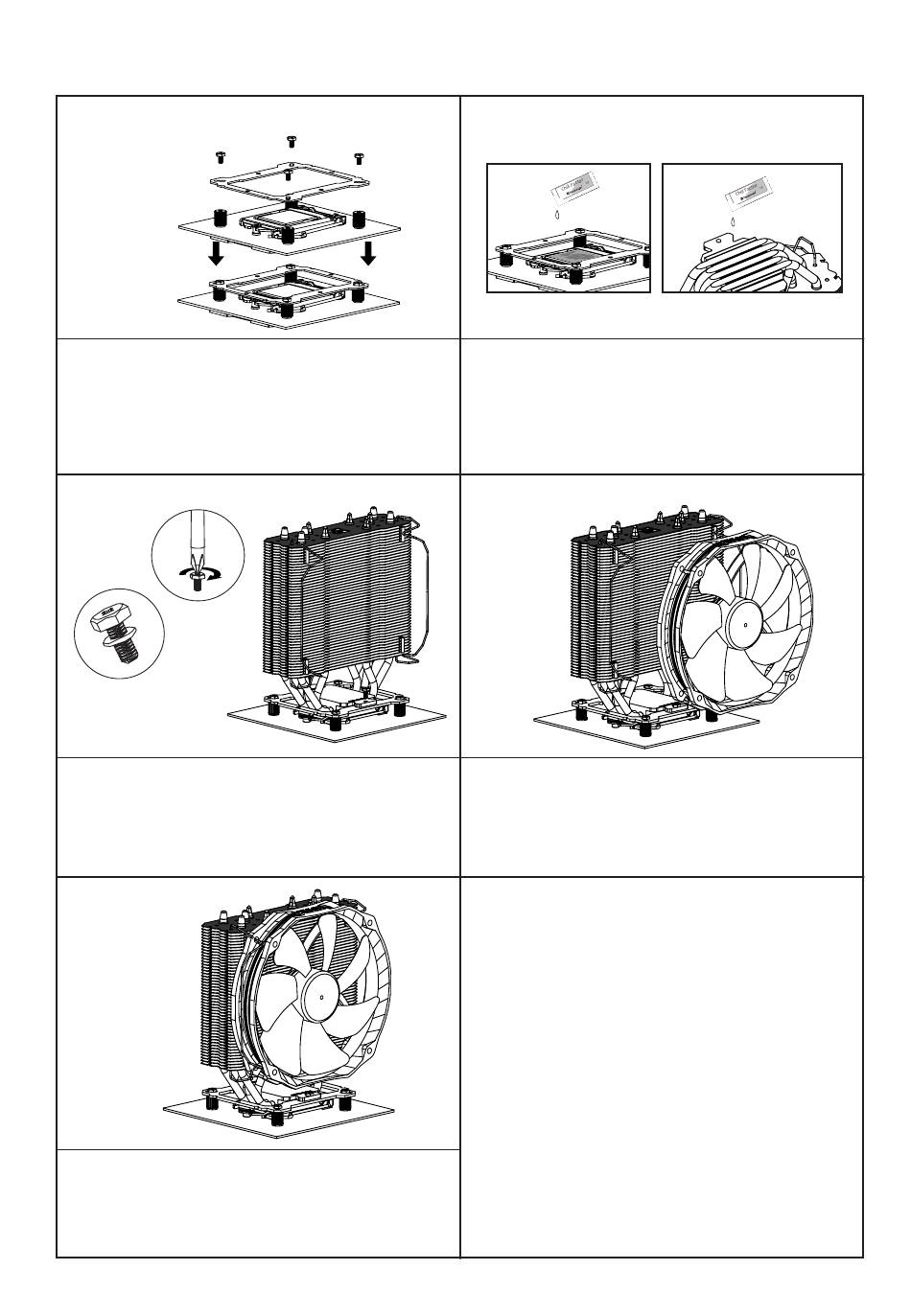

Step 5:
1
Step 5 : Anchoring Mount Installation
Place the Anchoring Mount on the Screw
Nuts. Use the four M3L6 Screws to fix the
Anchoring Mount on to the Screw Nuts.
Step 7:
Step 7: Easy Access
Place the Heatsink Body on top of the CPU.
And then use the two M3L7 Screws to secure the
Anchoring Mount"
Step 9:
Step 9: Installation completed
Plug in the fan connector to the CPU PWM Fan
socket on the motherboard. Installation complete.
The Ultimate Cooling Solutions!
4
2
3
Step 6:
Step 6 : Apply the Thermal Paste
Apply the Thermal Paste to the base of the heat-
sink and the surface of the CPU evenly. (A flat
edge, like a business card or an old credit card
would be beneficial in spreading the Thermal
Paste.)
Step 8:
Step 8: Fan Installation
Place the included TY-140 Black onto the Heatsink
Body. And then secure it with the Fan Clips, by
pulling the Fan Clips to place the four ends at the
four holes on the TY-140 Black.
