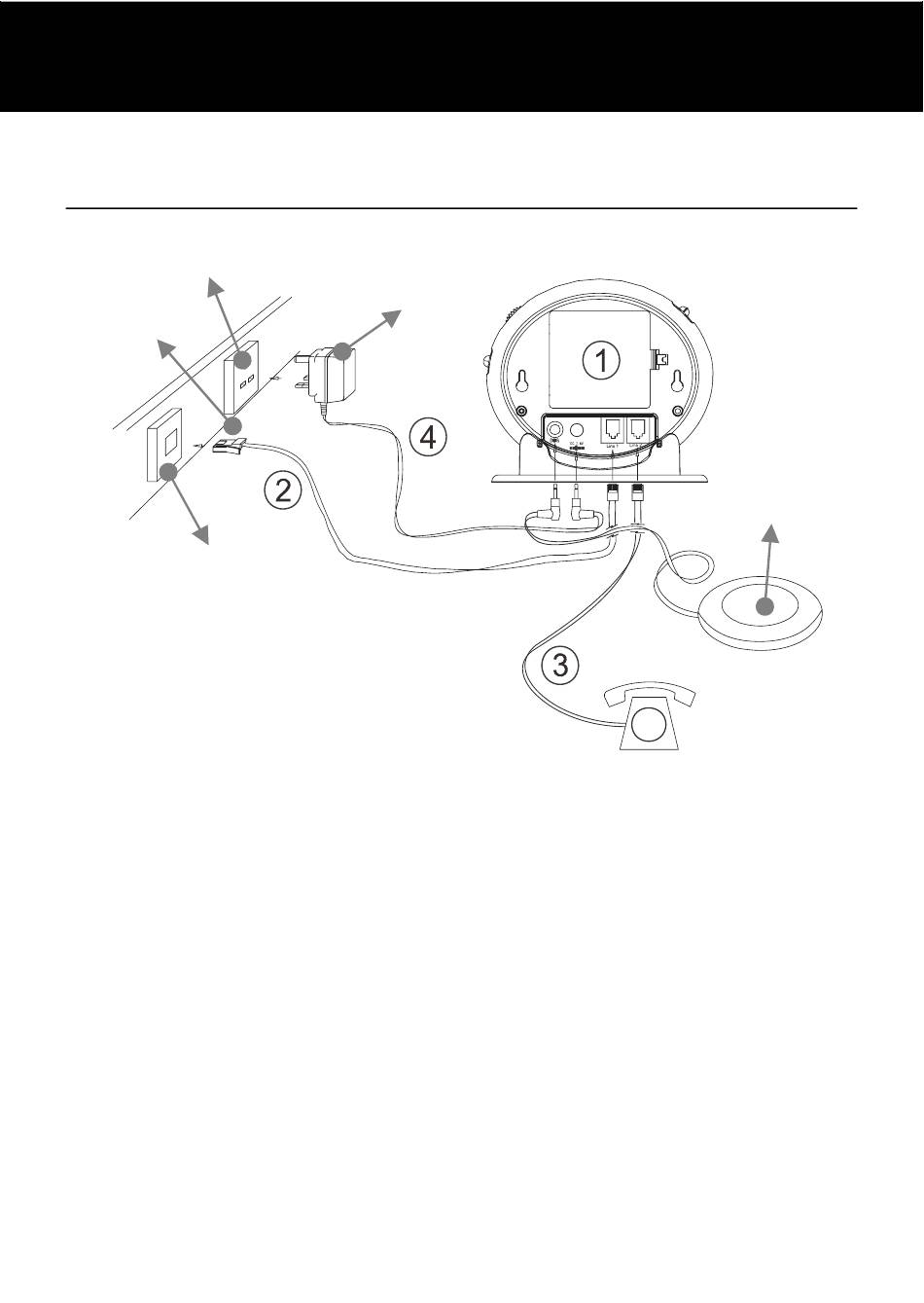

Installation (See drawing)
230V
UK plug
Telephone
plug
1) Insert 4 AA batteries into the battery compartment
(optional extra)
2) Connect the telephone line cord with the BT
connection and RJ11 connection from the PTT socket
on the wall to the jack found at the rear of the
Amplicall 10
3) Connect the RJ11 to RJ11 cable to the line jack found
at the rear of the Amplicall 10 and to your telephone.
4) Plug the power cable into the power adapter jack
found at the rear of the Amplicall 10. Plug the adaptor
into the mains supply at the wall (optional extra)

INSTALLATION

AC adaptor
(optional extra)
2
Option: Shaker
(ref.:SHAKCL_BLK)
