Steering wheel setting menu
• Enter "Setup" on main menu and then "SWC" and "Study" tab for steering wheel control
learning menu.
• To program the buttons:
1. Press and hold the functional button of the steering wheel, and then press and hold
selected function key icon on the steering wheel setting interface.
2. After the learning is successful, the learning box will be lightened, which indicates
successful learning.
3. Set subsequent buttons to be set as described until setting is completed.
4. After successful learning, click the icon
5. To reprogram the buttons or remove the mistaken learning, click
cancel the learning function of all keys.
Wiring operation for steering wheel control

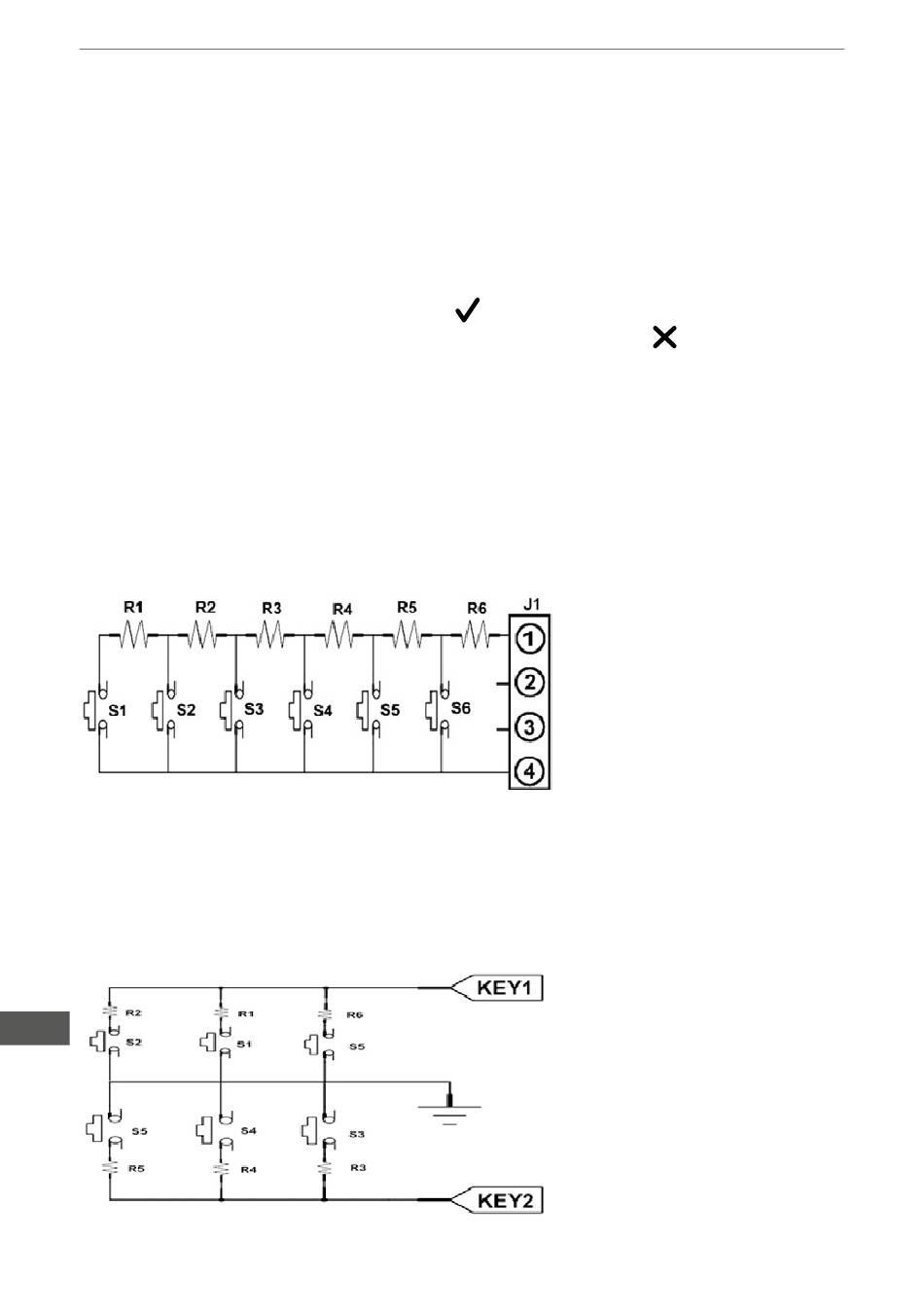

Single wiring for steering wheel control: connect KEY1 (brown) and KEYGND (black) in the wire
bundle of power cord of the system with KEY1 (brown) and KEYGND (black) in steering wheel of
cars. The schematic diagram is as the following:
Double wiring for steering wheel control: connect KEY1 (brown) KEY2 (brownish black), KEYGND
(black) in the wire bundle of power cord with KEY1 (brown), KEY2 (brownish black) and KEYGND
(black) in steering wheel of cars.The schematic diagram is as the following:
EN
26
Owner's manual
to save the learning result automatically.
Steering wheel control KEY1
Steering wheel control GND
Steering wheel control KEY1
Steering wheel control GND
Steering wheel control KEY2
icon. The system will
