6 Electrical installation
Wiring of the PROFIBUS

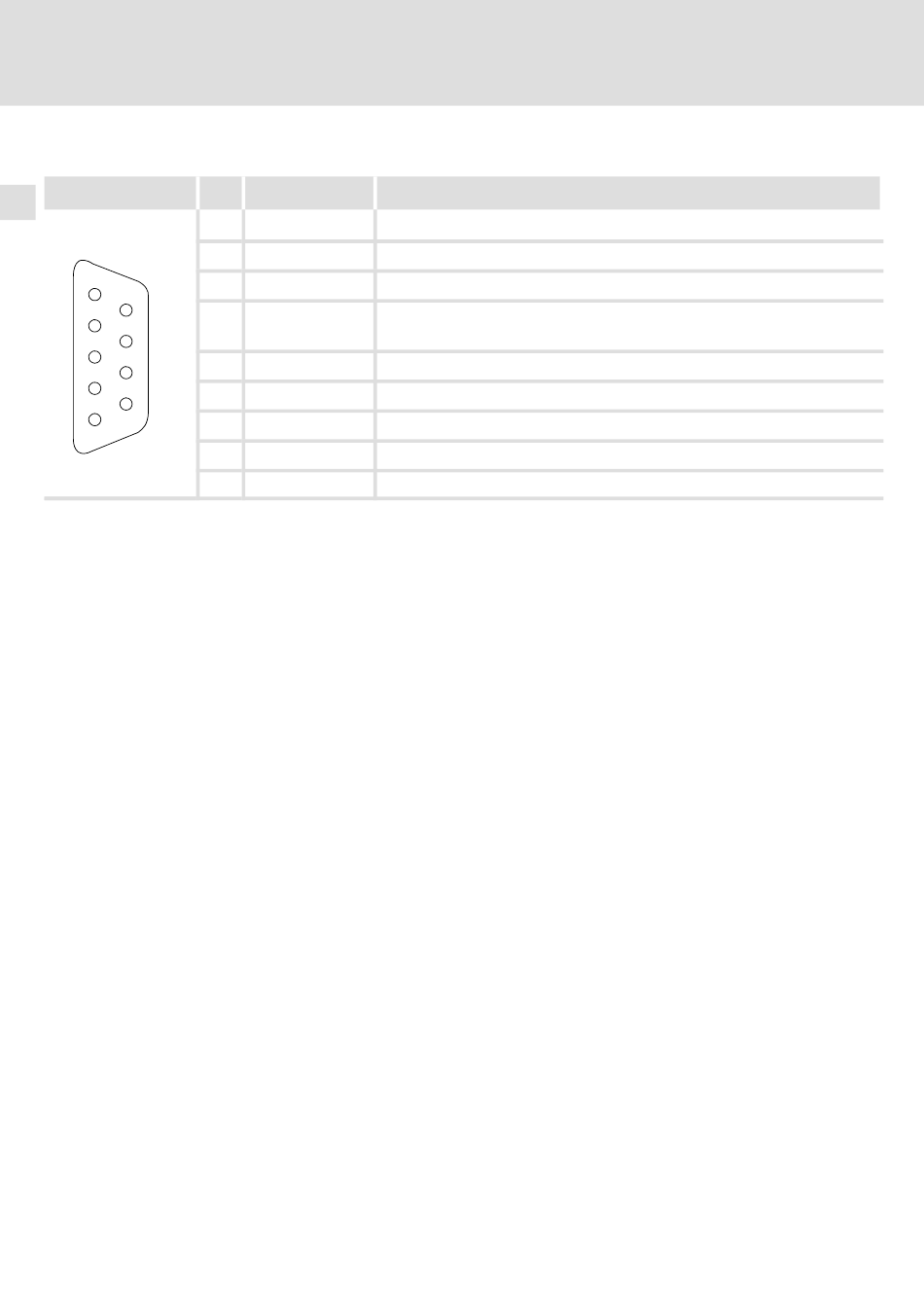

Assignment of the Sub−D socket
View Pin
1
2
1
3
6
4
2
7
3
5
8
4
6
9
5
7
8
9
42
Designation Explanation
free −
free −
RxD/TxD−P Data line B (received data/transmitted data plus)
RTS Request To Send (received data/transmitted data, no
differential signal)
M5V2 Data ground (ground to 5V)
P5V2 5 V DC / 30 mA (bus termination)
free −
RxD/TxD−N Data line A (received data/transmitted data minus)
free −
l
