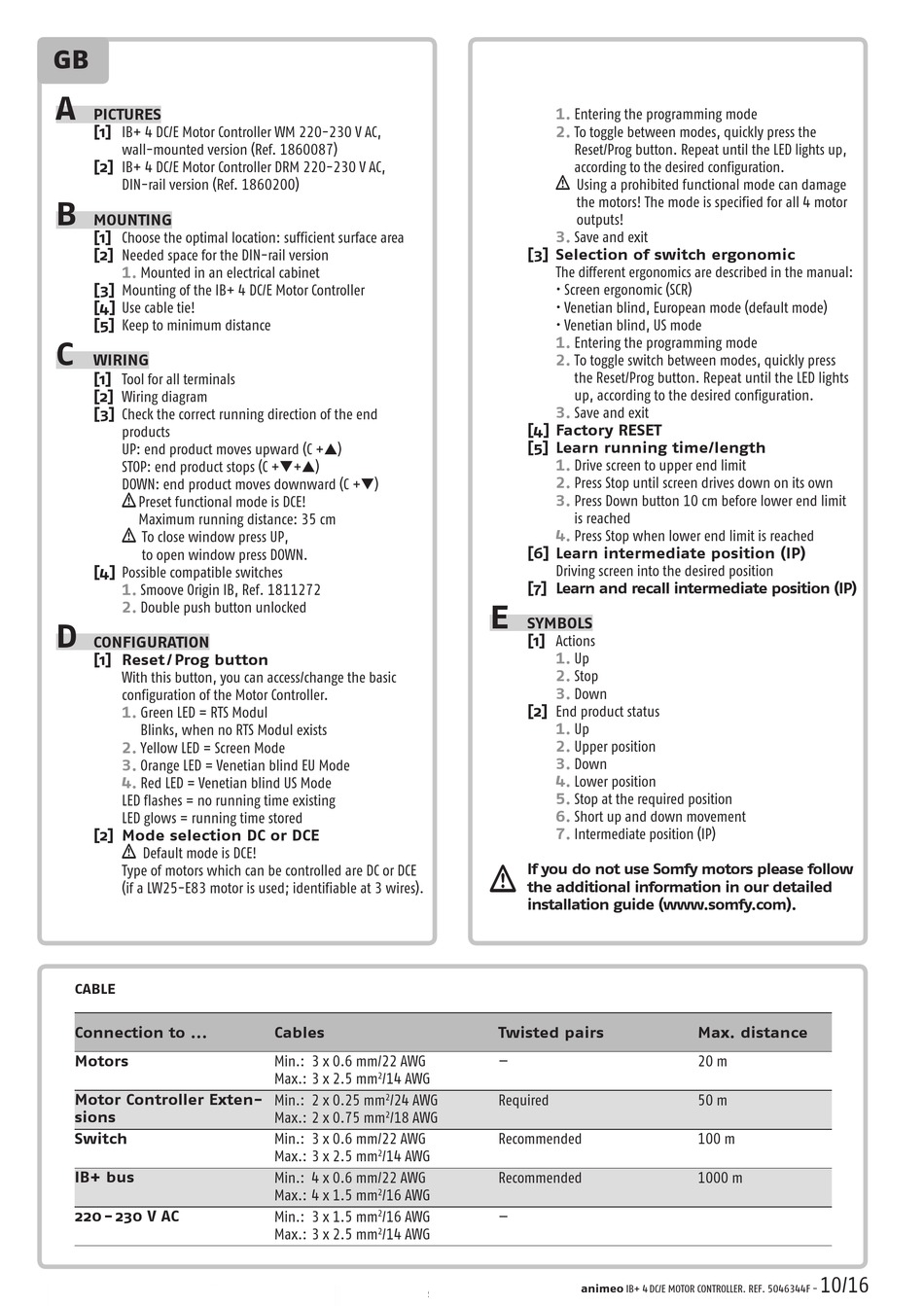

SOMFY animeo IB+ 4 DC-E WM Gebrauchsanweisung Seite 10

GB
A
PICTURES
[1] IB+ 4 DC/E Motor Controller WM 220-230 V AC,
wall-mounted version (Ref. 1860087)
[2] IB+ 4 DC/E Motor Controller DRM 220-230 V AC,
DIN-rail version (Ref. 1860200)
B
MOUNTING
[1] Choose the optimal location: sufficient surface area
[2] Needed space for the DIN-rail version
1. Mounted in an electrical cabinet
[3] Mounting of the IB+ 4 DC/E Motor Controller
[4] Use cable tie!
[5] Keep to minimum distance
C
WIRING
[1] Tool for all terminals
[2] Wiring diagram
[3] Check the correct running direction of the end
products
UP: end product moves upward (C +s)
STOP: end product stops (C +t+s)
DOWN: end product moves downward (C +t)
Preset functional mode is DCE!
Maximum running distance: 35 cm
To close window press UP,
to open window press DOWN.
[4] Possible compatible switches
1. Smoove Origin IB, Ref. 1811272
2. Double push button unlocked
D
CONFIGURATION
[1] Reset / Prog button
With this button, you can access/change the basic
configuration of the Motor Controller.
1.
Green LED = RTS Modul
Blinks, when no RTS Modul exists
2.
Yellow LED = Screen Mode
3.
Orange LED = Venetian blind EU Mode
4.
Red LED = Venetian blind US Mode
LED flashes = no running time existing
LED glows = running time stored
[2] Mode selection DC or DCE
Default mode is DCE!
Type of motors which can be controlled are DC or DCE
(if a LW25-E83 motor is used; identifiable at 3 wires).
CABLE
Connection to ...
Motors
Motor Controller Exten-
sions
Switch
IB+ bus
220 - 230 V AC
Cables
Min.: 3 x 0.6 mm/22 AWG
Max.: 3 x 2.5 mm /14 AWG
2
Min.: 2 x 0.25 mm /24 AWG
2
Max.: 2 x 0.75 mm /18 AWG
2
Min.: 3 x 0.6 mm/22 AWG
Max.: 3 x 2.5 mm /14 AWG
2
Min.: 4 x 0.6 mm/22 AWG
Max.: 4 x 1.5 mm /16 AWG
2
Min.: 3 x 1.5 mm /16 AWG
2
Max.: 3 x 2.5 mm /14 AWG
2
1. Entering the programming mode
2. To toggle between modes, quickly press the
Reset/Prog button. Repeat until the LED lights up,
according to the desired configuration.
Using a prohibited functional mode can damage
the motors! The mode is specified for all 4 motor
outputs!
3.
Save and exit
[3] Selection of switch ergonomic
The different ergonomics are described in the manual:
• Screen ergonomic (SCR)
• Venetian blind, European mode (default mode)
• Venetian blind, US mode
1. Entering the programming mode
2. To toggle switch between modes, quickly press
the Reset/Prog button. Repeat until the LED lights
up, according to the desired configuration.
3. Save and exit
[4] Factory RESET
[5] Learn running time/length
1. Drive screen to upper end limit
2. Press Stop until screen drives down on its own
3.
Press Down button 10 cm before lower end limit
is reached
4.
Press Stop when lower end limit is reached
[6] Learn intermediate position (IP)
Driving screen into the desired position
[7] Learn and recall intermediate position (IP)
E
SYMBOLS
[1] Actions
1. Up
2. Stop
3. Down
[2] End product status
1. Up
2. Upper position
3. Down
4. Lower position
5. Stop at the required position
6.
Short up and down movement
7.
Intermediate position (IP)
If you do not use Somfy motors please follow
the additional information in our detailed
installation guide (www.somfy.com).
Twisted pairs
—
Required
Recommended
Recommended
—
animeo IB+ 4 DC/E MOTOR CONTROLLER. REF. 5046344F -
Max. distance
20 m
50 m
100 m
1000 m
