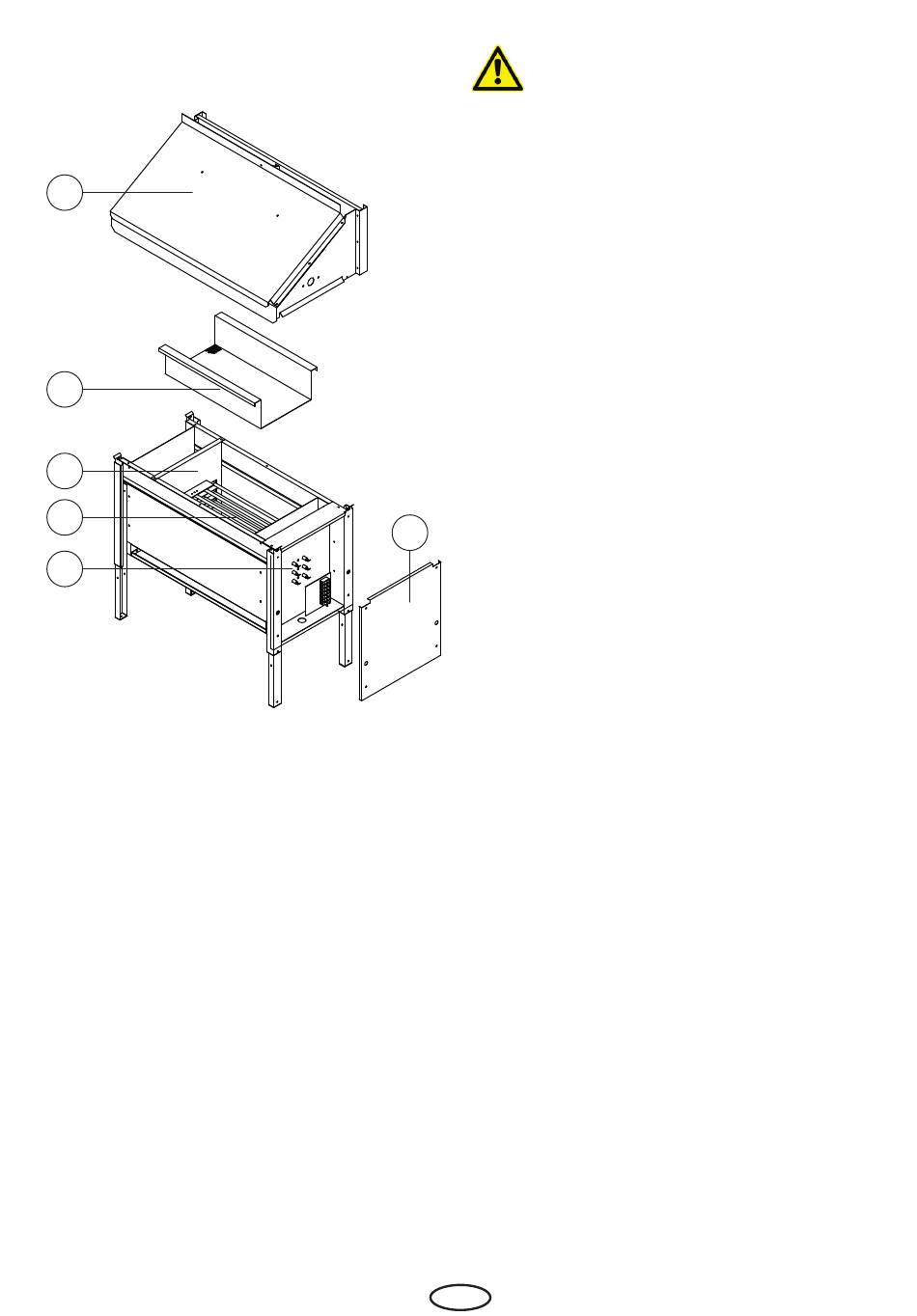

Explosion drawing

1
2
3
4
5
1. Air deflector
2. Rock store
3. Supports for heating elements
4. Heating elements
5. Fastening nuts for heating elements
6. Terminal box cover panel
32
Attention!
The water infusion effect always occurs re-
tarded. For a steam shock effect pour some
water into the funnel with a sauna ladle.
Then, the water is led across the sauna rocks in
the oven by the silicone connecting hose and
evenly distributed over the rocks through the
infusion gutter.
Now the steam will quickly rise with the hot up-
rising air flow and will spread around the sauna
cabin from top down, delivering the famous
„loylu" steam shock effect.
Attention! Do not pour too much water at once.
Be aware that the steam is hot and the steam
shock effect always occurs retarded, which
6
may cause scalding, particularly at the upper
benches.
Remember that the sauna rocks must heat up
again after each infusion in order to produce an
intensive steam. Therefore, wait approximately
8 to 10 minutes for the next infusion.
Always dilute essences with water as advised
Fig. 9
by the manufacturer (check the packaging for
details). Never use pure essences!
