Specifications
Nominal voltage: 400 V AC 3N 50 Hz
Power rating: 6.0 / 9.0 / 12.0 kW
Height: 650 / 710 / 770 mm
Width: 660 mm,
Depth: 380 mm
Rock store volume: 15 kg
Leakage current: max. 0,75 mA per kW power
Intended use: sauna heater for use in domestic
and commercial sauna cabins.
Standard delivery:
1 sauna heater
1 water infusion gutter for sauna heater
1 metal funnel with silicone tube and connector
1 safety grill
4 heater feet
1 polybag with 4 flat-head screws
1 warning shield
1 set of sauna rocks (approx. 15 kg)
6
1

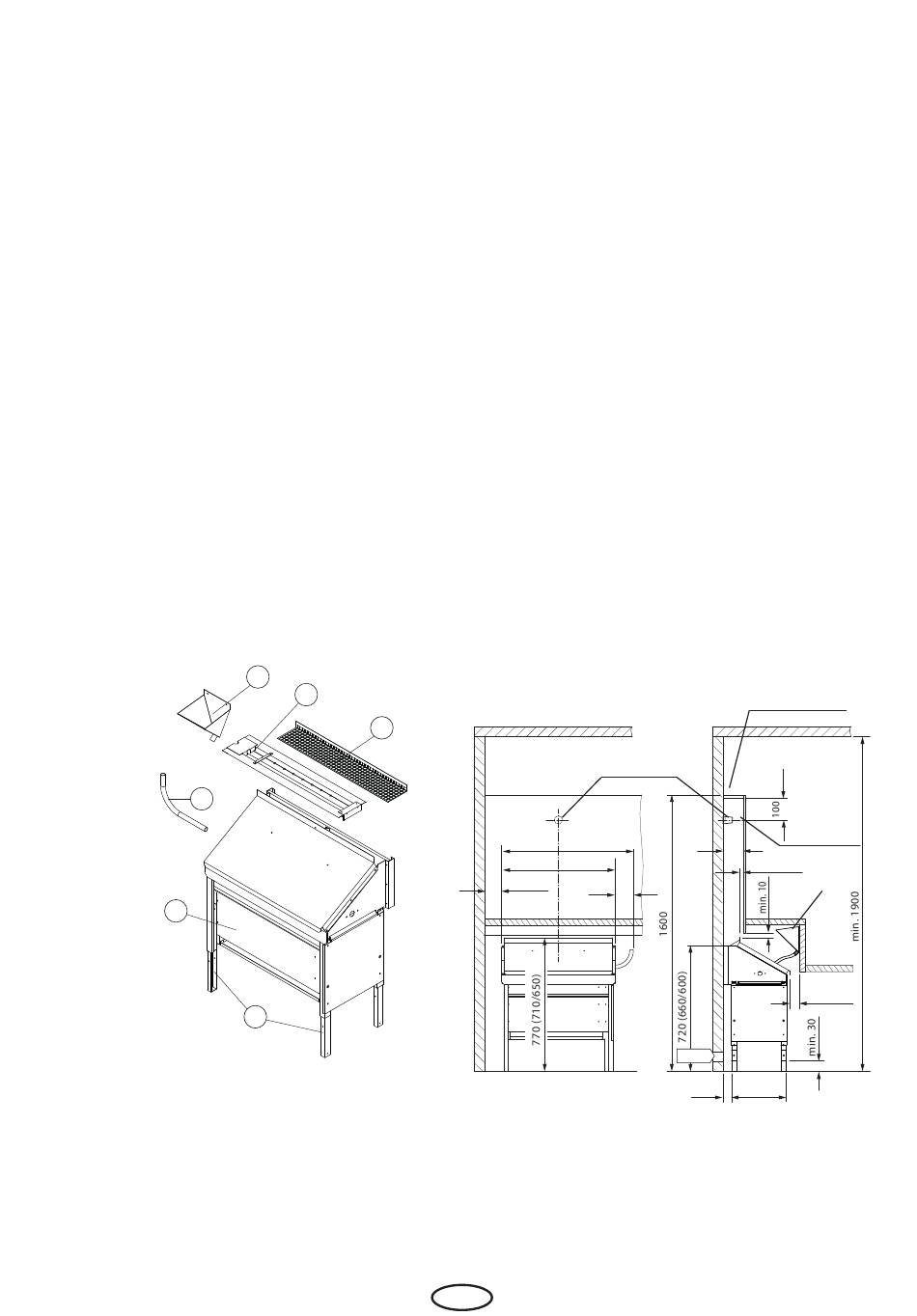

1. Sauna heater
2. Water infusion funnel with silicone hose
3. Adjustable feet
4. Safety grill
5. Water infusion gutter (pre-installed)
6. Connector tube
The sauna heater is designed for use with 400V
3N AC 50Hz power supply and shall be operated
with the appropriate sauna control unit.
2
5
4
3
Minimal clearances
The minimal inner height of the sauna cabin
shall be 1,90 m.
The horizontal gap between the sauna heater
and the cabin wall must be at least 4 cm.
The distance between partition wall or sauna
bench or other flammable materials and the
sauna heater shall be as shown below on Fig. 1.
The supplied safety grill shall be mounted along
the top edge of the partition wall between this
partition wall and sauna wall (Fig. 1). This shall
prevent that an object may be accidentally
dropped on the sauna heater.
Contradictory to the advice concerning the
mounting of the sensor of your sauna con-
trol unit, the temperature sensor shall not
be mounted on the ceiling above the sauna
heater but on the side wall as shown in the
diagram (Fig. 1).
Installation example (side view)
temperature sensor
740
660
min. 40
80
sizes in mm
Height values given in brackets indicate the possible heights
after the height adjustment.
GB
safety grill
screen wall
105
min. 10
funnel
min. 30
Invisio
Mini
Intake
45
315
Fig. 1
27
