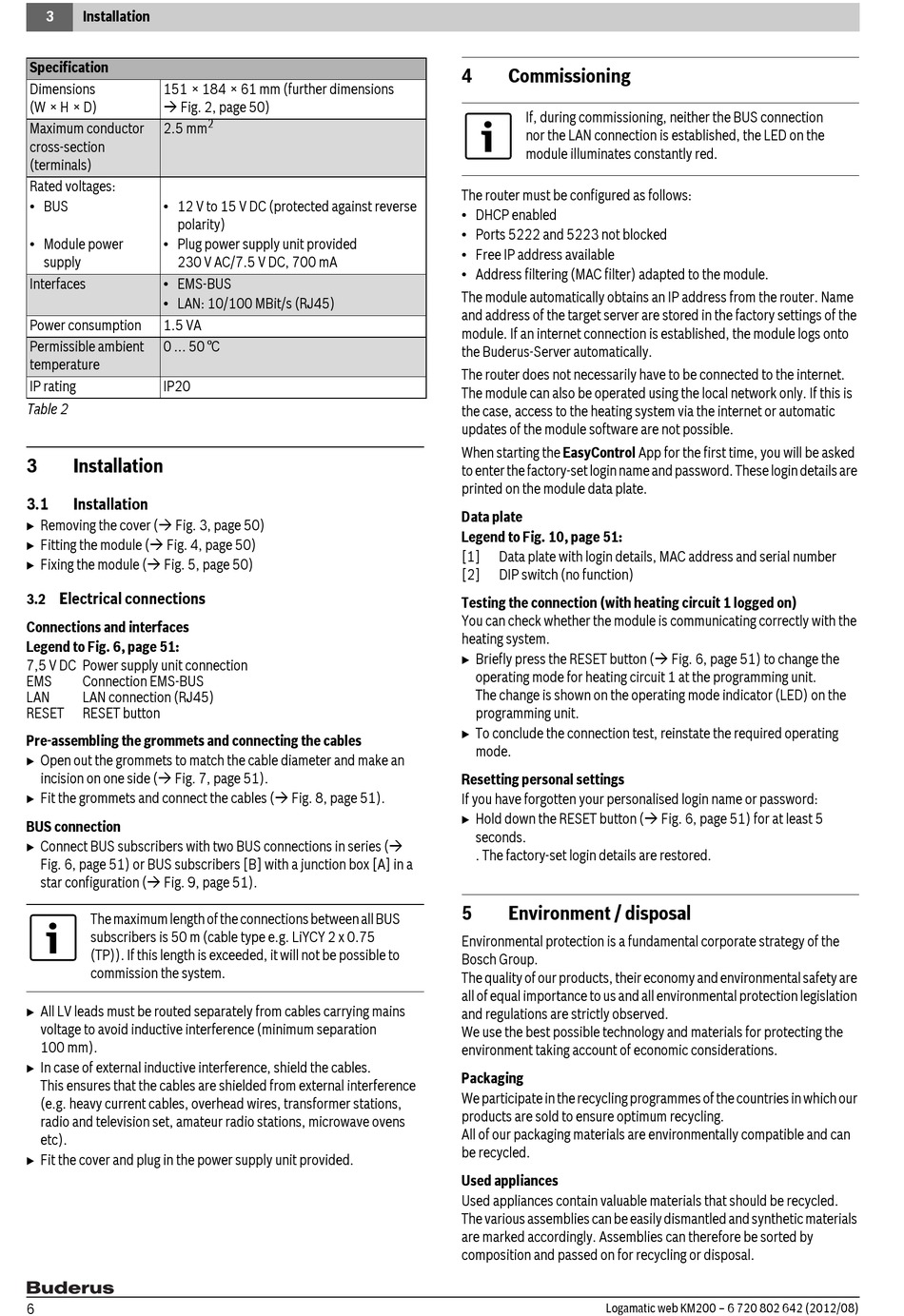

Installation

Specification
Dimensions 151 × 184 × 61 mm (further dimensions
(W × H × D) Fig. 2, page 50)
Maximum conductor 2.5 mm
cross-section
(terminals)
Rated voltages:
• BUS • 12 V to 15 V DC (protected against reverse
polarity)
• Module power • Plug power supply unit provided
supply 230 V AC/7.5 V DC, 700 mA
Interfaces • EMS-BUS
• LAN: 10/100 MBit/s (RJ45)
Power consumption 1.5 VA
Permissible ambient 0 ... 50 °C
temperature
IP rating IP20
Table 2
3 Installation
3.1 Installation
B Removing the cover ( Fig. 3, page 50)
B Fitting the module ( Fig. 4, page 50)
B Fixing the module ( Fig. 5, page 50)
Electrical connections
3.2
Connections and interfaces
Legend to Fig. 6, page 51:
7,5 V DC Power supply unit connection
EMS Connection EMS-BUS
LAN LAN connection (RJ45)
RESET RESET button
Pre-assembling the grommets and connecting the cables
B Open out the grommets to match the cable diameter and make an
incision on one side ( Fig. 7, page 51).
B Fit the grommets and connect the cables (
BUS connection
B Connect BUS subscribers with two BUS connections in series (
Fig. 6, page 51) or BUS subscribers [B] with a junction box [A] in a
star configuration ( Fig. 9, page 51).
The maximum length of the connections between all BUS
subscribers is 50 m (cable type e.g. LiYCY 2 x 0.75
(TP)). If this length is exceeded, it will not be possible to
commission the system.
B All LV leads must be routed separately from cables carrying mains
voltage to avoid inductive interference (minimum separation
100 mm).
B In case of external inductive interference, shield the cables.
This ensures that the cables are shielded from external interference
(e.g. heavy current cables, overhead wires, transformer stations,
radio and television set, amateur radio stations, microwave ovens
etc).
B Fit the cover and plug in the power supply unit provided.
6
2
Fig. 8, page 51).
4 Commissioning
If, during commissioning, neither the BUS connection
nor the LAN connection is established, the LED on the
module illuminates constantly red.
The router must be configured as follows:
• DHCP enabled
• Ports 5222 and 5223 not blocked
• Free IP address available
• Address filtering (MAC filter) adapted to the module.
The module automatically obtains an IP address from the router. Name
and address of the target server are stored in the factory settings of the
module. If an internet connection is established, the module logs onto
the Buderus-Server automatically.
The router does not necessarily have to be connected to the internet.
The module can also be operated using the local network only. If this is
the case, access to the heating system via the internet or automatic
updates of the module software are not possible.
When starting the EasyControl App for the first time, you will be asked
to enter the factory-set login name and password. These login details are
printed on the module data plate.
Data plate
Legend to Fig. 10, page 51:
[1] Data plate with login details, MAC address and serial number
[2] DIP switch (no function)
Testing the connection (with heating circuit 1 logged on)
You can check whether the module is communicating correctly with the
heating system.
B Briefly press the RESET button (
operating mode for heating circuit 1 at the programming unit.
The change is shown on the operating mode indicator (LED) on the
programming unit.
B To conclude the connection test, reinstate the required operating
mode.
Resetting personal settings
If you have forgotten your personalised login name or password:
B Hold down the RESET button (
seconds.
. The factory-set login details are restored.
5

Environment / disposal

Environmental protection is a fundamental corporate strategy of the
Bosch Group.
The quality of our products, their economy and environmental safety are
all of equal importance to us and all environmental protection legislation
and regulations are strictly observed.
We use the best possible technology and materials for protecting the
environment taking account of economic considerations.
Packaging
We participate in the recycling programmes of the countries in which our
products are sold to ensure optimum recycling.
All of our packaging materials are environmentally compatible and can
be recycled.
Used appliances
Used appliances contain valuable materials that should be recycled.
The various assemblies can be easily dismantled and synthetic materials
are marked accordingly. Assemblies can therefore be sorted by
composition and passed on for recycling or disposal.
