Accessories; Maintenance; Warranty - oventrop Hydrocontrol STR Einbau- Und Betriebsanleitung

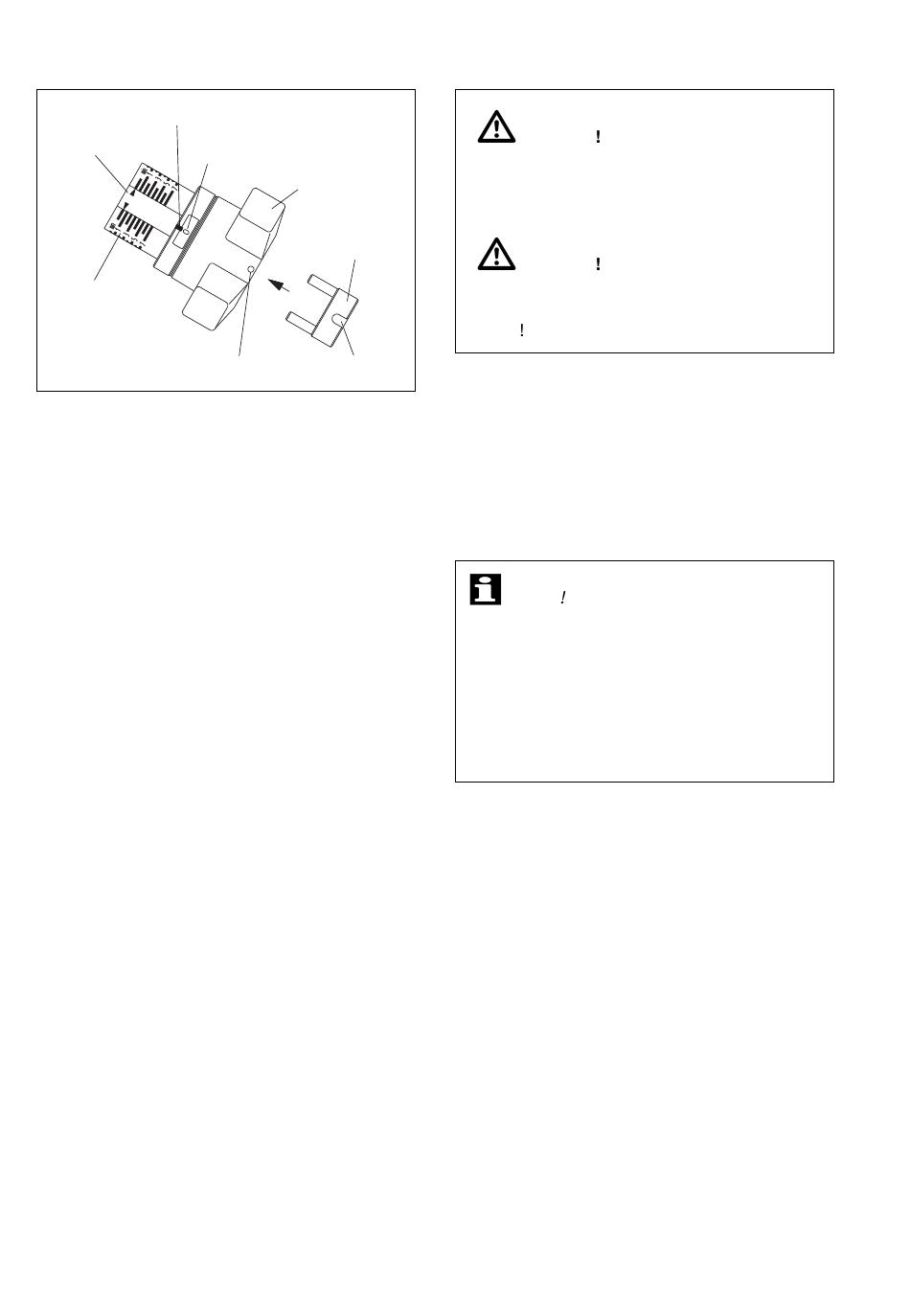

Marking
Sliding
indicator
Basic setting
scale (longitudinal)
Hole for
sealing wire
7.3. Visibility/Readability of the setting scales:
Depending on the installation position of the
"Hydrocontrol STR", an improvement of the visi-
bility/readability of the setting scales is possible
by twisting the scales round.
With the valve fully closed and Basic setting scale
on 'min' and Fine setting scale on '0', remove the
cover plug, undo the screw and with a light tug
pull the handwheel from the valve spindle. Next,
without altering the presetting ('min' and '0'),
adjust the position of the handwheel so that the
indicator window of the peripheral scale is clearly
visible. Finally refit the handwheel to the valve
stem, tighten the screw and replace the cover
plug.
7.4. Hydronic balancing with the help of meas-
uring gauges
Hydronic balancing of the individual solar collectors
can be carried out with the help of the flow-meter
"OV-DMC 2" or the measuring system "OV-DMPC"
when the collectors are covered or at low fluid
temperatures.
8
Fine setting scale
(peripheral)
Handwheel
Locking Cap
Hole for
sealing wire
DANGER Hot surfaces.
The double regulating and commissioning
valve can get very hot during operation. Do
not touch without safety gloves.
DANGER Hot fluid.
Small quantities of hot fluid may escape when
loosening the quick couplings. Wear safety
gloves
7.5. Correction factors for water and glycol
mixtures
The correction factors of the antifreeze liquid man-
ufacturers have to be taken into consideration
when calculating the presetting values and when
measuring with the flow-meter.

8. Accessories

NOTE
– A lead locking set is available to lead lock
the presetting during working conditions.
– Oventrop compression fittings "Regusol"
are available for the integration of the valve.
– For differential pressure measurement Oven-
trop offers measuring gauges for hydronic
balancing.
The accessories can be found in the catalogue
"Products".

9. Maintenance

The valve is maintenance-free.

10. Warranty

Oventrops warranty conditions valid at the time
of supply are applicable.
