DESCRIPTION OF THE DEVICE

Features

Compact LED color changing bar with 16 x 8 W quadcolor LEDs
• Equipped with sixteen 4in1 LEDs in the colors red, green, blue and white
• Particularly bright illuminating power of the LEDs
• 4, 6, 7, 11, 19, 64, 67 DMX channels selectable for various applications
• Each LED can be controlled individually
• Programmable color change speed, strobe effect and dimmer
• Strobe effect with 1-18 flashes per second
• RGBW color mixing
• Static colors
• Internal programs
• DMX-controlled operation or stand-alone operation with Master/Slave function
• Manual, sound or DMX-controlled operation
• For large stage backgrounds in public places, main halls and lounges
• Hanging as well as standing installation possible
• Locking possibility at the mounting bracket
• Sound-controlled via built-in microphone
• Addressing via control panel with LCD screen
• Ready for connection with power-cable and plug
• Feed-through output allows to power another device
• After every 8 devices the fixtures must have a renewed connection with the power mains
• DMX512 control possible via any commercial DMX controller

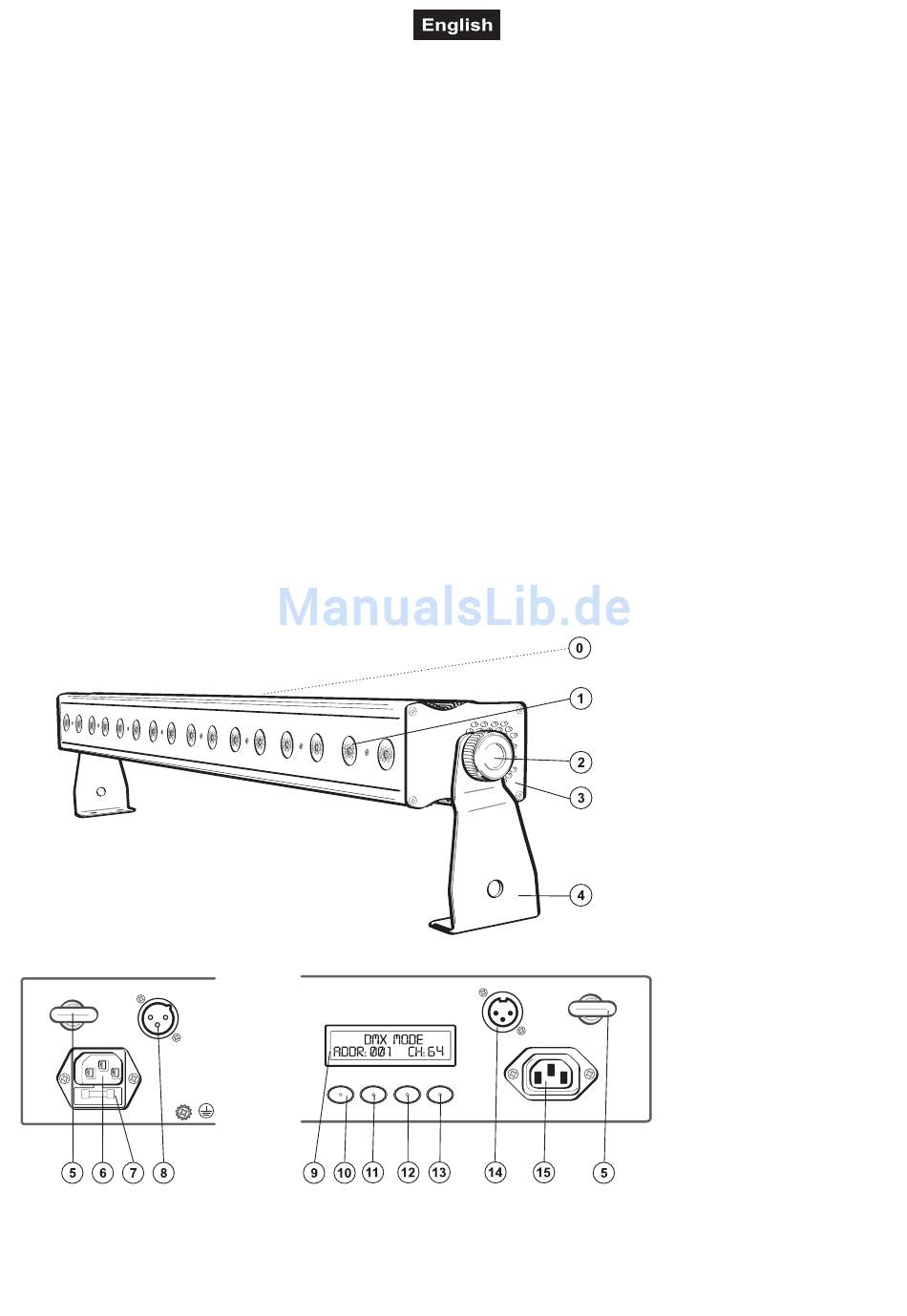

Overview

21/32
(0) Mounting bracket
(1) QCL LEDs
(2) Fixation screw
(3) Housing
(4) Floor-stand
(5) Attachment eyelet
(6) Power input
(7) Fuseholder
(8) DMX-In socket
(9) Display
(10) Mode button
(11) Enter button
(12) Up button
(13) Down button
(14) DMX-Out socket
(15) Power output
