AXIS Q3505-SVE Mk II Fixed Dome Network Camera
Technical specifications

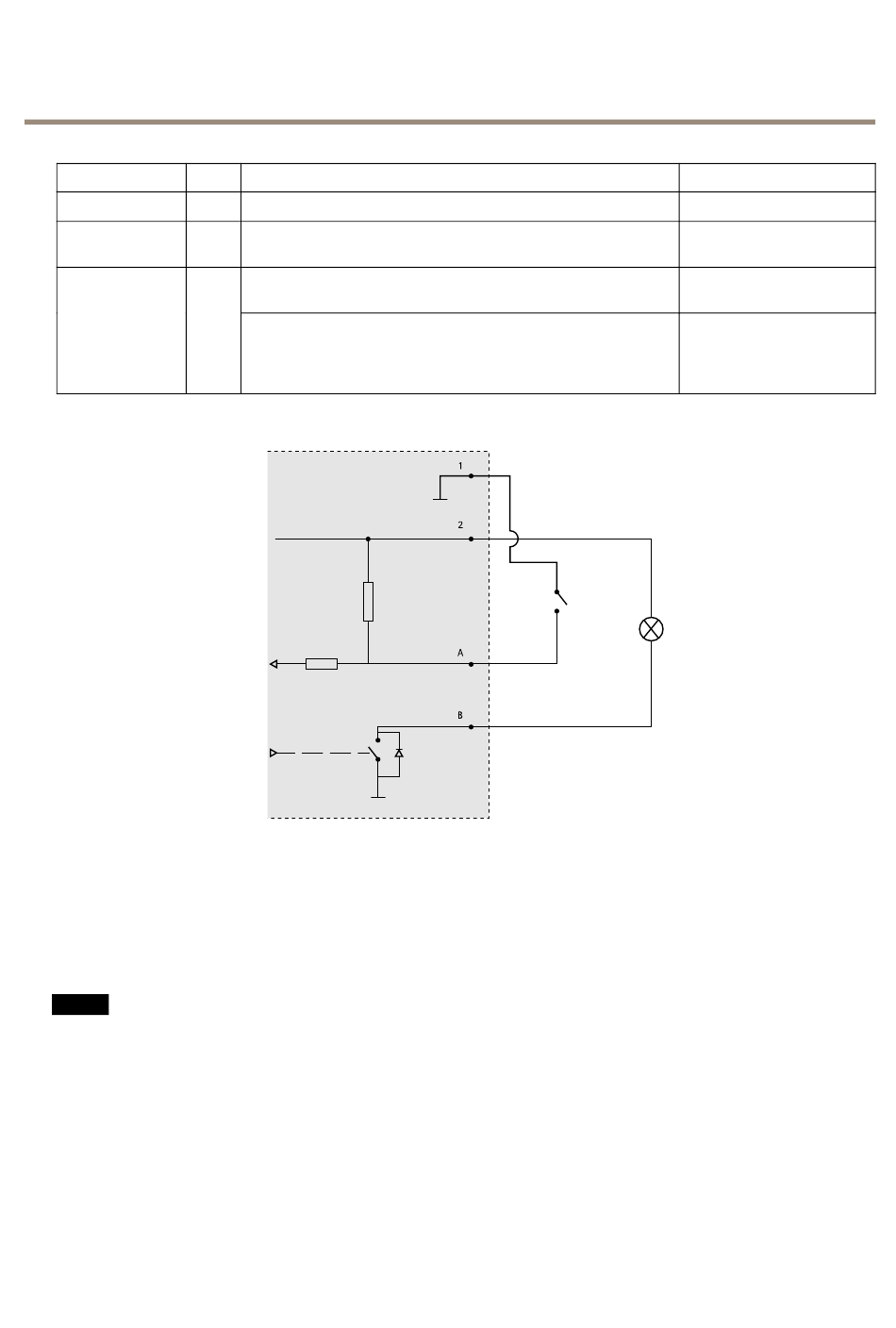

Function
0 V DC (-)
DC output
Configurable
(Input or Output)
1
0 V DC (-)
2
DC output 12 V, max 50 mA
A
I/O configured as input
B
I/O configured as output

Network connector

RJ45 Ethernet connector with Power over Ethernet (PoE).
NO NOTICE NO TICE TICE
The product shall be connected using a shielded network cable (STP). All cables connecting the product to the network shall
be intended for their specific use. Make sure that the network devices are installed in accordance with the manufacturer's
instructions. For information about regulatory requirements, see Electromagnetic Compatibility (EMC) on page 2 .
Multicable (sold separately)
The multicable can be purchased from an Axis reseller for connecting external equipment to the Axis product. The cable provides the
following connectors:
I/O connector - See Connectors on page 72.
Audio connector - See Connectors on page 72.
Pin Notes
1
DC ground
2
Can be used to power auxiliary equipment.
Note: This pin can only be used as power out.
3–4
Digital input – Connect to pin 1 to activate, or leave floating
(unconnected) to deactivate.
Digital output – Connected to pin 1 when activated, floating
(unconnected) when deactivated. If used with an inductive load, e.g.
a relay, a diode must be connected in parallel with the load, for
protection against voltage transients.
73
Specifications
0 V DC
12 V DC
Max load = 50 mA
0 to max 30 V DC
0 to max 30 V DC, open drain,
100 mA
